Front Power Seat Control System (Diagnostics & Circuit Tests)
>>
Front Power Seat Control System
>>
Circuit Tests
>>
Front Passenger Side Seat Memory Switch Circuit [09/2013 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Front Passenger Side Seat Memory Switch Circuit [09/2013 - ]: Wiring Diagram

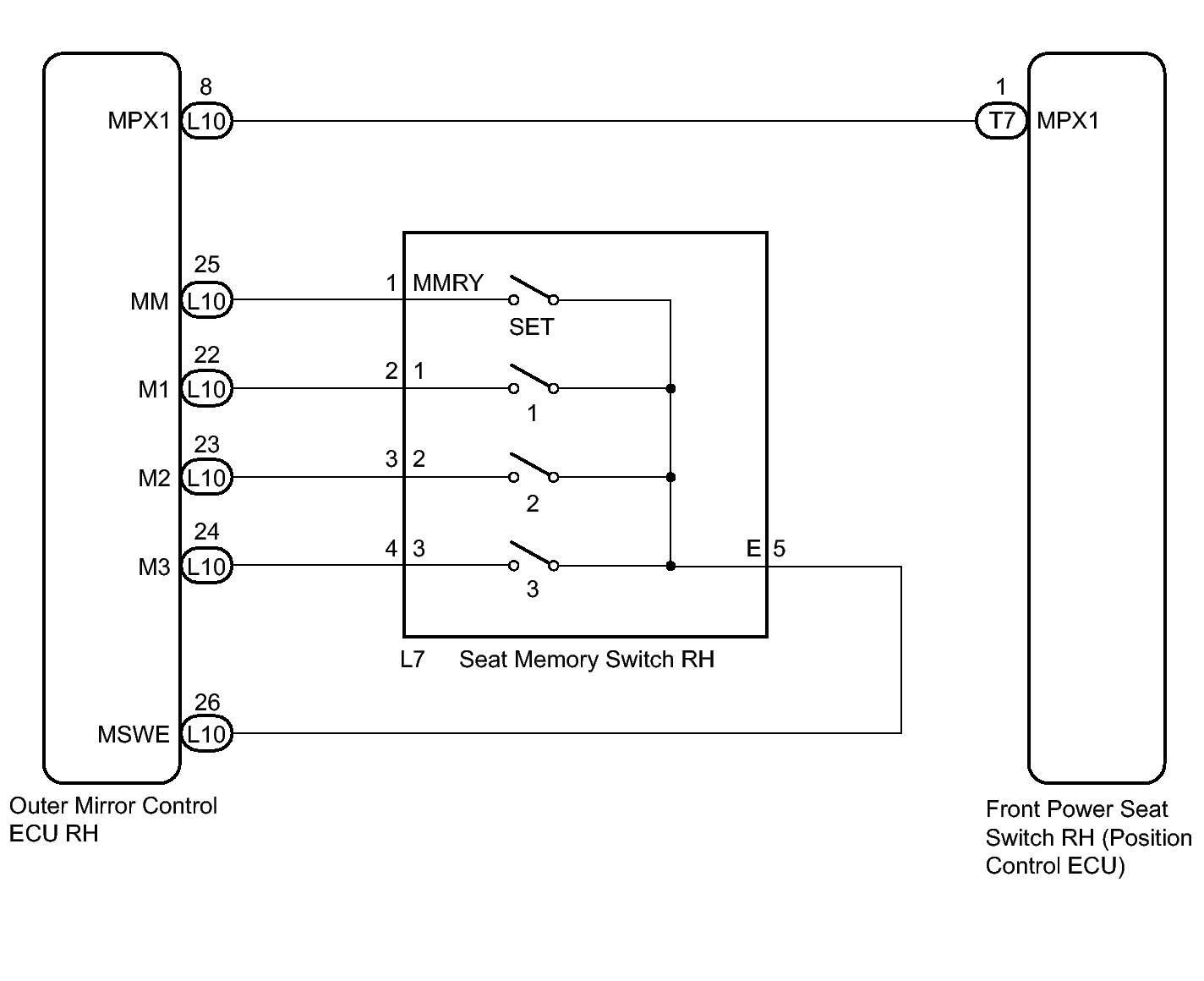

Fig 1: Front Passenger Side Seat Memory Switch Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
