Operation Check [09/2013 - ]

INPUT SIGNAL CHECK
1. Connect the Techstream to the DLC3.

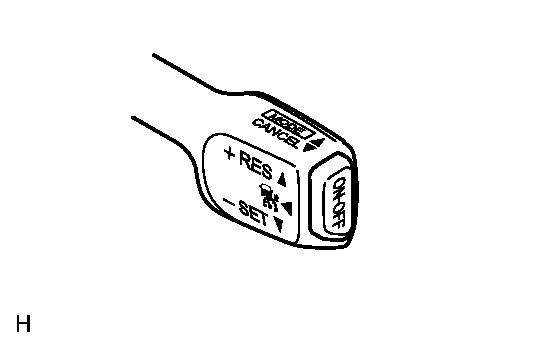

  Fig 1: Identifying Cruise Control Main Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the cruise control switch (ON-OFF, CANCEL, SET/COAST, RES/ACC, and MODE) using the DATA LIST function in the Techstream.
INSPECT MODE SWITCH
1. Turn the engine switch on (IG).

  Fig 2: Inspecting Mode Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the cruise control switch ON. Then push the cruise control switch to MODE for 1 second or more to change to constant speed control mode. Check that "NORM" is indicated on the multi-information display and "SET" is indicated on the combination meter.

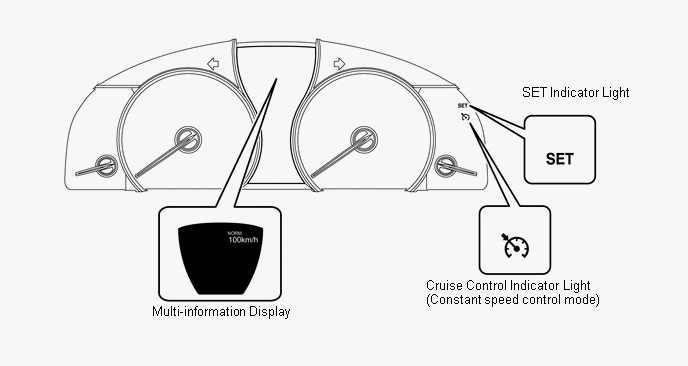

  Fig 3: Identifying Cruise Control And SET Indicator Lights
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not push any other switches before pushing the cruise control switch to MODE. If another switch is pushed, turn the main switch OFF and repeat the procedure above.

  HINT:

  If a malfunction is detected, turn the engine switch off and repeat the procedure above.
INSPECT STEERING PAD SWITCH
1. Turn the engine switch on (IG).
2. Turn the cruise control switch ON. Then push the cruise control switch to MODE for 1 second or more to change to vehicle-to-vehicle distance control mode. Check that "RADAR READY" is indicated on the multi-information display.
3. Turn on the distance control switch of the steering pad switch.
4. Check that the indication of the vehicle-to-vehicle distance, which is shown in the multi-information display on the combination meter, changes from long to medium to short in that order.

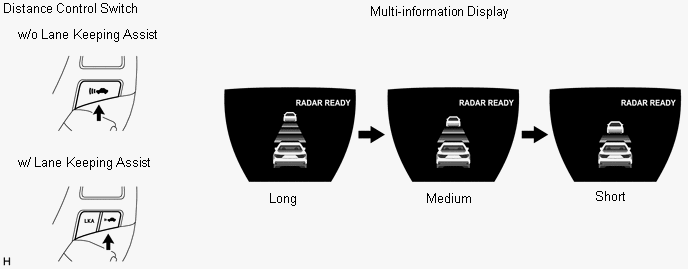

  Fig 4: Inspecting Vehicle To Vehicle Distance Control Mode
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  The indication is automatically set to long each time the engine is started.
