System Diagram [09/2013 - ]

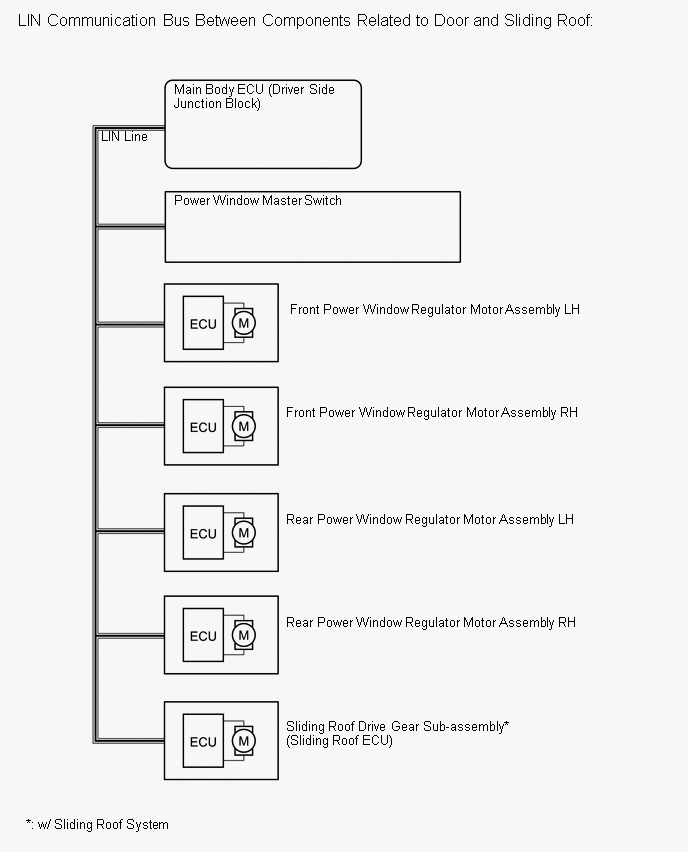

Fig 1: LIN Communication System Diagram (1 Of 9)

GTY412339

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

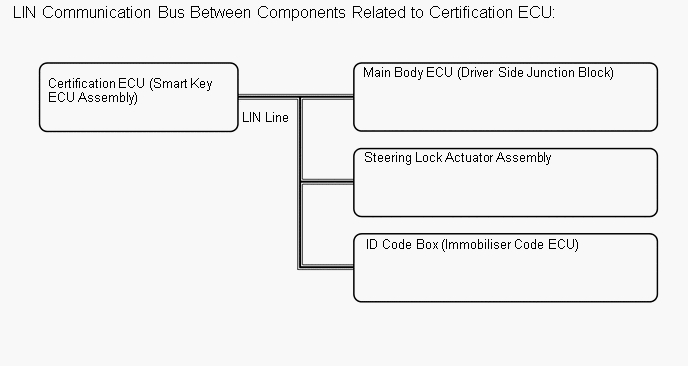

Fig 2: LIN Communication System Diagram (2 Of 9)

GTY398764

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

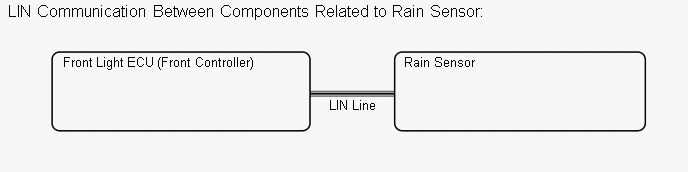

Fig 3: LIN Communication System Diagram (3 Of 9)

GTY280143

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

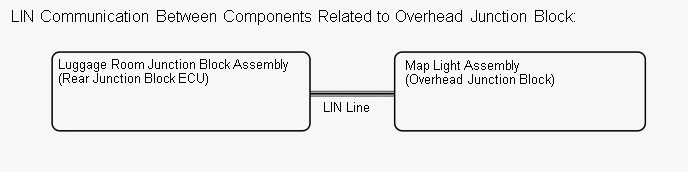

Fig 4: LIN Communication System Diagram (4 Of 9)

GTY140444

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

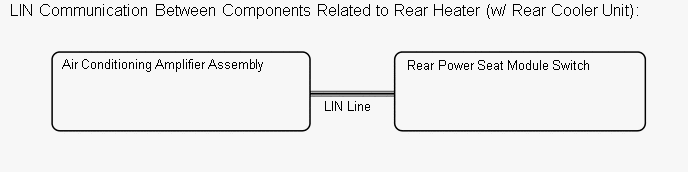

Fig 5: LIN Communication System Diagram (5 Of 9)

GTY117077

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

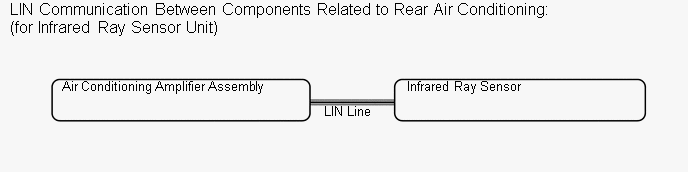

Fig 6: LIN Communication System Diagram (6 Of 9)

GTY285540

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

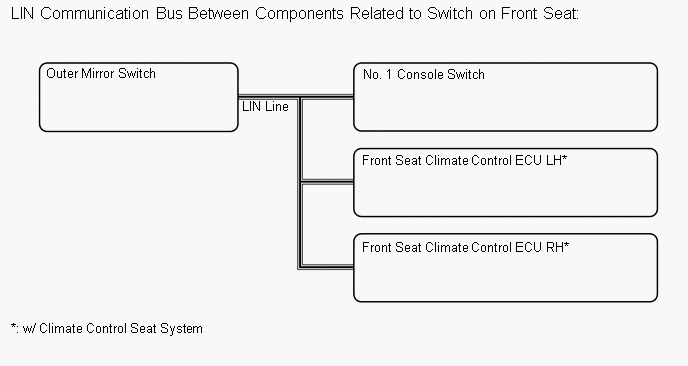

Fig 7: LIN Communication System Diagram (7 Of 9)

GTY117548

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

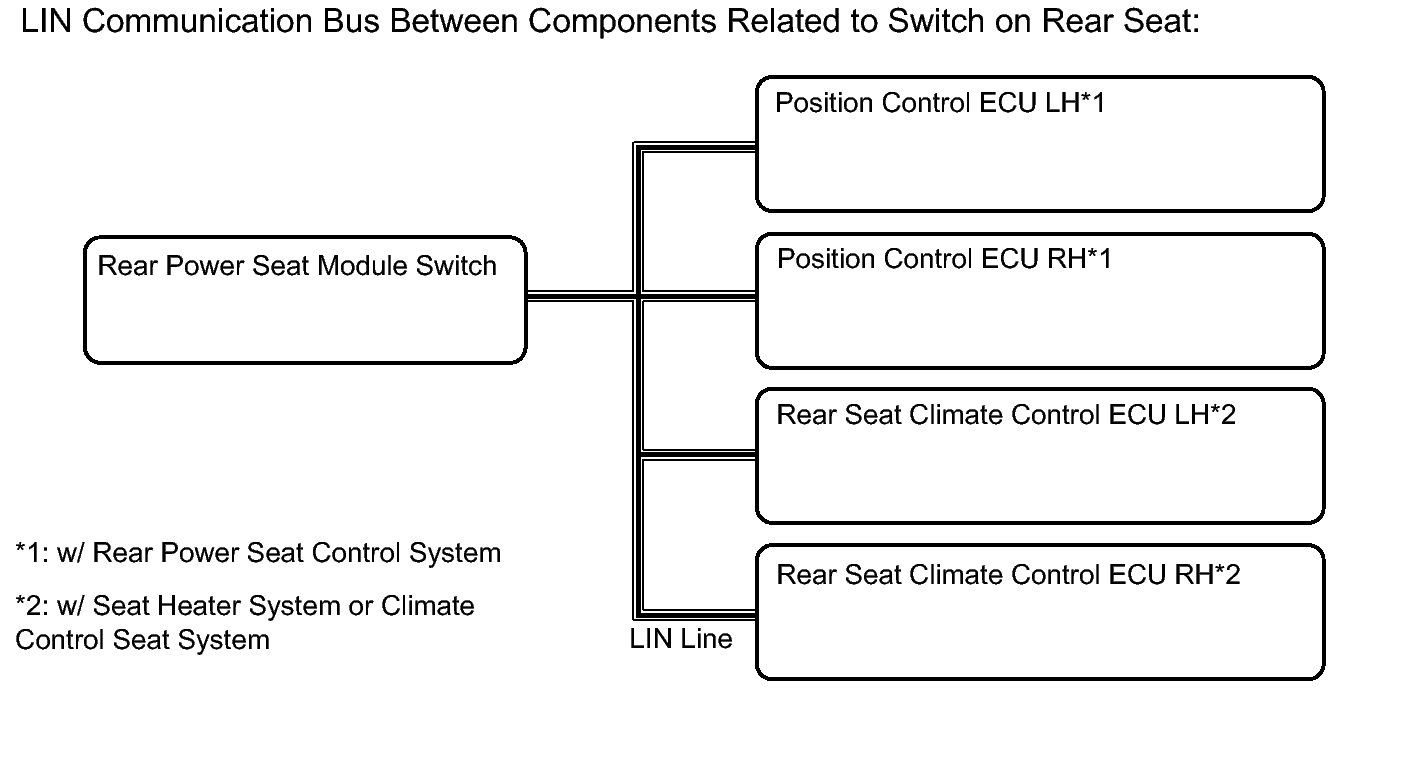

Fig 8: LIN Communication System Diagram (8 Of 9)

GTY272277

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

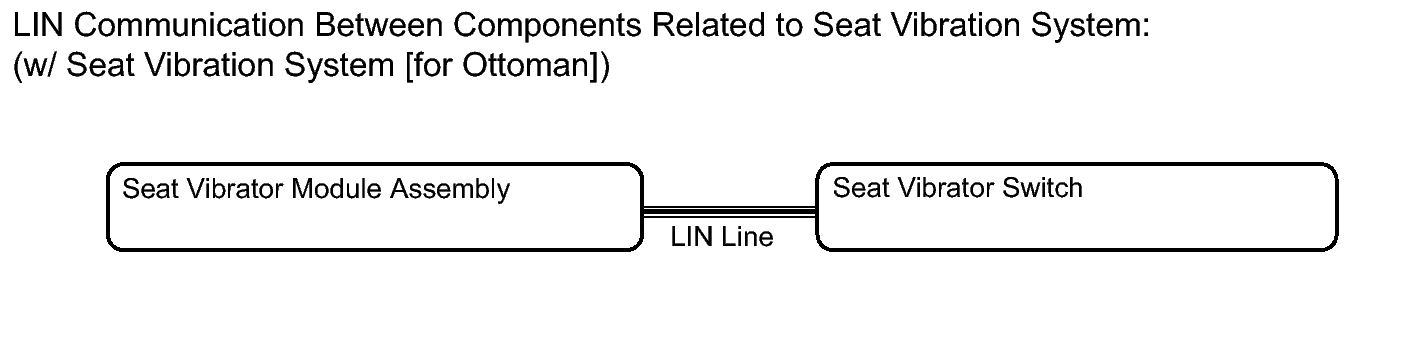

Fig 9: LIN Communication System Diagram (9 Of 9)

GTY400967

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
