DTC B22BB: Communication Error with Brake System Control Module (Vehicle Speed Data) [09/2013 - ]: Wiring Diagram

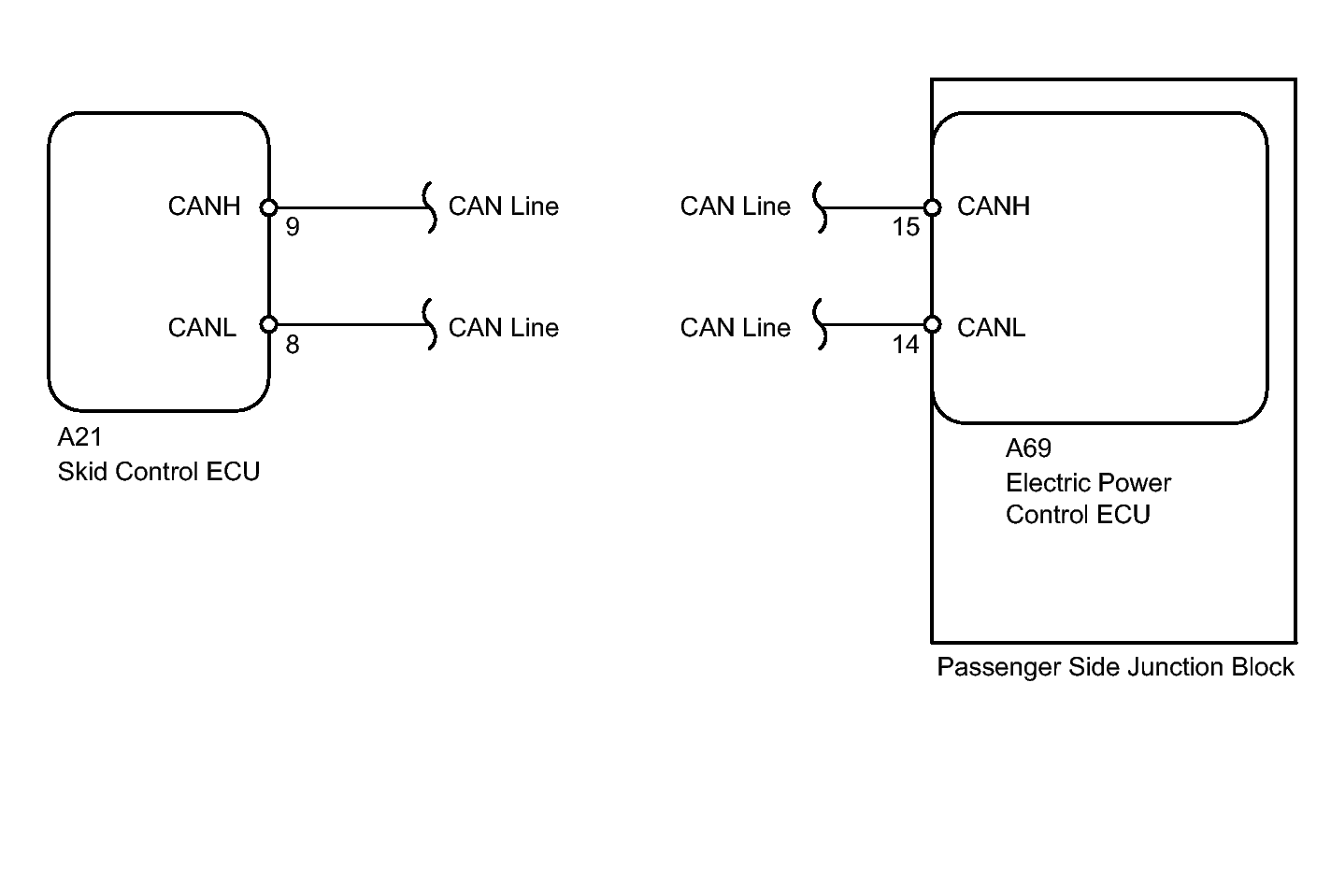

Fig 1: Skid Control ECU Wiring Diagram
GTY288795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
