Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [09/2013 - ]: Procedure

1. Check for LIN communication system DTCs related to the power window control system.
   RESULT:



   Result	Proceed to
   DTC is not output	A
   DTC is output	B

B → See step   11

A: Go to next step

1. Check if DTC B2312 is output.
   RESULT:



   Result	Proceed to
   B2312 is not output	A
   B2312 is output	B

B → See step   9

A: Go to next step

1. Use the Data List to check if the power window regulator motor is functioning properly.
   P-DOOR MOTOR:



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   P Door P/W Up SW	Front passenger side power window manual UP switch signal / ON or OFF	ON: Front passenger side power window manual UP switch operated OFF: Front passenger side power window switch not operated	-
   P Door P/W Down SW	Front passenger side power window manual DOWN switch signal / ON or OFF	ON: Front passenger side power window manual DOWN switch operated OFF: Front passenger side power window switch not operated	-

   OK

   Tester display changes normally when front passenger side power window switch is operated.

NG → See step   4

OK → See step   8

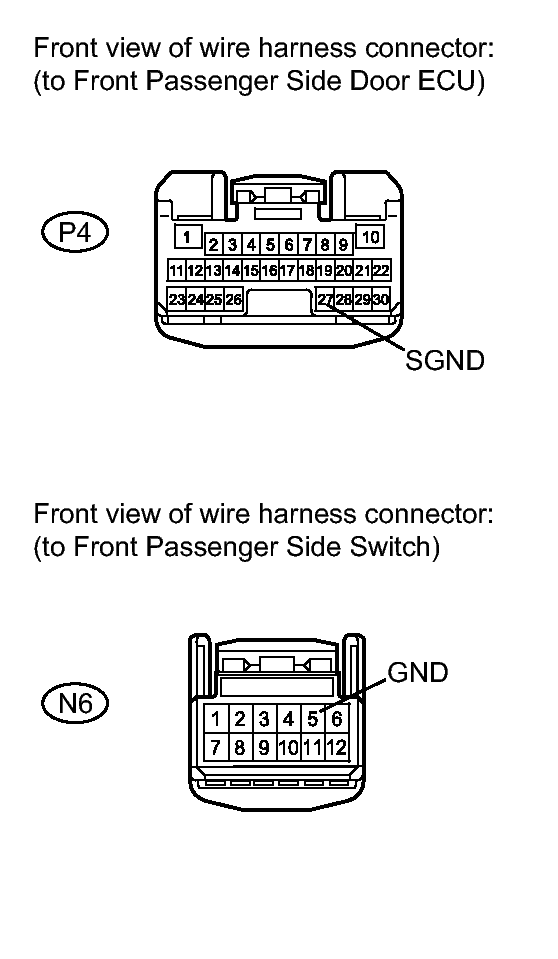

1. Disconnect the P4 ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the N6 switch connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   P4-27 (SGND) - N6-5 (GND)	Always	Below 1 Ω
   P4-27 (SGND) or N6-5 (GND) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

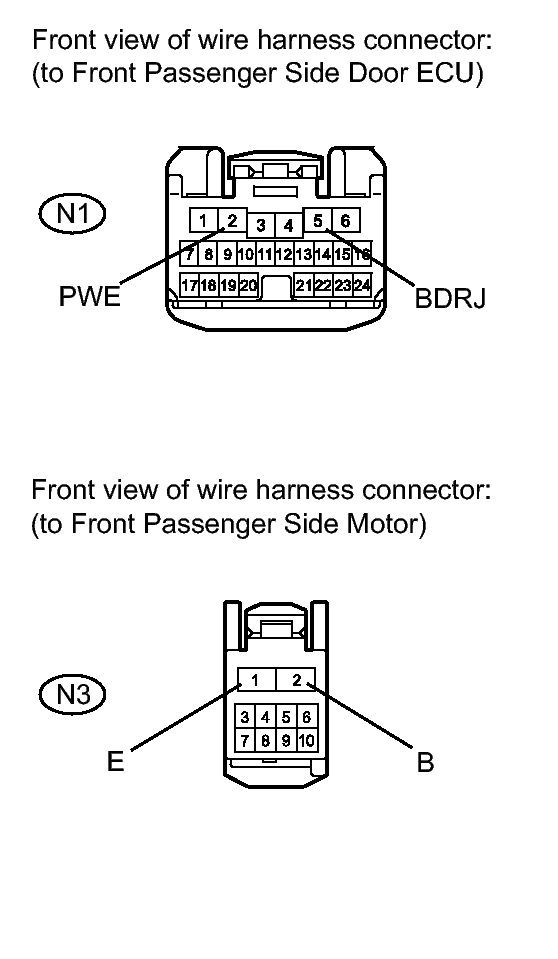

1. Disconnect the N1 ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the N3 motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   N1-5 (BDRJ) - N3-2 (B)	Always	Below 1 Ω
   N1-2 (PWE) - N3-1 (E)	Always	Below 1 Ω
   N1-5 (BDRJ) or N3-2 (B) - Body ground	Always	10 kΩ or higher
   N1-2 (PWE) or N3-1 (E) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

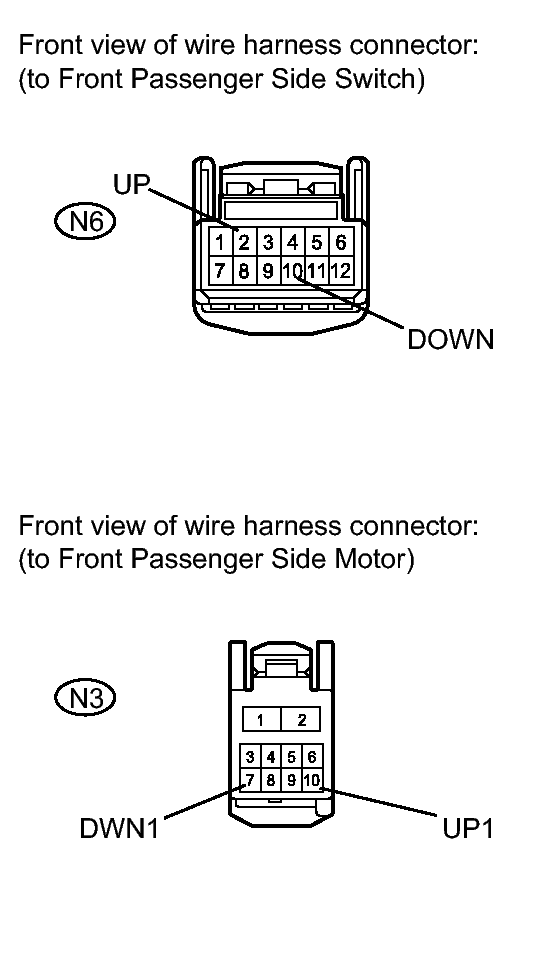

1. Disconnect the N6 switch connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the N3 motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   N6-2 (UP) - N3-10 (UP1)	Always	Below 1 Ω
   N6-10 (DOWN) - N3-7 (DWN1)	Always	Below 1 Ω
   N6-2 (UP) or N3-10 (UP1) - Body ground	Always	10 kΩ or higher
   N6-10 (DOWN) or N3-7 (DWN1) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

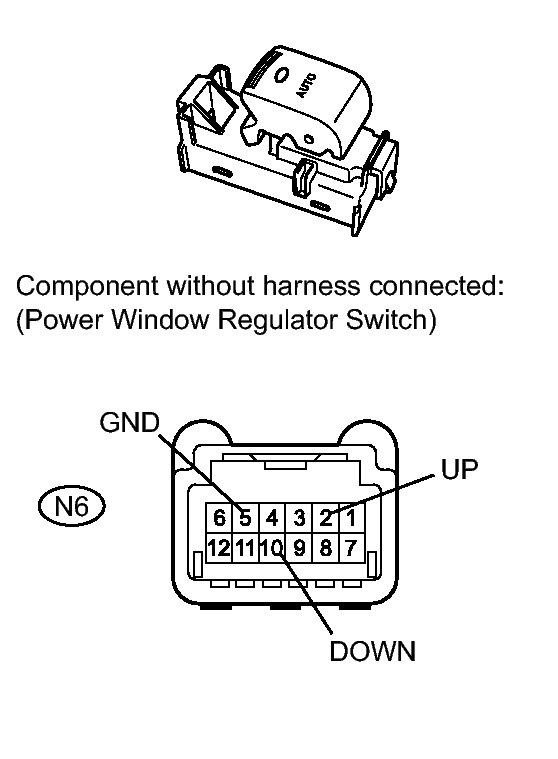

1. Remove the switch. Refer to REMOVAL [09/2013 - ] .
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   N6-2 (UP) - N6-5 (GND)	Manual UP operation	Below 1 Ω
   N6-10 (DOWN) - N6-5 (GND)	Manual DOWN operation	Below 1 Ω

NG → See step   10

OK → See step   8
