Rear Power Window RH Auto Up / Down Function does not Operate with Rear Power Window Switch RH [09/2013 - ]: Procedure

1. Check for DTCs.
   RESULT:



   Result	Proceed to
   DTC is not output	A
   B2311 is output	B
   B2312 is output	C
   B2313 is output	D
   LIN communication system DTC output reoccur	E

B → See step   10

C → See step   7

D → See step   8

E → See step   11

A: Go to next step

1. Check that the manual UP/DOWN function using the power window regulator switch can operate the driver door power window.

   OK

   Manual UP/DOWN function operates normally.

NG → See step   12

OK: Go to next step

1. Use the Data List to check if the power window regulator motor is functioning properly.
   RR-DOOR MOTOR:



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   RR Door P/W Auto SW	Rear power window RH auto UP/DOWN switch signal / ON or OFF	ON: Rear power window RH auto UP/DOWN switch operated OFF: Rear power window RH switch not operated	-

   OK

   Tester display changes normally when rear power window switch RH is operated.

NG → See step   4

OK → See step   6

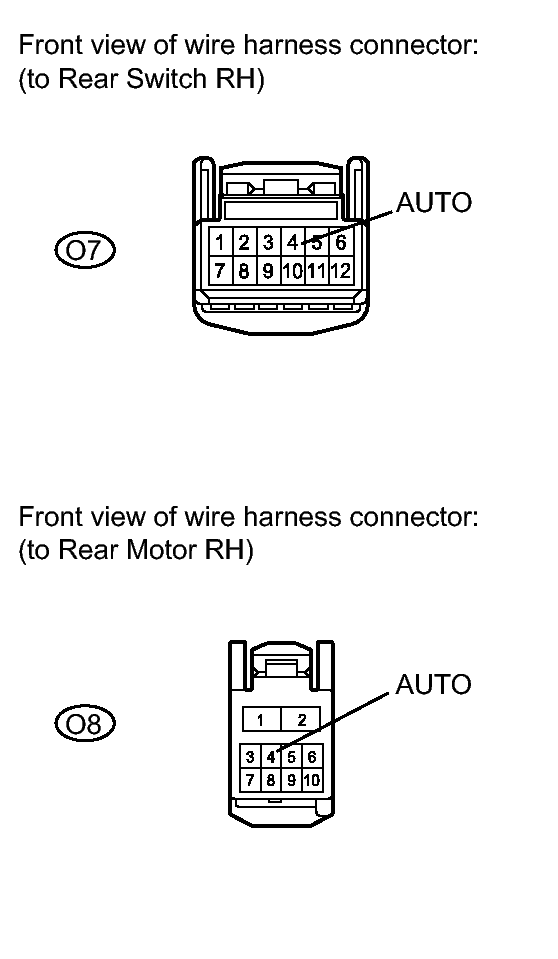

1. Disconnect the O7 switch connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the O8 motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O7-4 (AUTO) - O8-4 (AUTO)	Always	Below 1 Ω
   O7-4 (AUTO) or O8-4 (AUTO) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

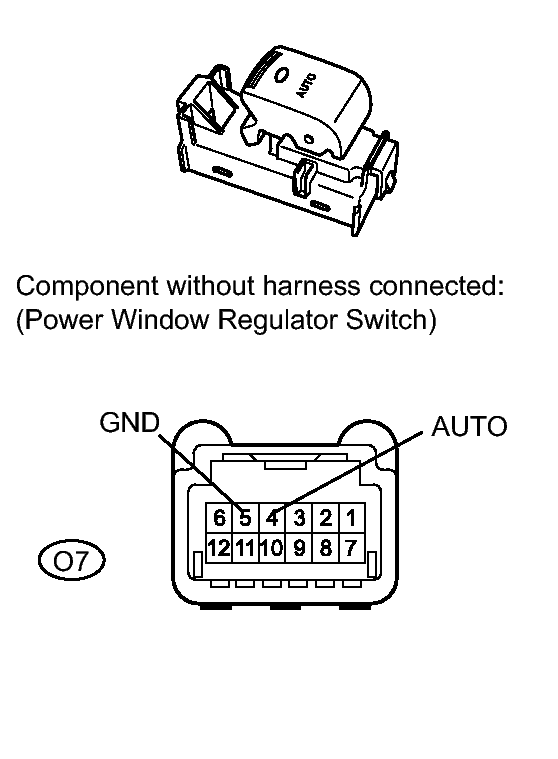

1. Remove the switch. Refer to REMOVAL [09/2013 - ] .
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   O7-4 (AUTO) - O7-5 (GND)	AUTO UP/DOWN operation	Below 1 Ω

NG → See step   9

OK → See step   6
