Components [08/2013 - ]: Illustration

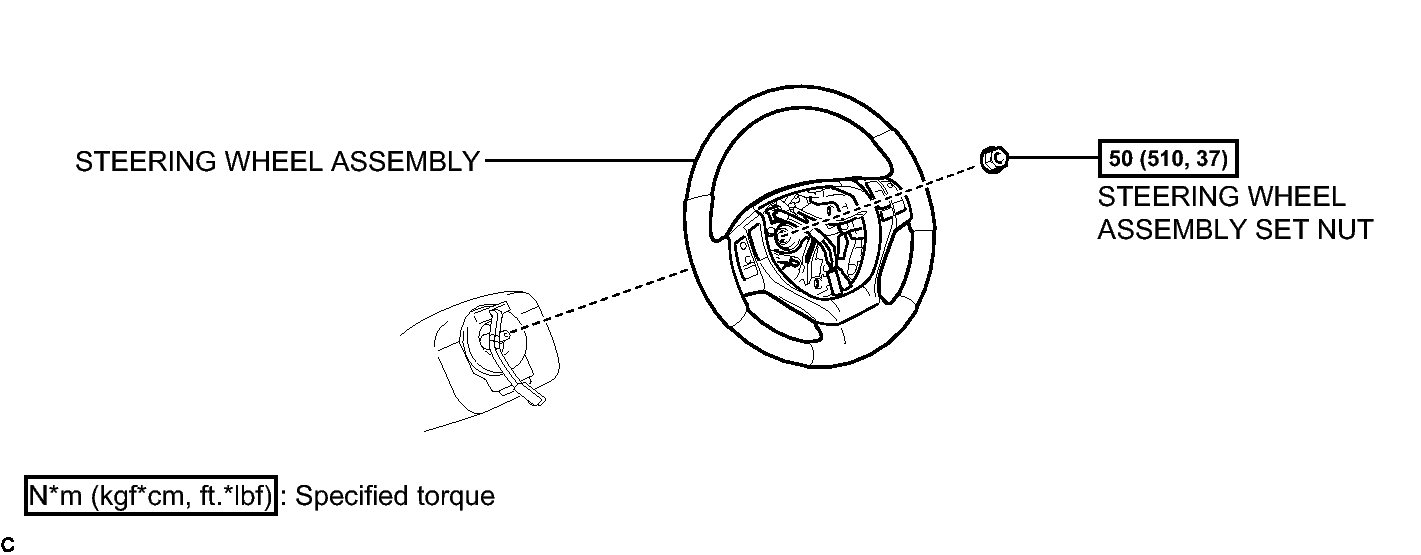

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (1 Of 4)
GTY405473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

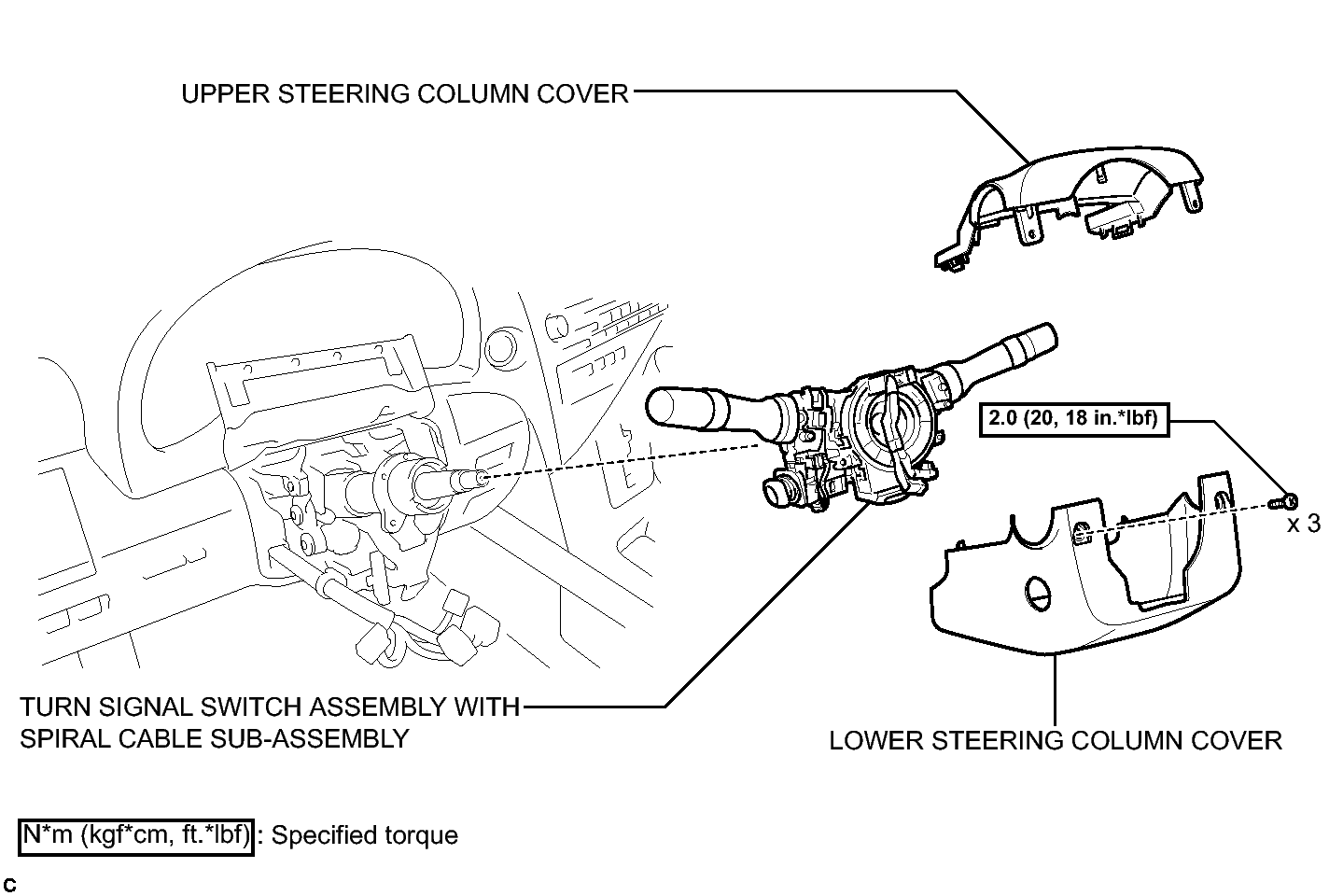

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (2 Of 4)
GTY396438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (3 Of 4)
GTY287037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (4 Of 4)
GTY281970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
