System Diagram [06/2016 - ]

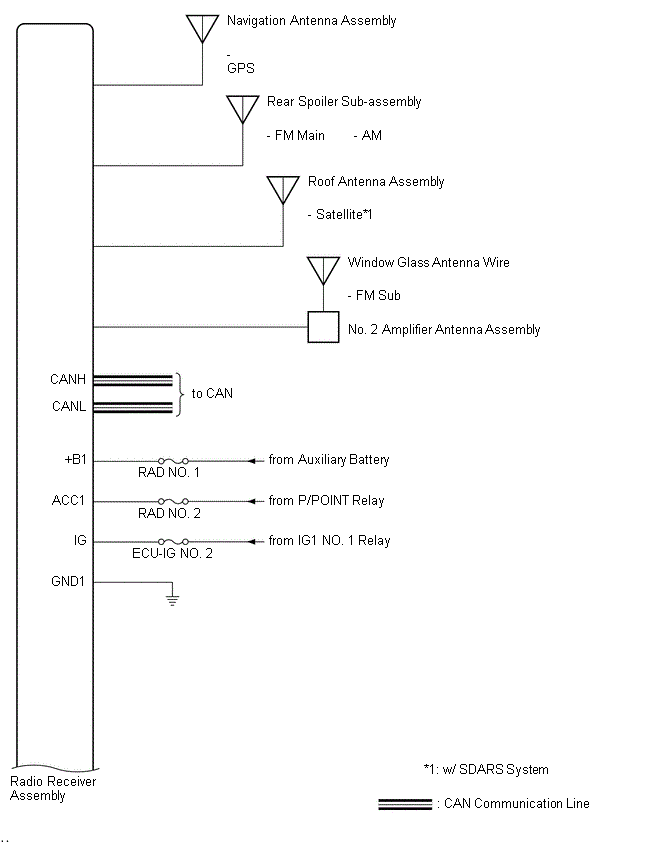

Fig 1: Navigation System Diagram (1 Of 7)

GTY523422

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

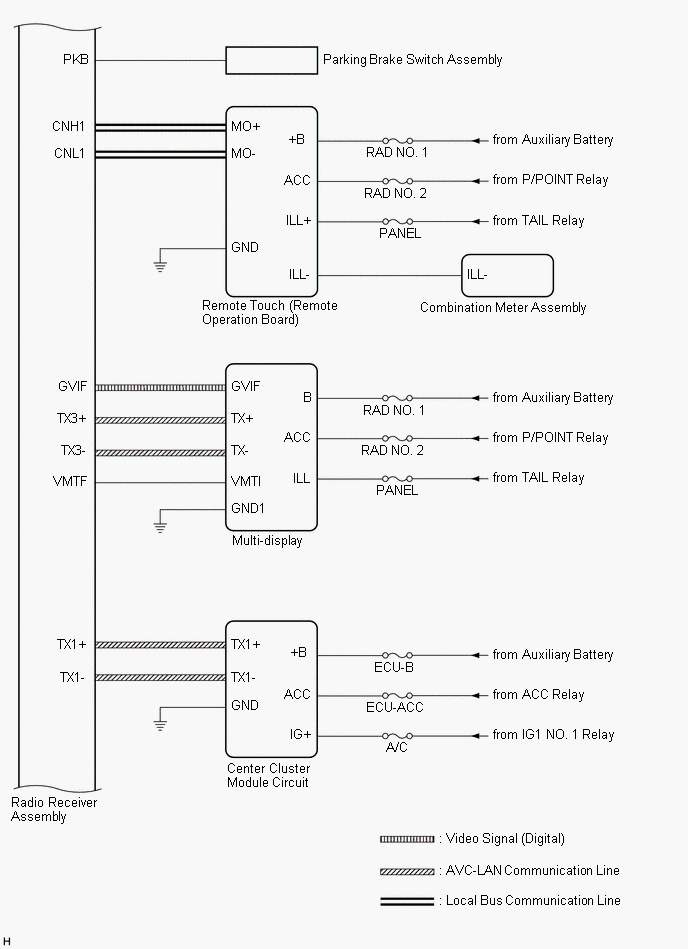

Fig 2: Navigation System Diagram (2 Of 7)

GTY629919

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

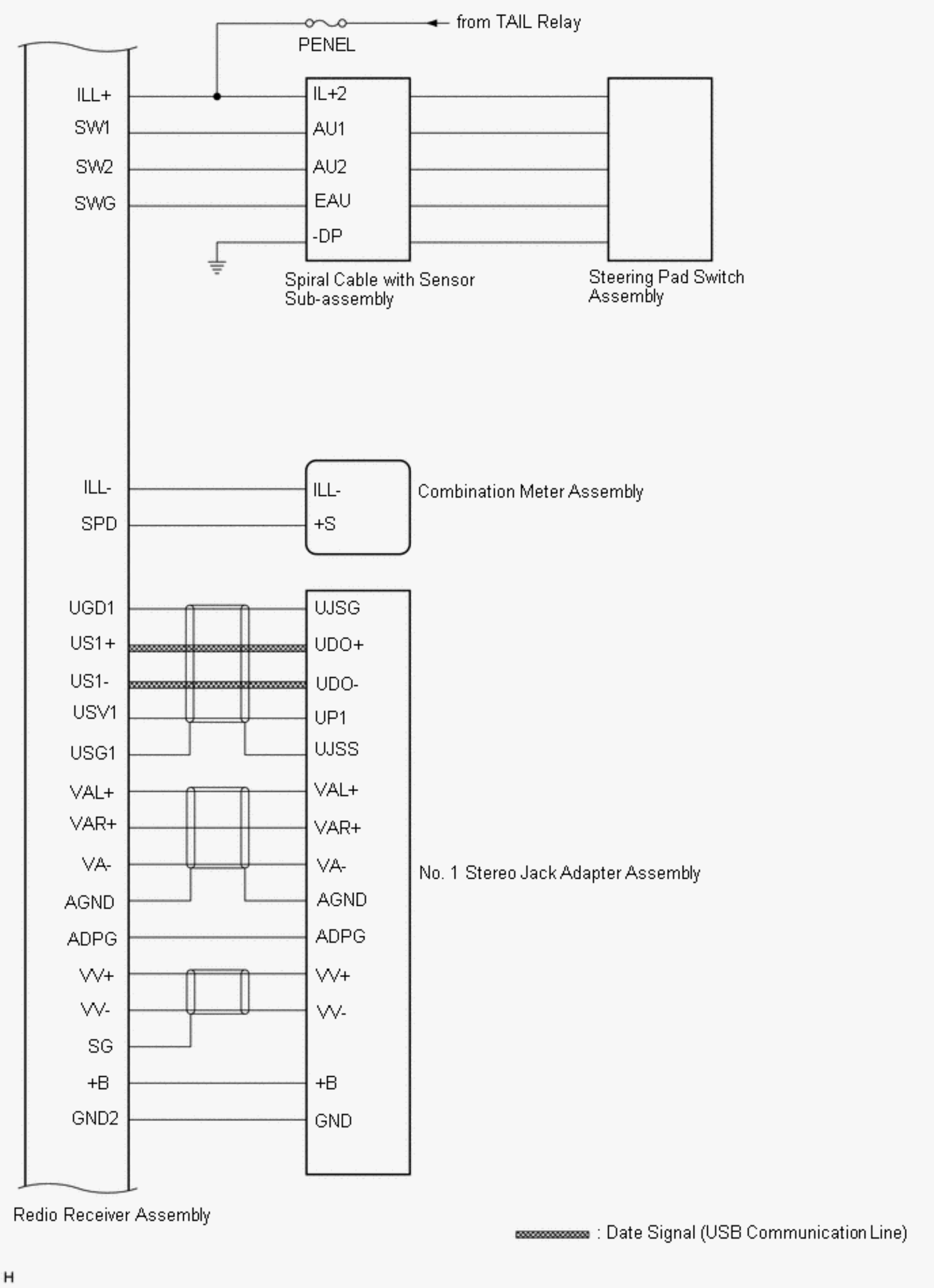

Fig 3: Navigation System Diagram (3 Of 7)

GTY650039

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

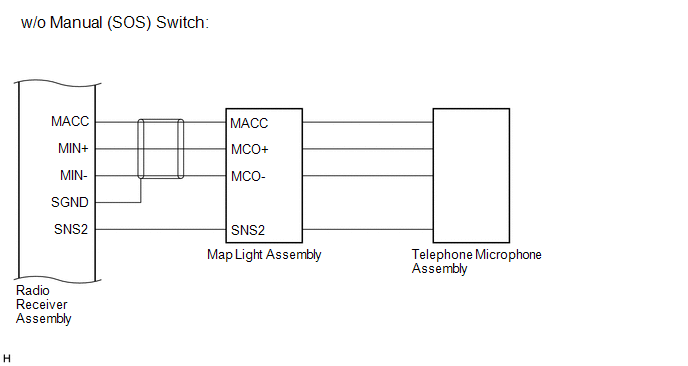

Fig 4: Navigation System Diagram (4 Of 7)

GTY470669

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

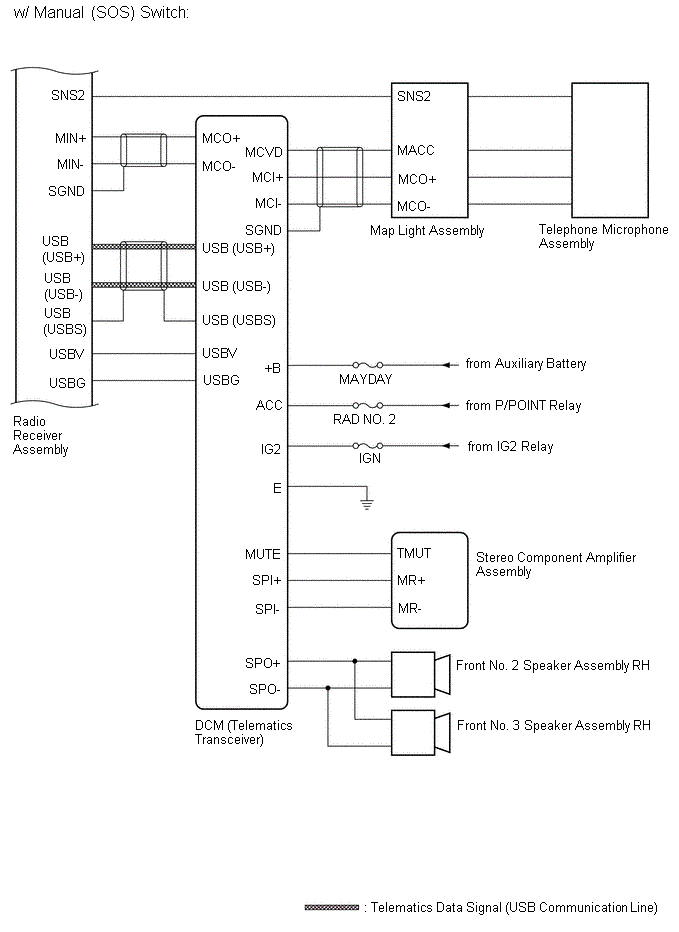

Fig 5: Navigation System Diagram (5 Of 7)

GTY522177

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

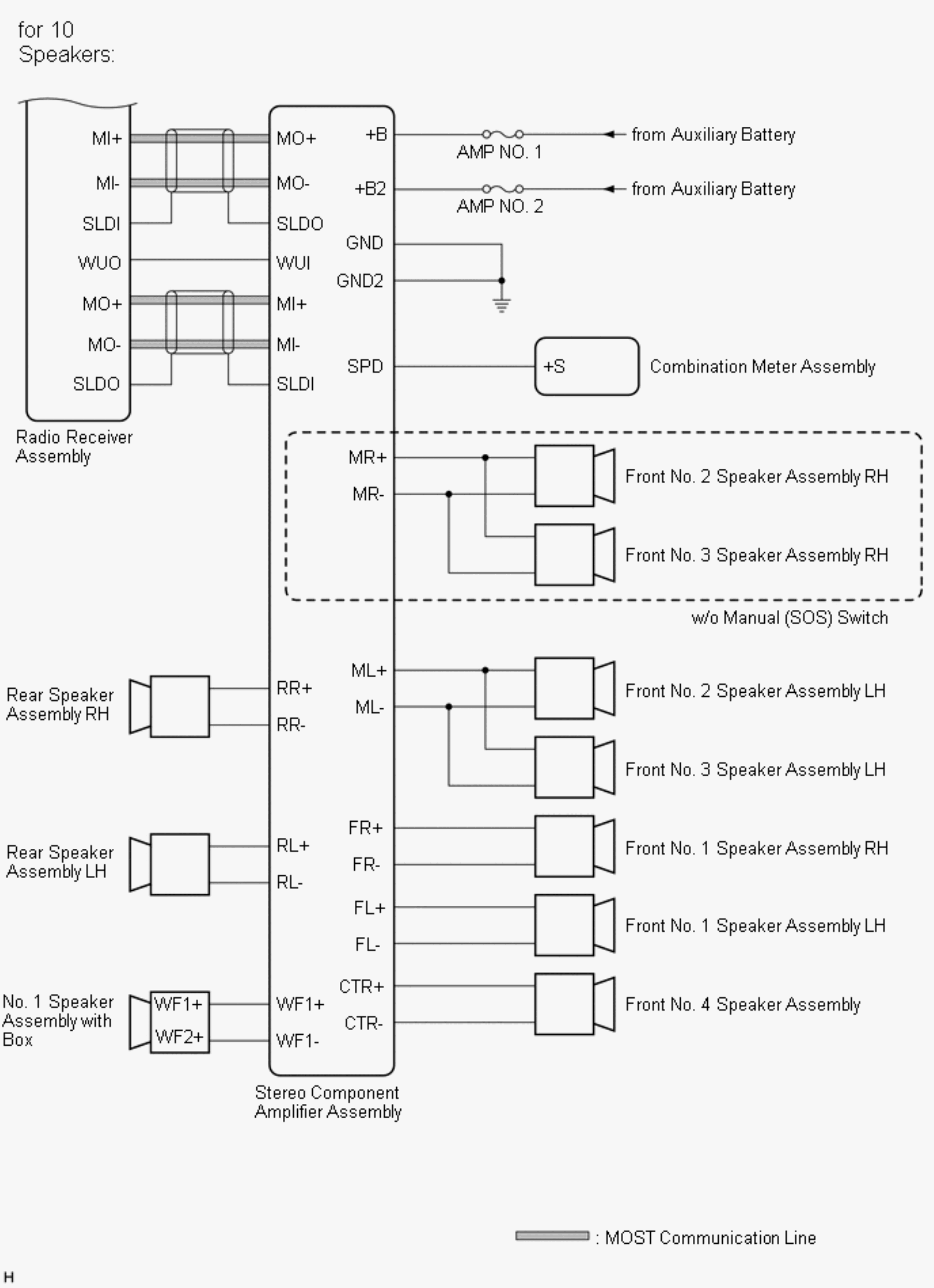

Fig 6: Navigation System Diagram (6 Of 7)

GTY672743

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

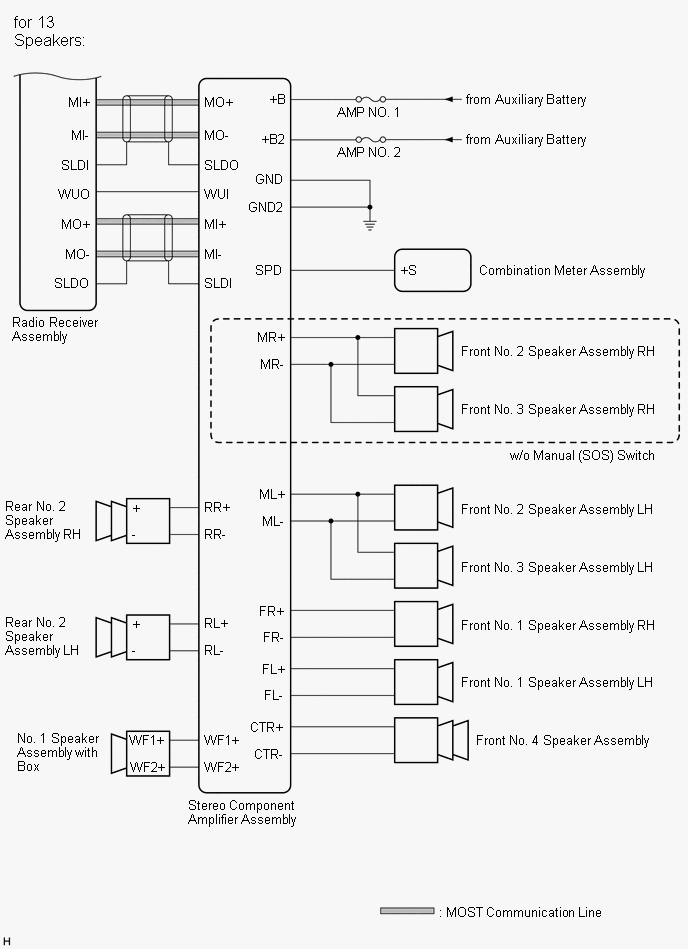

Fig 7: Navigation System Diagram (7 Of 7)

GTY621663

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
