Parts Location [08/2014 - ]: Illustration

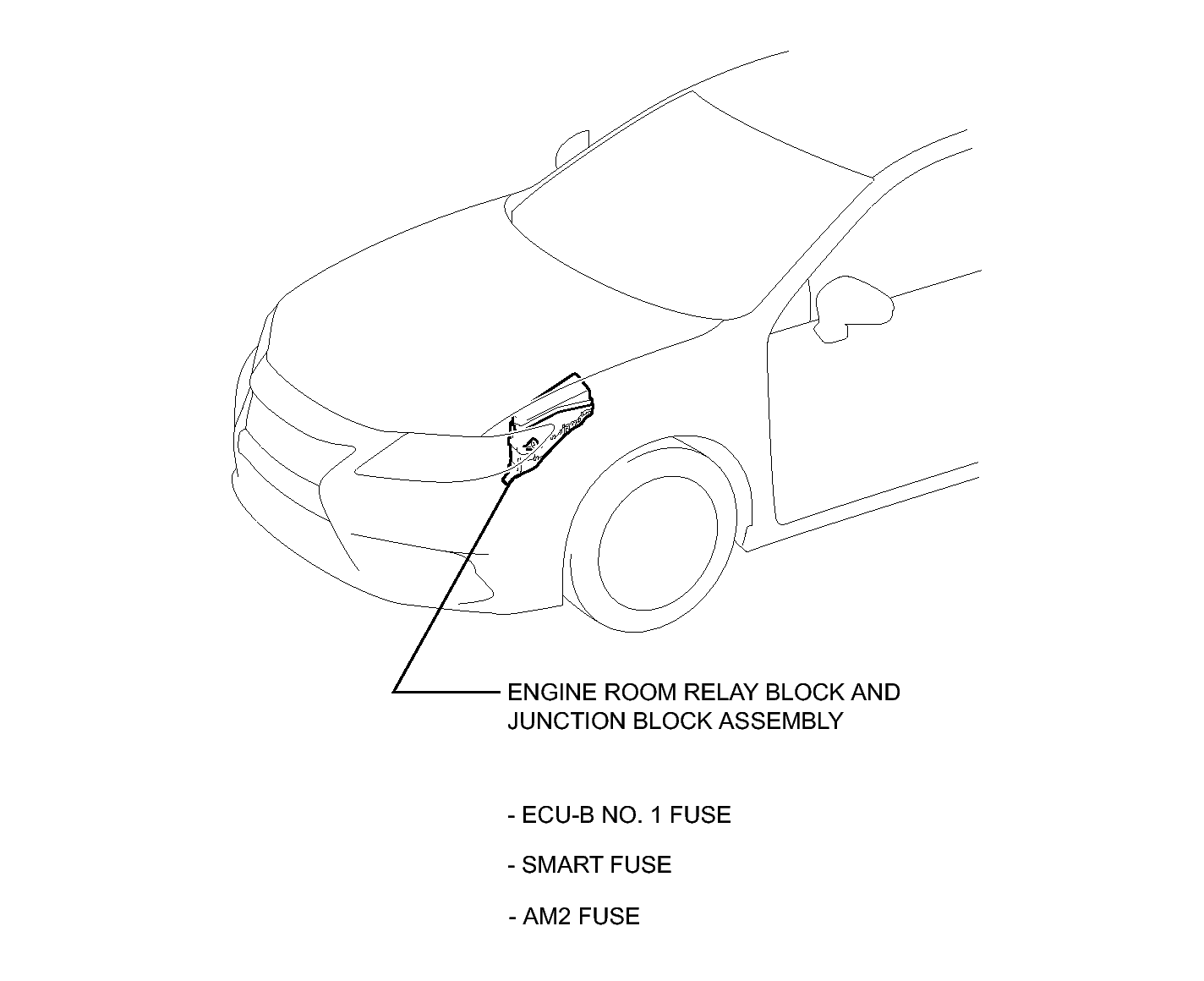

Fig 1: Smart Access System With Push-Button Start (For Entry Function) Components Location (1 Of 6)
GTY397215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

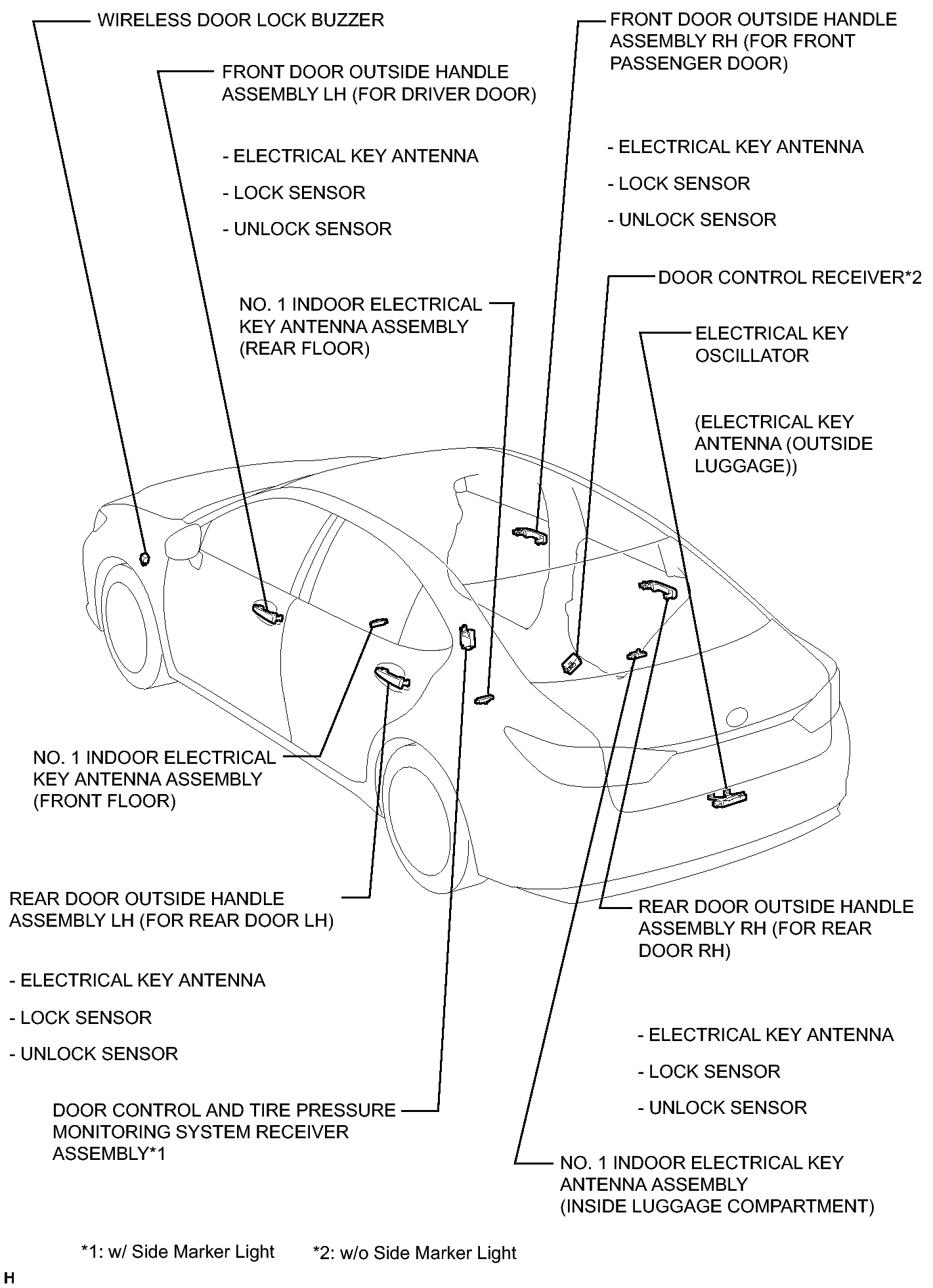

Fig 1: Smart Access System With Push-Button Start (For Entry Function) Components Location (2 Of 6)
GTY462029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

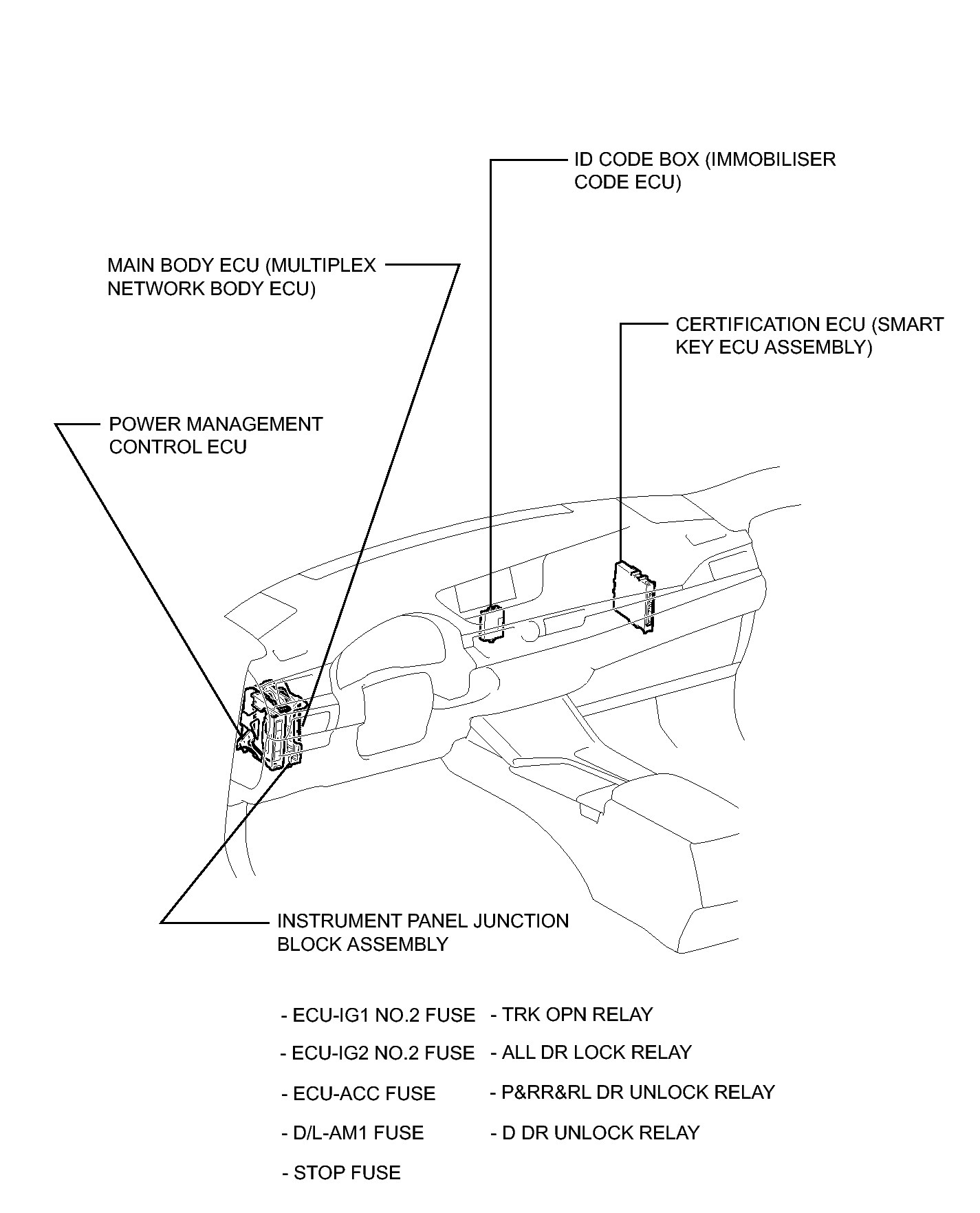

Fig 1: Smart Access System With Push-Button Start (For Entry Function) Components Location (3 Of 6)
GTY498294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

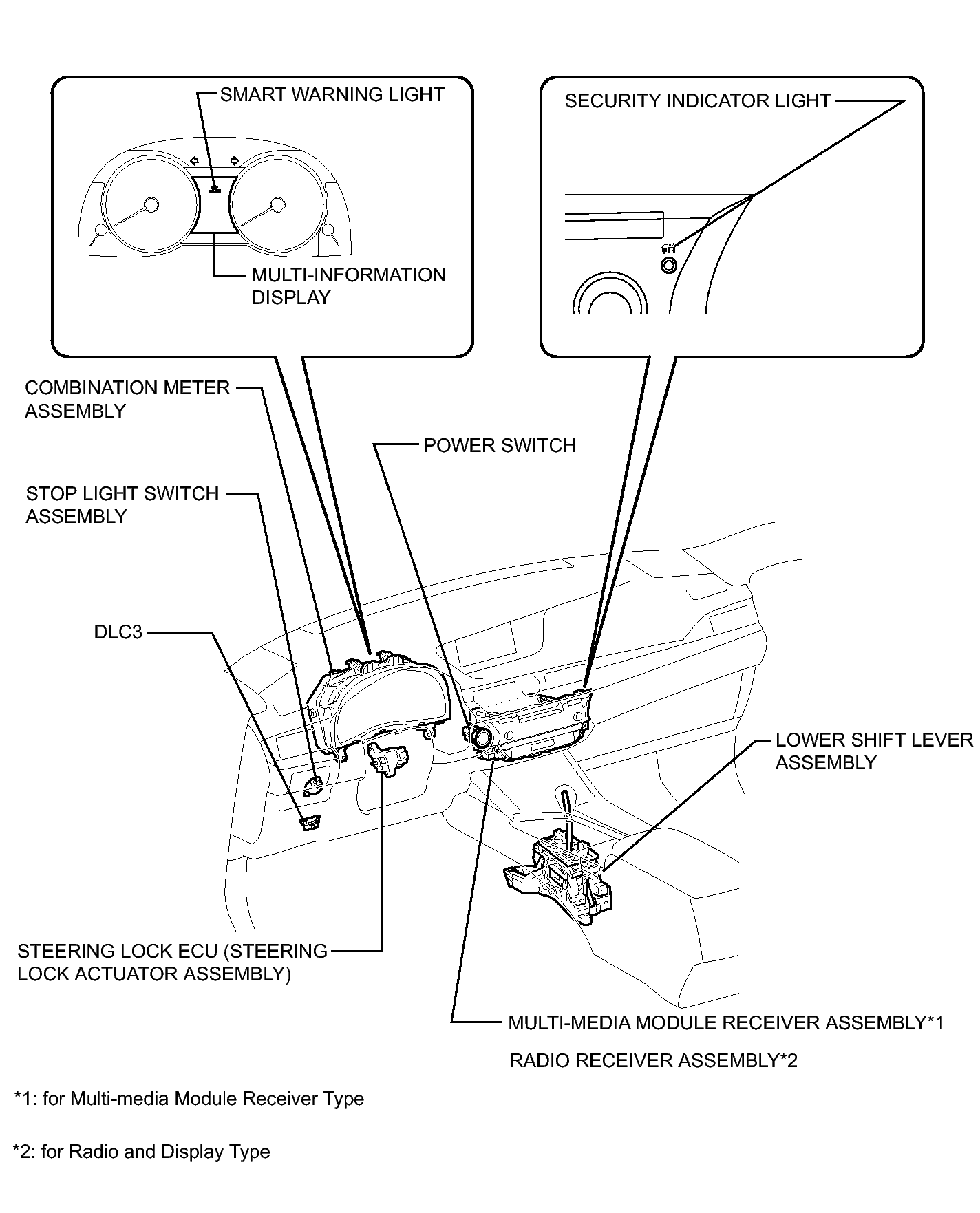

Fig 1: Smart Access System With Push-Button Start (For Entry Function) Components Location (4 Of 6)
GTY410359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Smart Access System With Push-Button Start (For Entry Function) Components Location (5 Of 6)
GTY410439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Smart Access System With Push-Button Start (For Entry Function) Components Location (6 Of 6)
GTY406062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
