Components [08/2014 - ]: Illustration

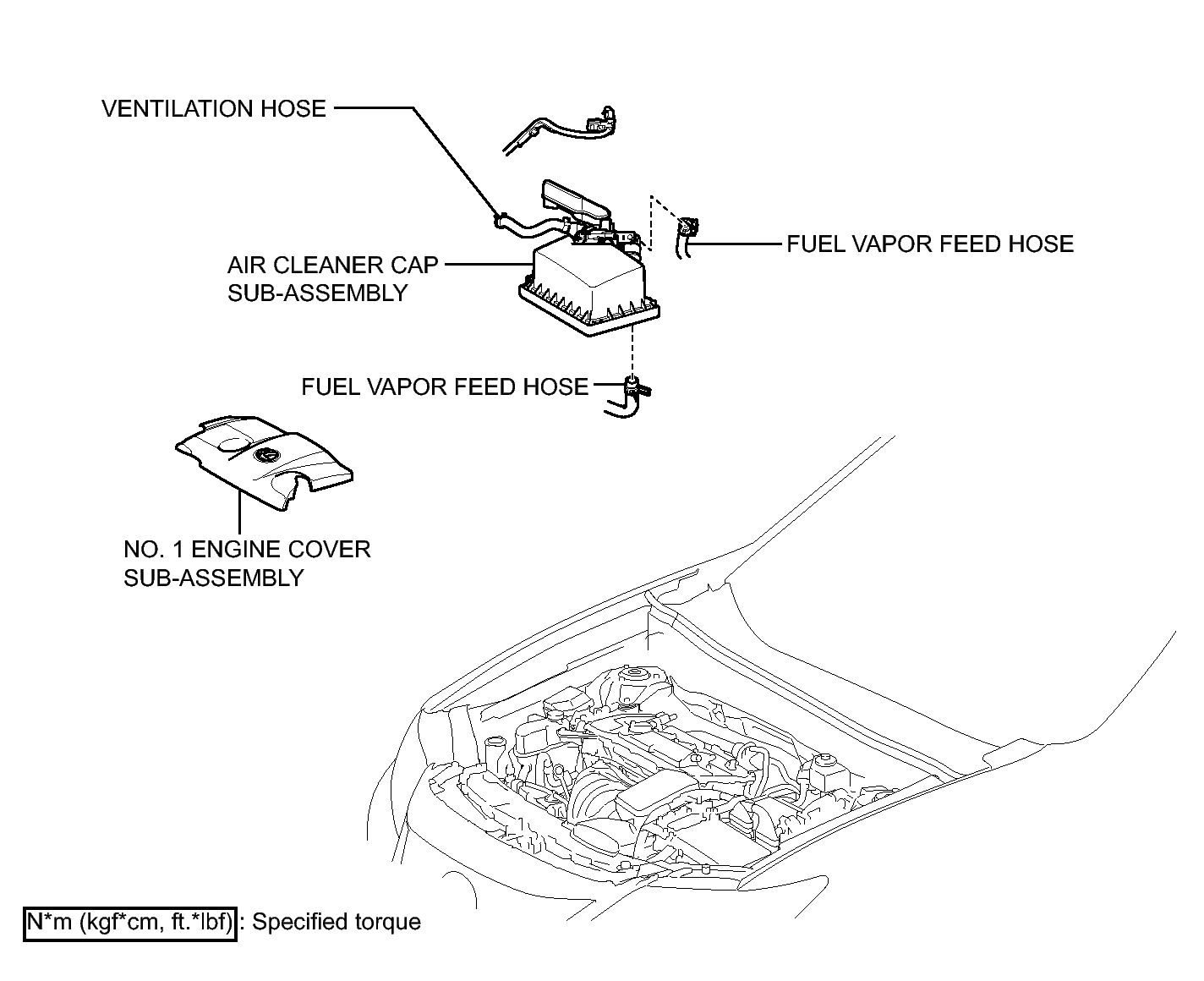

Fig 1: Throttle Body Replacement Components With Torque Specifications (1 Of 2)
GTY402557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

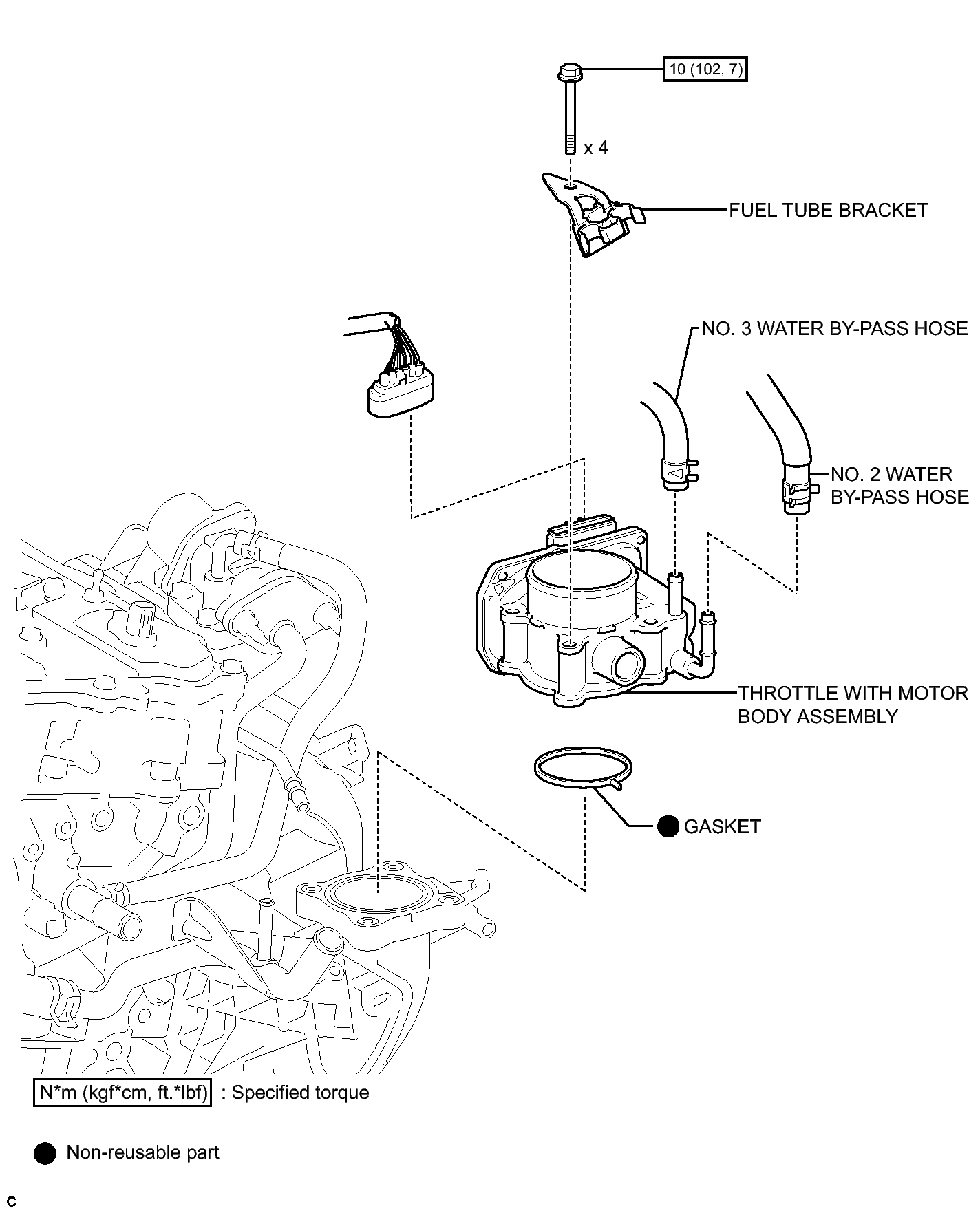

Fig 1: Throttle Body Replacement Components With Torque Specifications (2 Of 2)
GTY405962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
