Parts Location [08/2014 - ]: Illustration

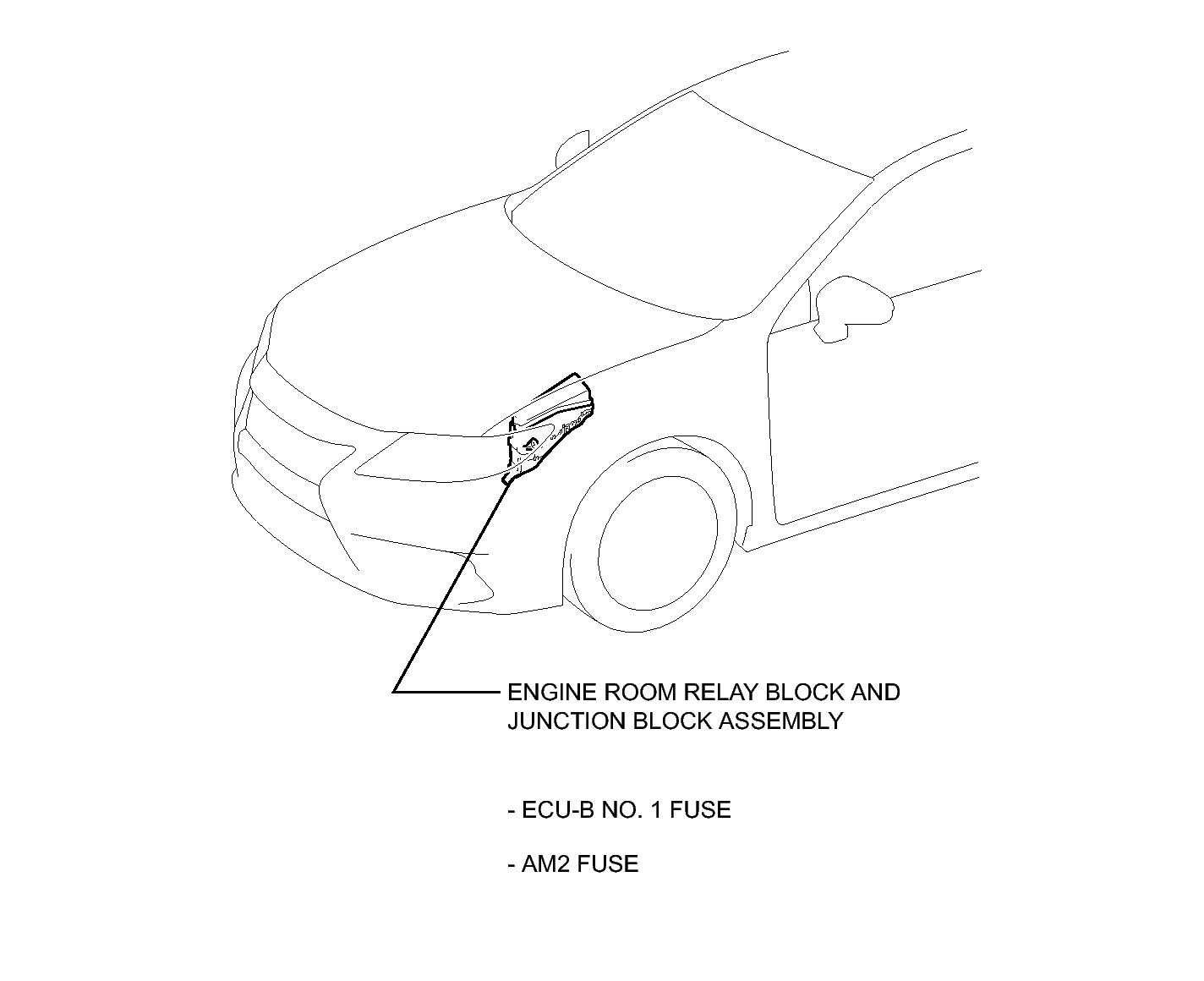

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (1 Of 6)
GTY466362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

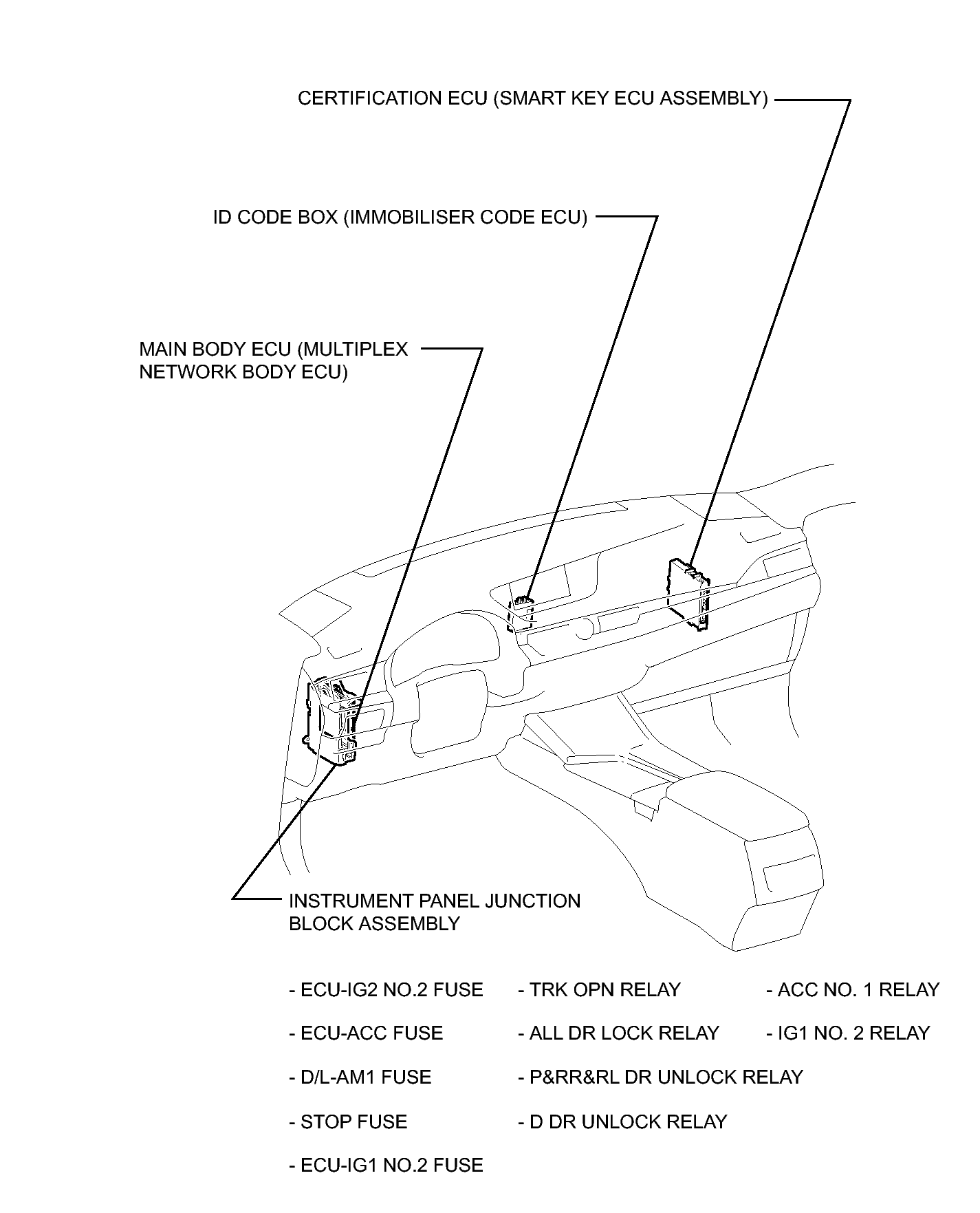

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (2 Of 6)
GTY413711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

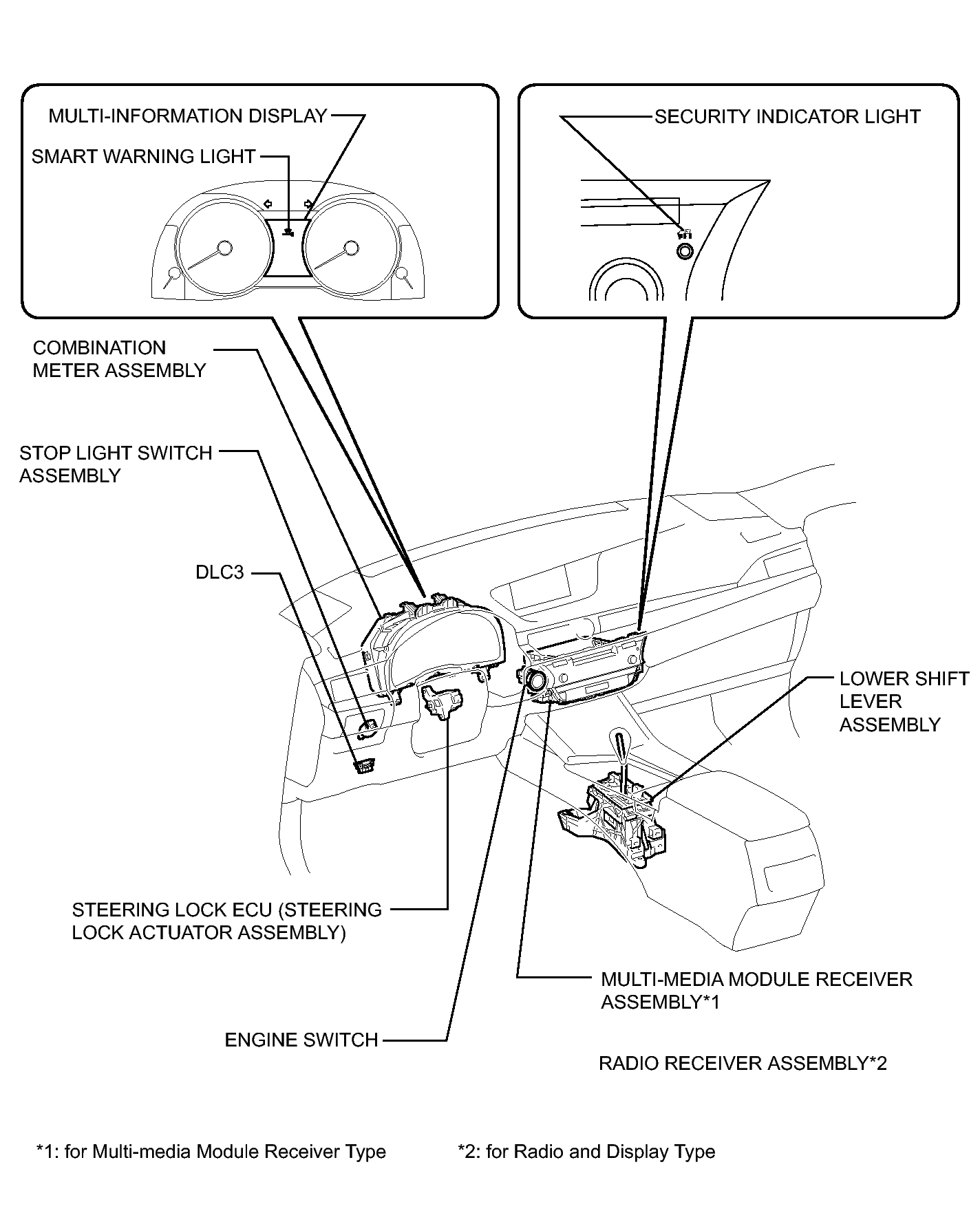

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (3 Of 6)
GTY510700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

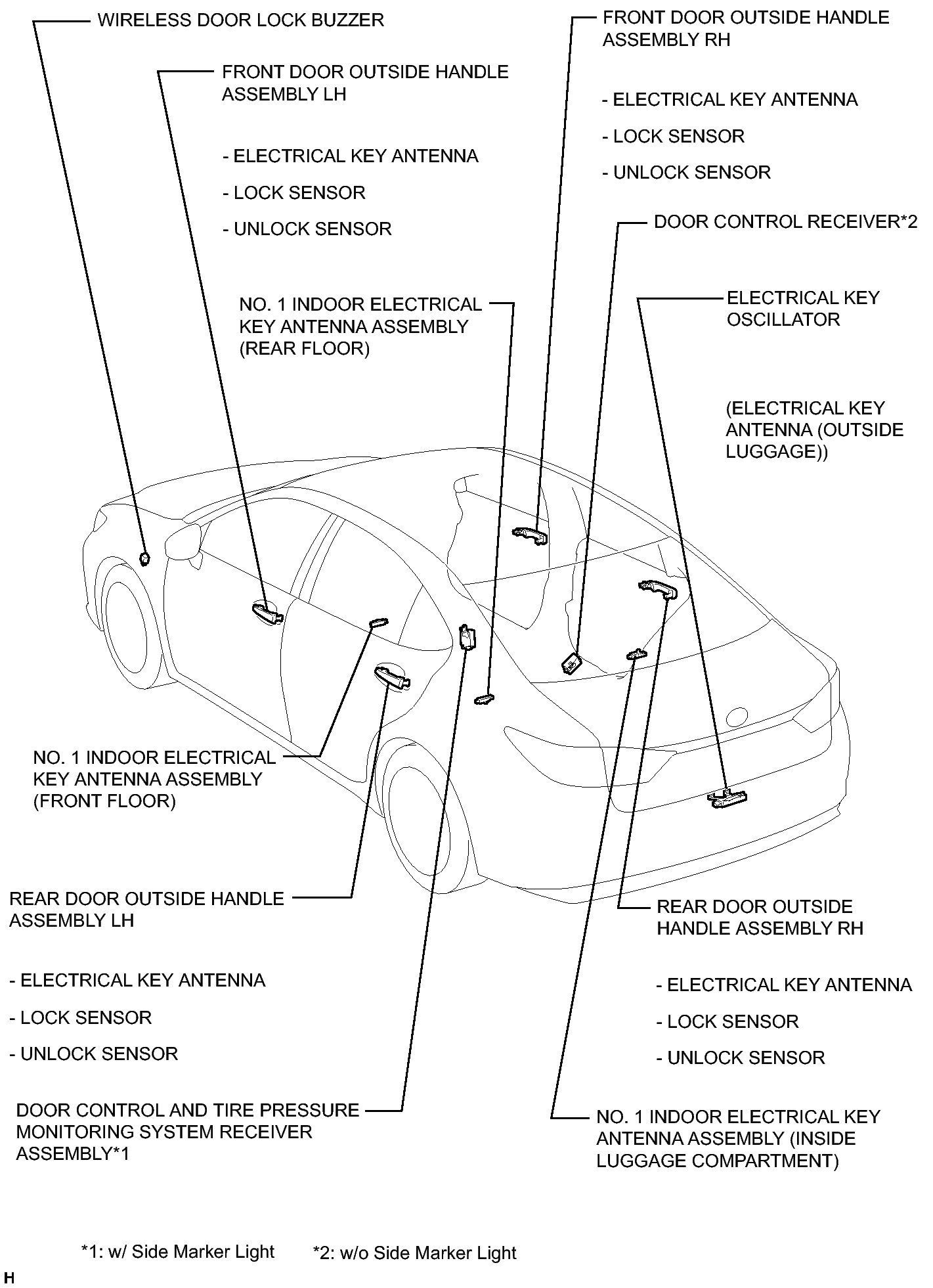

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (4 Of 6)
GTY410360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

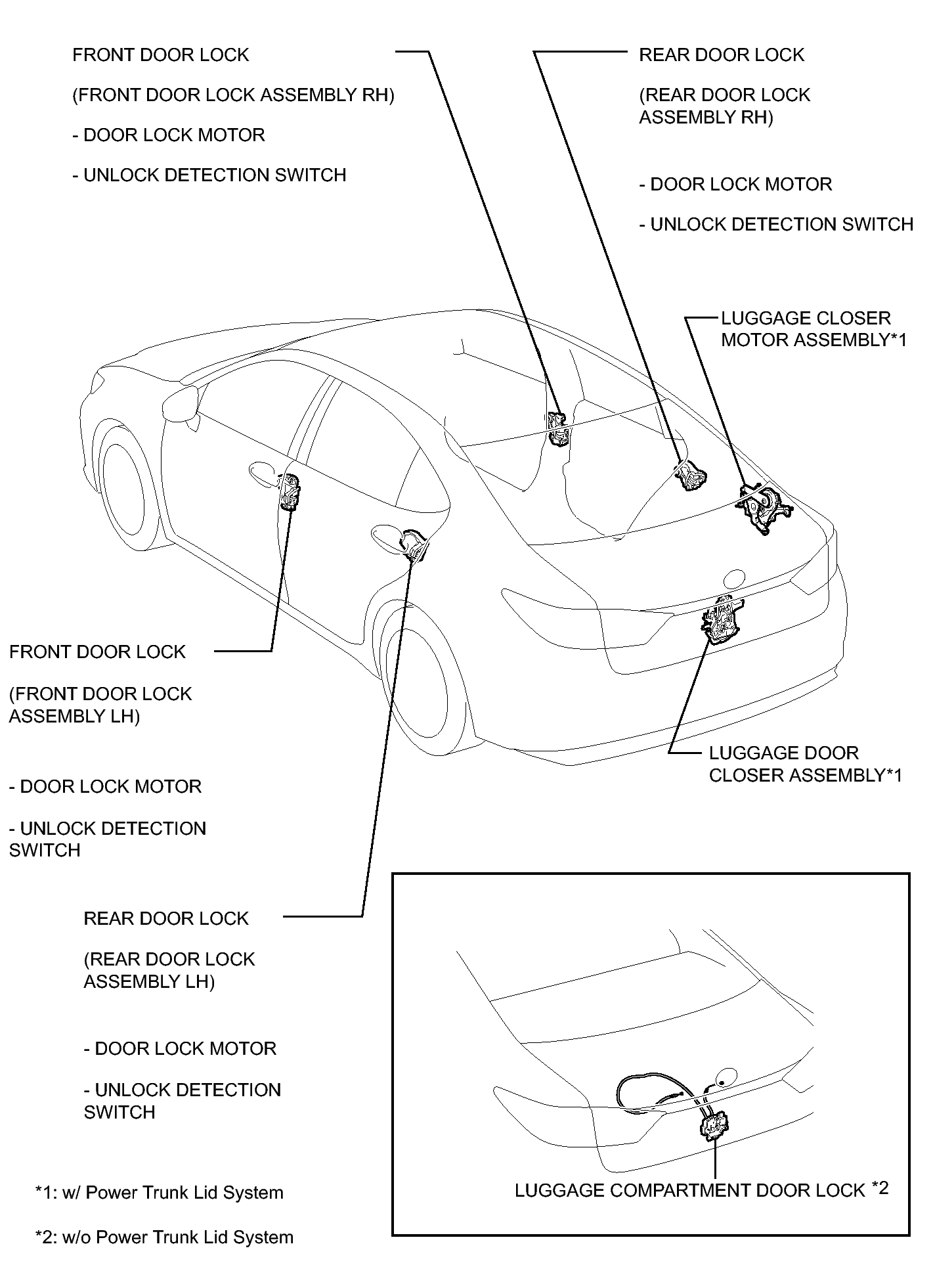

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (5 Of 6)
GTY410439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

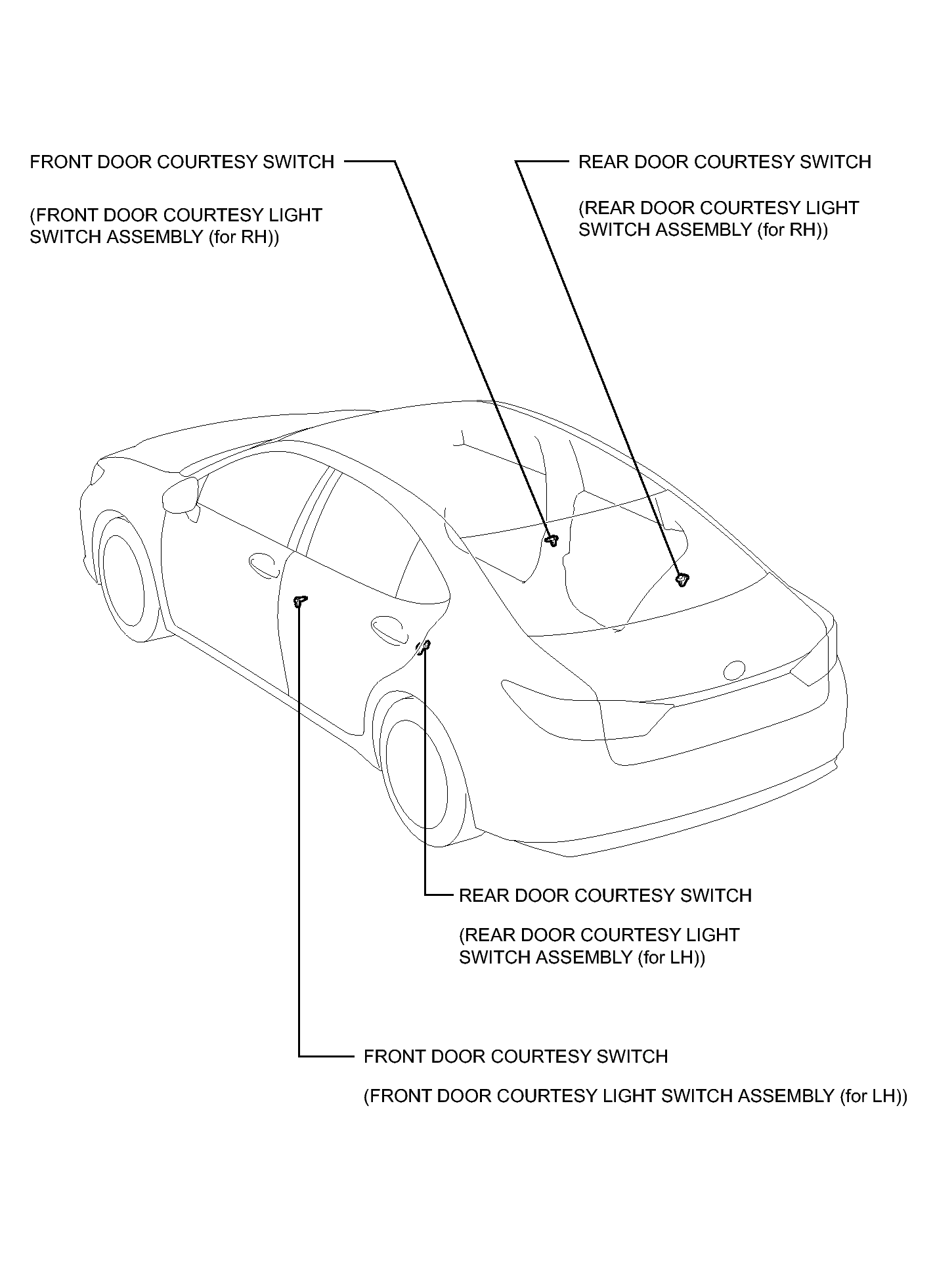

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (6 Of 6)
GTY406062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
