DTC B2285: Steering Lock Position Signal Circuit Malfunction [08/2014 - ]: Wiring Diagram

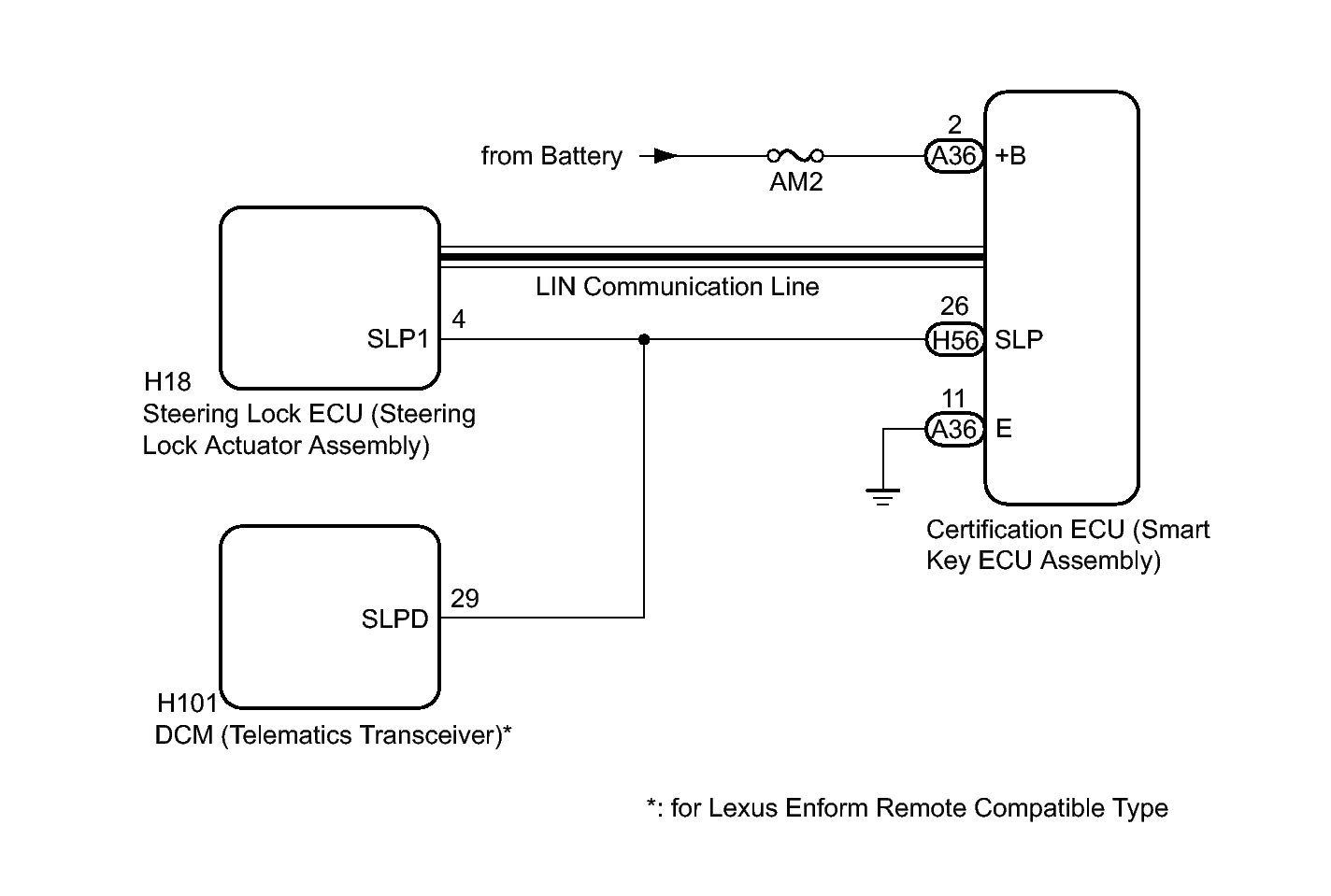

Fig 1: Steering Lock Position Circuit Wiring Diagram
GTY495744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
