Power Source Mode does not Change to ON (ACC) [08/2014 - ]: Wiring Diagram

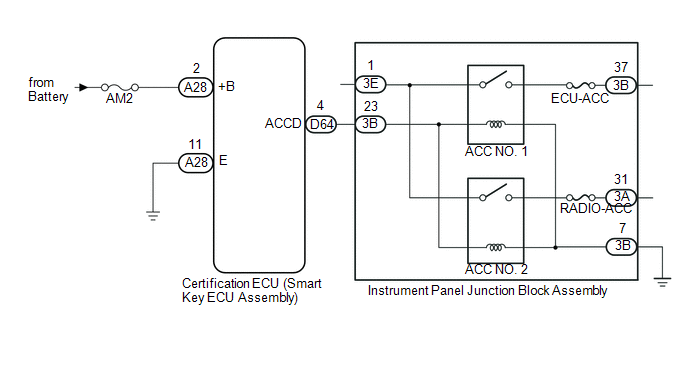

Fig 1: Power Source ON (ACC) Wiring Diagram
GTY470387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
