Power Source Mode does not Change to ON (IG and ACC) [08/2014 - ]: Wiring Diagram

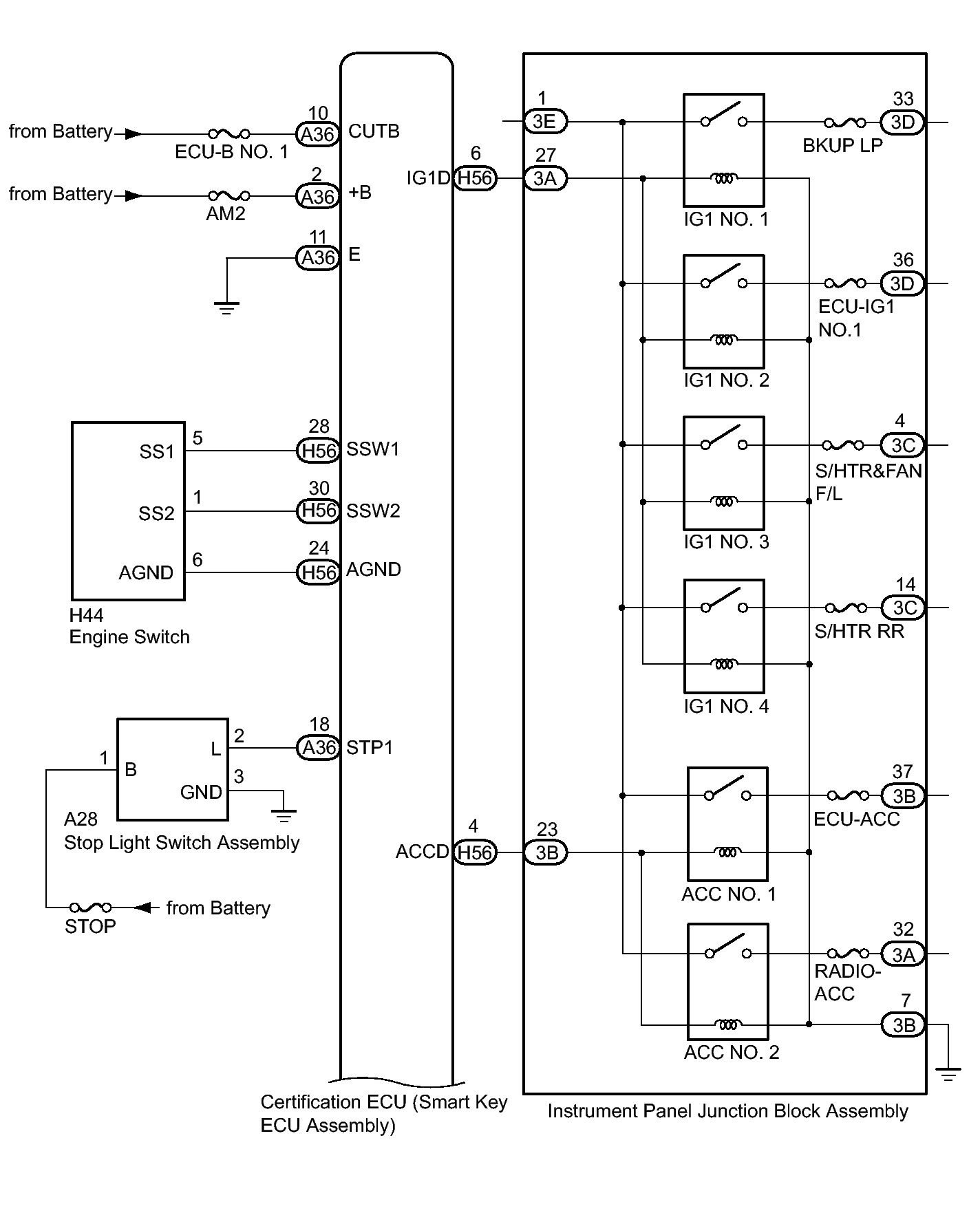

Fig 1: Power Source ON (IG & ACC) Wiring Diagram (1 Of 2)
GTY458356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Source ON (IG & ACC) Wiring Diagram (2 Of 2)
GTY407104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
