ECU Power Source Circuit [08/2014 - ]: Procedure

1. Disconnect the TCM connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D6-8 (E1) - Body ground	Always	Below 1 Ω

   TEXT IN ILLUSTRATION

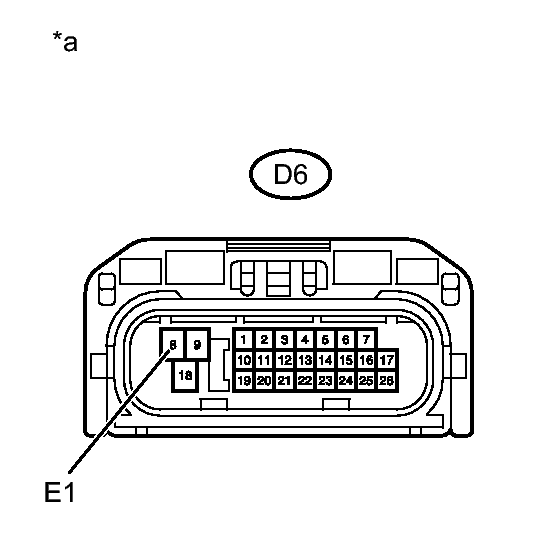

   *a	Front view of wire harness connector (to TCM)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the TCM connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Turn the engine switch on (IG).
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   D6-18 (+B) - Body ground	Engine switch on (IG)	11 to 14 V

   TEXT IN ILLUSTRATION

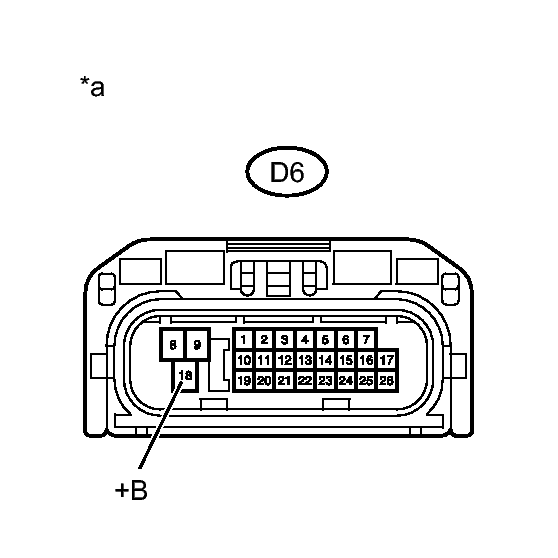

   *a	Front view of wire harness connector (to TCM)

NG → See step   3

OK → See step   4

1. Remove the integration relay from the engine room relay block and junction block assembly.
2. Disconnect the integration relay connector.
3. Disconnect the TCM connector.
4. Measure the resistance according to the value(s) in the table below.

   Standard Resistance (Check for Open)

   Tester Connection	Condition	Specified Condition
   D6-18 (+B) - 1A-4 (+B)	Always	Below 1 Ω

   Standard Resistance (Check for Short)

   Tester Connection	Condition	Specified Condition
   D6-18 (+B) or 1A-4 (+B) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   5
