Transmission Control Switch Circuit [08/2014 - ]: Procedure

1. Disconnect the transmission control switch connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   H33-4 (IG) - Body ground	Engine switch on (IG)	11 to 14 V
   	Engine switch off	Below 1 V

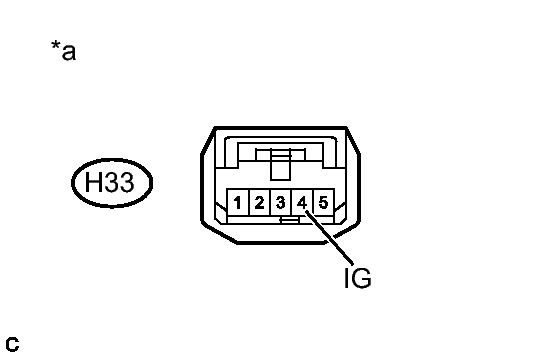

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Transmission Control Switch)

NG → CHECK POWER SOURCE CIRCUIT

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H33-2 (E) - Body ground	Always	Below 1 Ω

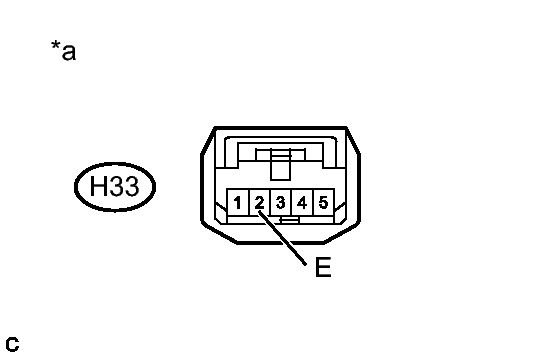

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Transmission Control Switch)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Measure the resistance between each terminal of the transmission control switch when the shift lever is moved to each position.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H33-4 (IG) - H33-5 (S)	Shift lever in S, "+" or "-"	Below 1 Ω
   	Shift lever not in S, "+" or "-"	10 kΩ or higher
   H33-3 (SFTU) - H33-2 (E)	Shift lever held in "+" (Up-shift)	Below 1 Ω
   	Shift lever not held in "+"	10 kΩ or higher
   H33-1 (SFTD) - H33-2 (E)	Shift lever held in "-" (Down-shift)	Below 1 Ω
   	Shift lever not held in "-"	10 kΩ or higher

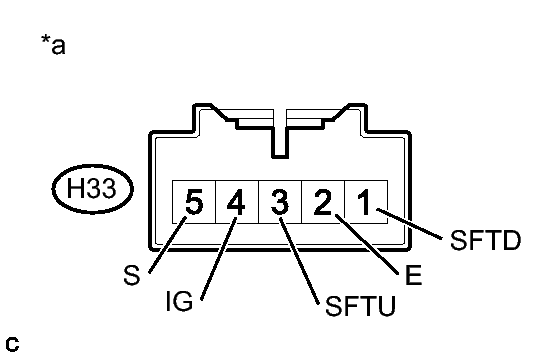

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Transmission Control Switch)

NG → See step   6

OK: Go to next step

1. Connect the transmission control switch connector.
2. Disconnect the ECM connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Turn the engine switch on (IG).
4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   A22-37 (S) - Body ground	Engine switch on (IG) Shift lever in S, "+" or "-"	11 to 14 V
   A22-37 (S) - Body ground	Engine switch on (IG) Shift lever not in S, "+" or "-"	Below 1 V

5. Turn the engine switch off.
6. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A22-34 (SFTU) - Body ground	Shift lever held in "+" (Up-shift)	Below 1 Ω
   	Shift lever not held in "+"	10 kΩ or higher
   A22-50 (SFTD) - Body ground	Shift lever held in "-" (Down-shift)	Below 1 Ω
   	Shift lever not held in "-"	10 kΩ or higher

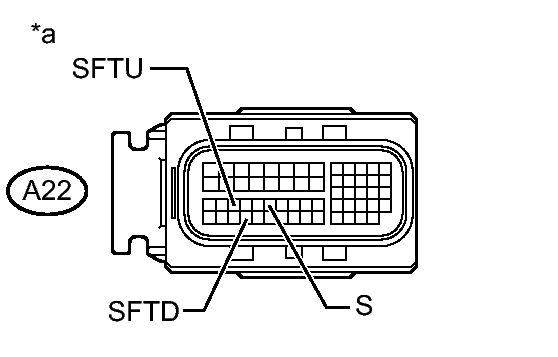

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to ECM)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   5
