DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input) [08/2014 - ]: Procedure

1. Disconnect the park/neutral position switch assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Turn the engine switch on (IG).
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   D5-1 (RB) - Body ground	Engine switch on (IG)	11 to 14 V

   TEXT IN ILLUSTRATION

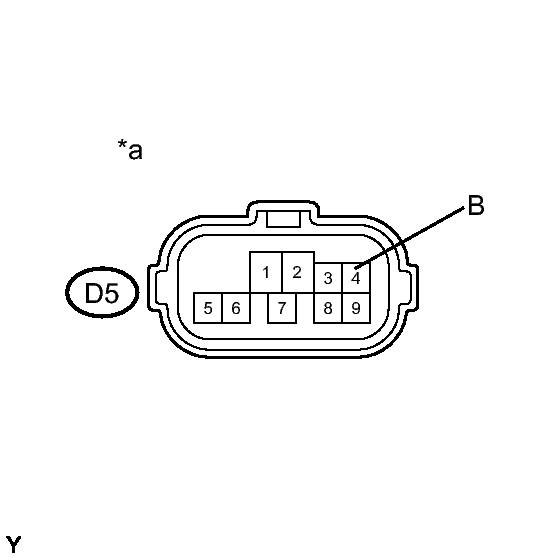

   *a	Front view of wire harness connector (to Park/Neutral Position Switch Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Turn the engine switch on (IG).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   D5-4 (B) - Body ground	Engine switch on (IG)	11 to 14 V

   TEXT IN ILLUSTRATION

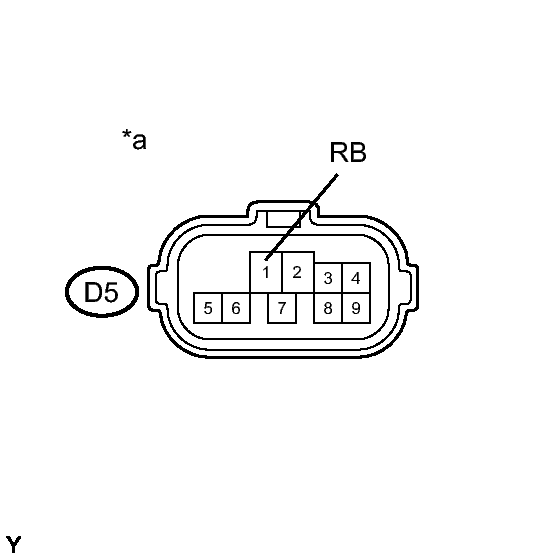

   *a	Front view of wire harness connector (to Park/Neutral Position Switch Assembly)

NG → See step   5

OK: Go to next step

1. Disconnect the park/neutral position switch assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.

   Standard Resistance

   Tester Connection	Shift Lever Position	Specified Condition
   D5-4 (B) - D5-9 (L)	P or N	Below 1 Ω
   	Except P and N	10 kΩ or higher
   D5-1 (RB) - D5-2 (RL)	R	Below 1 Ω
   	Except R	10 kΩ or higher
   D5-1 (RB) - D5-7 (DL)	D, S, "+" or "-"	Below 1 Ω
   	Except D, S, "+" and "-"	10 kΩ or higher

   TEXT IN ILLUSTRATION

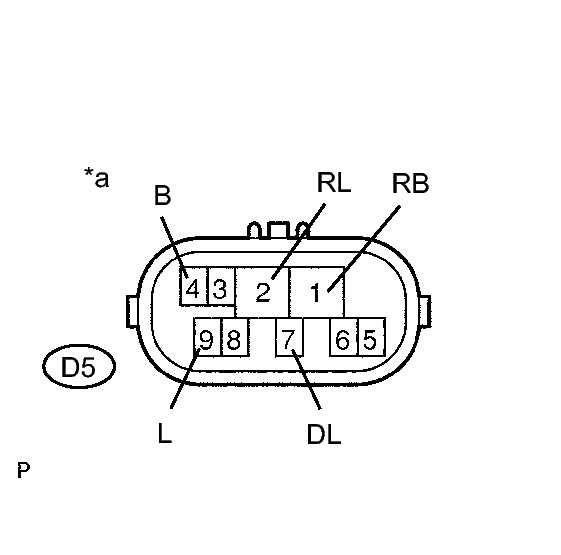

   *a	Component without harness connected (Park/Neutral Position Switch Assembly)

NG → See step   7

OK: Go to next step

1. Connect the park/neutral position switch Assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the TCM connectors.
3. Turn the engine switch on (IG), and measure the voltage according to the value(s) in the table below when the shift lever is moved to each position.

   Standard Voltage

   Tester Connection	Shift Lever Position	Specified Condition
   D6-15 (R) - Body ground	R	11 to 14 V*
   	Except R	Below 1 V
   D6-16 (D) - Body ground	D, S, "+" or "-"	11 to 14 V
   	Except D, S, "+" and "-"	Below 1 V

   TEXT IN ILLUSTRATION

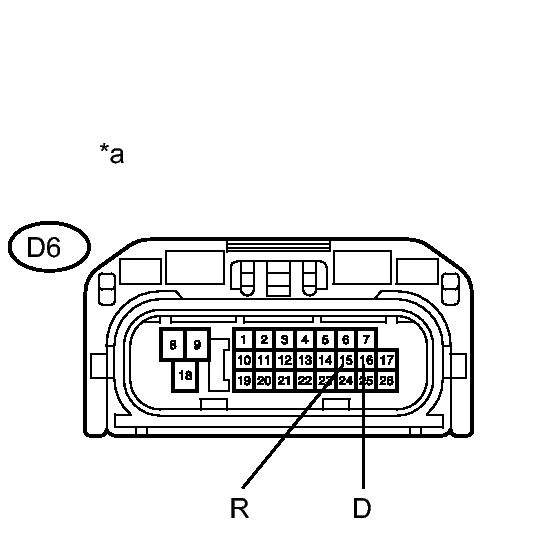

   *a	Front view of wire harness connector (to TCM)

   HINT:

   *: The voltage will drop slightly due to lighting up of the back up light.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   6

1. Turn the engine switch off.
2. Disconnect the TCM connector.
3. Disconnect the park/neutral position switch Assembly connector.
4. Measure the resistance according to the value(s) in the table below.

   Standard Resistance (Check for Open)

   Tester Connection	Condition	Specified Condition
   D5-4 (B) - D6-11 (NSW)	Always	Below 1 Ω

   Standard Resistance (Check for Short)

   Tester Connection	Condition	Specified Condition
   D5-4 (B) or D6-11 (NSW) - Body ground and other terminals	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   6
