DTC P0715: Input / Turbine Speed Sensor Circuit Malfunction; DTC P0717: Input Speed Sensor Circuit No Signal [08/2014 - ]: Description
This sensor detects the rotation speed of the turbine which shows the input revolution (speed) of the transaxle. By comparing the input turbine speed signal (NT) with the counter gear speed sensor signal (NC), the TCM detects the shift timing of the gears and appropriately controls the engine torque and hydraulic pressure according to various conditions, thus, providing smooth gear shifts.

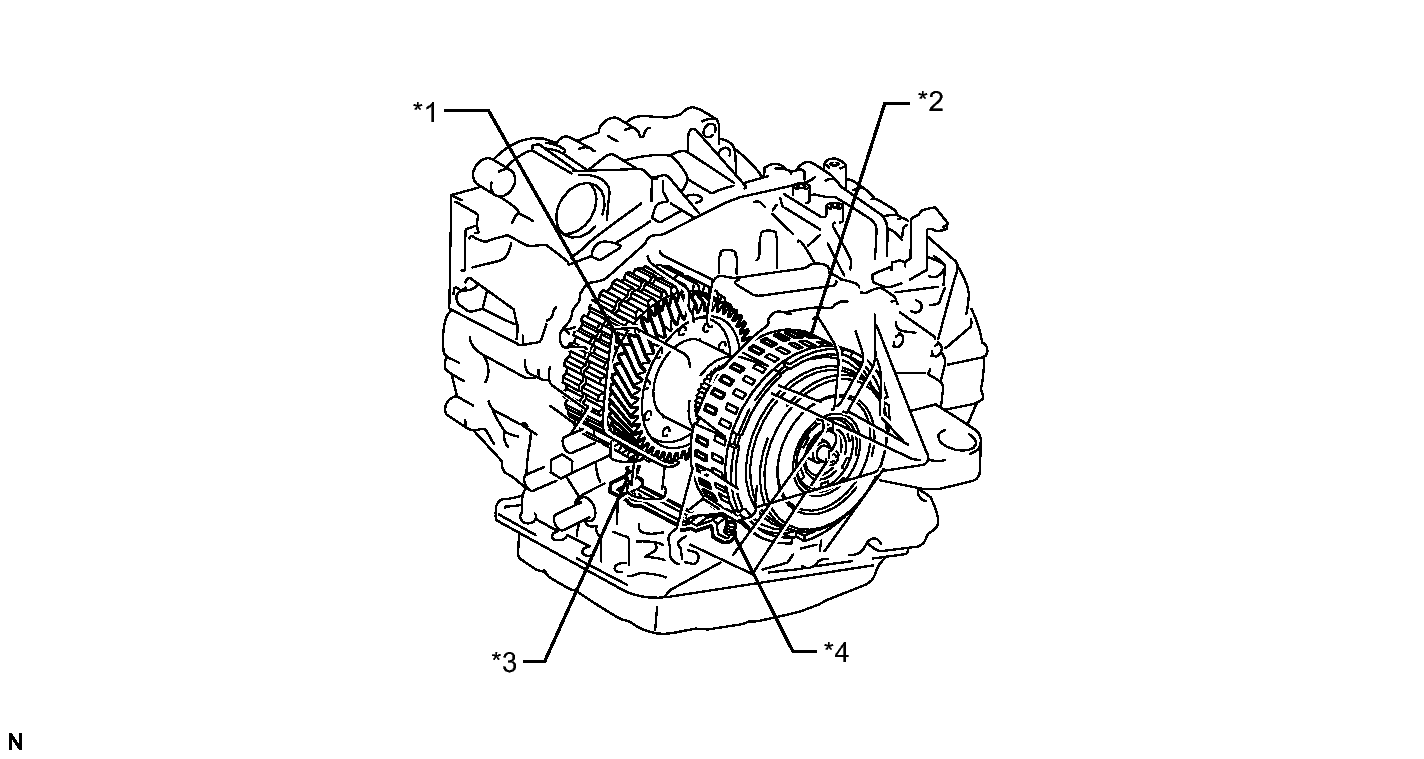

TEXT IN ILLUSTRATION
| *1 | Counter Gear | *2 | Clutch Drum |
| *3 | Output Speed Sensor NC | *4 | Input Speed Sensor NT |
| DTC No. | DTC Detection Condition | Trouble Area |
|---|---|---|
| P0715 | When the speed sensor input voltage is either more than 1.9 V or less than 0.1 V for 4.5 seconds or more.(1-trip detection logic) |
|
| P0717 | TCM detects conditions (a), (b) and (c) continuously for 5 sec. or more: (1-trip detection logic) (a) Vehicle speed: 50 km/h (31 mph) or more (b) Park/neutral position switch (R) is OFF (c) Speed sensor (NT): less than 300 rpm |
