Removal [09/2014 - 10/2015]: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [09/2014 - 10/2015] ).
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2014 - 10/2015] ).
- REMOVE ENGINE ROOM SIDE COVER
Refer to PROCEDURE - Step 1
- REMOVE COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 2
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE NO. 1 AIR CLEANER INLET
Refer to PROCEDURE - Step 19
- REMOVE NO. 1 ENGINE COVER
- REMOVE INJECTOR DRIVER

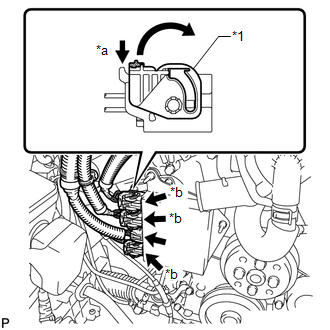

- Move the lock levers in the direction indicated by the arrow to release the 3 connector locks. Disconnect the 4 connectors from the injector driver.TEXT IN ILLUSTRATION

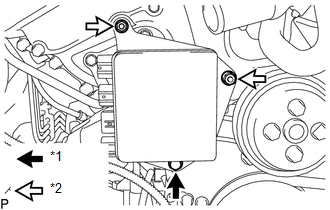

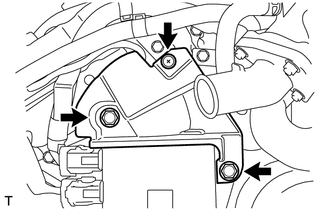

*1 Lock Lever *a Release *b Lock with Connector - Remove the bolt, 2 nuts and injector driver.TEXT IN ILLUSTRATION
*1 Bolt *2 Nut NOTE:Be careful not to drop or strike the injector driver.
- Move the lock levers in the direction indicated by the arrow to release the 3 connector locks. Disconnect the 4 connectors from the injector driver.
