Fuel Pump Control Circuit [09/2014 - 10/2015]: Procedure

  1. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE FUEL PUMP/SPEED)
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump/Speed.
    5. Check whether operating sounds can be heard while operating the fuel pump using the Techstream.

      OK

      Operating sounds can be heard from fuel pump.

    Result:

    NG

    See step  7

    Result:

    OK

    See step  2

  2. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE FUEL PUMP)

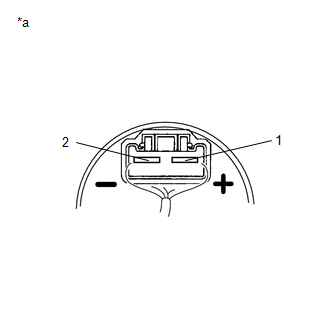

    GTY294188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the fuel tank assembly (Refer to REMOVAL [09/2014 - 10/2015] ).
    2. Remove the fuel pump from the fuel tank assembly.
    3. Clean the fuel pump to completely remove any remaining fuel.
    4. Connect the fuel pump connector.
      WARNING:

      Make sure that there is no fuel remaining inside or on the outside of the fuel pump.

    5. Connect the Techstream to the DLC3.
    6. Turn the engine switch on (IG).
    7. Turn the Techstream on.
    8. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump Duty.
    9. Operate the fuel pump using the Active Test function and measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Techstream Operation Specified Condition
      1 - 2 FPC Duty: 25% 3.2 to 4.05 V
      FPC Duty: 80% 8.8 to 12.5 V
    10. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump/Speed.
    11. Operate the fuel pump using the Active Test function and measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Techstream Operation Specified Condition
      1 - 2 ON (FPC Duty: 90%) 9.0 to 14.0 V

      HINT:

      • Be sure to measure the voltage with all the connectors connected.
      • Before performing this inspection, check that the battery voltage is between 11 and 14 V (not depleted).
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (Fuel Pump)

    Result:

    NG

    See step  5

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (FUEL PUMP ECU - ECM)
    1. Disconnect the fuel pump ECU connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      U38-5 (FPC) - A19-5 (FPC) Always Below 1 Ω
      U38-5 (FPC) or A19-5 (FPC) - Body ground Always 10 kΩ or higher

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. REPLACE FUEL PUMP
    1. Replace the fuel pump (Refer to REMOVAL [09/2014 - 10/2015] ).

      HINT:

      Perform "Inspection After Repair" after replacing the fuel pump (Refer to INITIALIZATION [09/2014 - 10/2015] ).

    Result:

    NEXT

    See step  6

  5. REPLACE FUEL PUMP ECU
    1. Replace the fuel pump ECU (Refer to REMOVAL [09/2014 - 10/2015] ).

    Result:

    NEXT

    See step  6

  6. CONFIRM WHETHER MALFUNCTION HAS BEEN SUCCESSFULLY REPAIRED
    1. Check the fuel pump operation.

      OK

      Malfunction has been repaired successfully.

    Result:

    OK

    END

    Result:

    NG

    REPLACE ECM

    (Refer to REMOVAL [09/2014 - 10/2015] )

  7. INSPECT FUEL PUMP ECU (POWER SOURCE VOLTAGE)

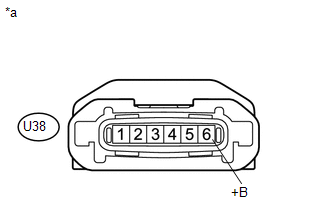

    GTY531883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the fuel pump ECU connector.
    2. Turn the engine switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      U38-6 (+B) - Body Ground Engine switch on (IG) 11 to 14 V
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Fuel Pump ECU)

    Result:

    NG

    See step  14

    Result:

    OK

    See step  8

  8. CHECK HARNESS AND CONNECTOR (FUEL PUMP ECU - BODY GROUND)
    1. Disconnect the fuel pump ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      U38-3 (E) - Body ground Always Below 1 Ω

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  9

  9. CHECK HARNESS AND CONNECTOR (FUEL PUMP - FUEL PUMP ECU)
    1. Disconnect the fuel pump connector.
    2. Disconnect the fuel pump ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      U11-4 (B) - U38-1 (FP) Always Below 1 Ω
      U11-5 (E) - U38-2 (FP-) Always Below 1 Ω
      U11-4 (B) or U38-1 (FP) - Body ground Always 10 kΩ or higher
      U11-5 (E) or U38-2 (FP-) - Body ground Always 10 kΩ or higher

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  10

  10. INSPECT FUEL PUMP
    1. Inspect the fuel pump (Refer to INSPECTION [09/2014 - 10/2015] ).

      HINT:

      Perform "Inspection After Repair" after replacing the fuel pump (Refer to INITIALIZATION [09/2014 - 10/2015] ).

    Result:

    NG

    REPLACE FUEL PUMP

    (Refer to REMOVAL [09/2014 - 10/2015] )

    Result:

    OK

    See step  11

  11. CHECK HARNESS AND CONNECTOR (FUEL PUMP ECU - ECM)
    1. Disconnect the fuel pump ECU connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      U38-5 (FPC) - A19-5 (FPC) Always Below 1 Ω
      U38-5 (FPC) or A19-5 (FPC) - Body ground Always 10 kΩ or higher

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  12

  12. REPLACE FUEL PUMP ECU
    1. Replace the fuel pump ECU (Refer to REMOVAL [09/2014 - 10/2015] ).

    Result:

    NEXT

    See step  13

  13. CONFIRM WHETHER MALFUNCTION HAS BEEN SUCCESSFULLY REPAIRED
    1. Check the fuel pump operation.

      OK

      Malfunction has been repaired successfully.

    Result:

    OK

    END

    Result:

    NG

    REPLACE ECM

    (Refer to REMOVAL [09/2014 - 10/2015] )

  14. INSPECT NO. 1 INTEGRATION RELAY (EFI MAIN2)
    1. Inspect the No. 1 integration relay (EFI MAIN2) (Refer to PROCEDURE - Step 2 ).

    Result:

    NG

    REPLACE NO. 1 INTEGRATION RELAY

    Result:

    OK

    See step  15

  15. CHECK HARNESS AND CONNECTOR (EFI MAIN2 RELAY - FUEL PUMP ECU)
    1. Remove the No. 1 integration relay from the No. 2 engine room relay block.
    2. Disconnect the fuel pump ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      2F-12 - U38-6 (+B) Always Below 1 Ω
      2F-12 or U38-6 (+B) - Body ground Always 10 kΩ or higher

    Result:

    OK

    GO TO ECM POWER SOURCE CIRCUIT

    (Refer to ECM Power Source Circuit [09/2014 - 10/2015] )

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
