System Diagram [08/2013 - ]

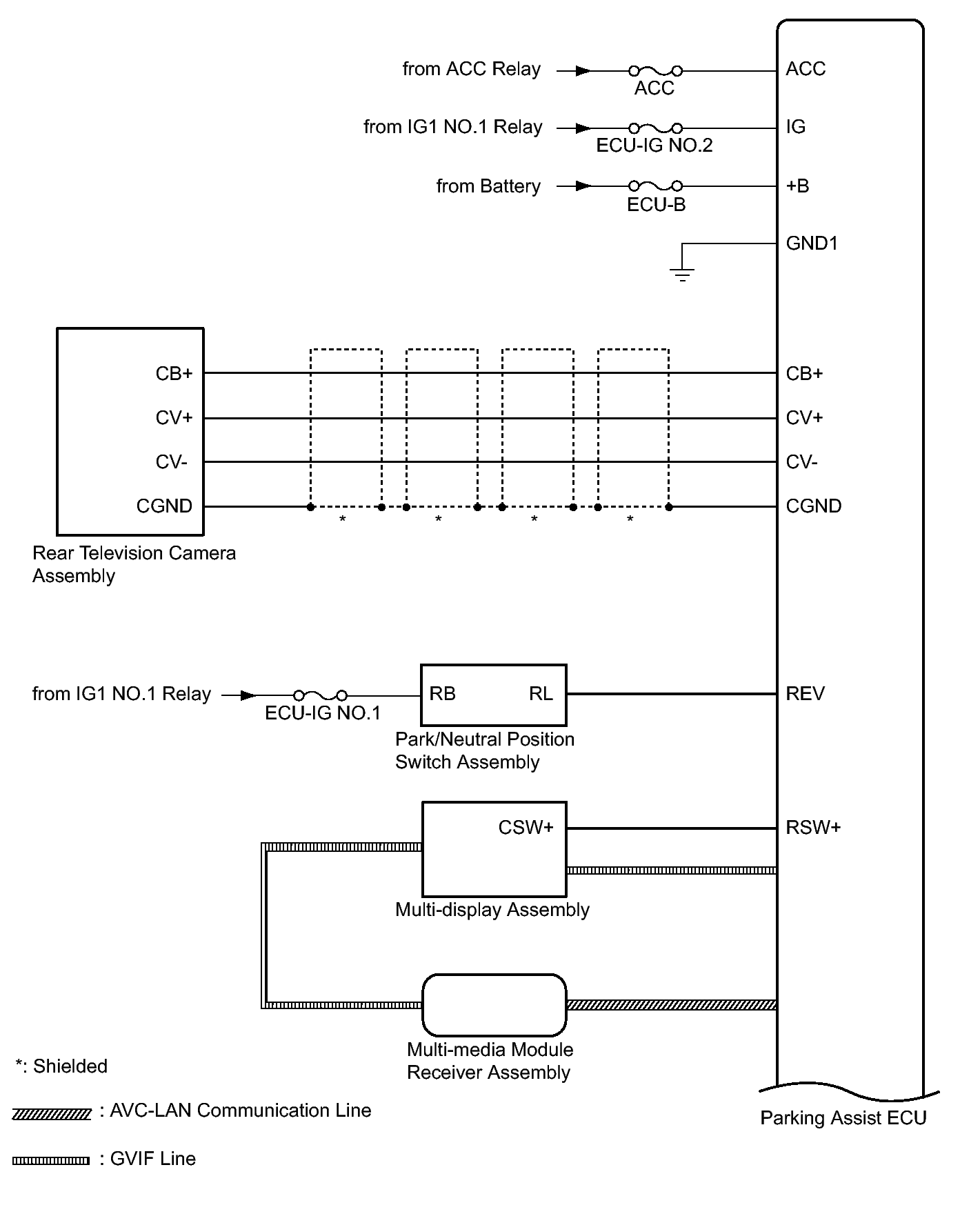

Fig 1: Wide View Front Monitor System Diagram (1 Of 3)
GTY463208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

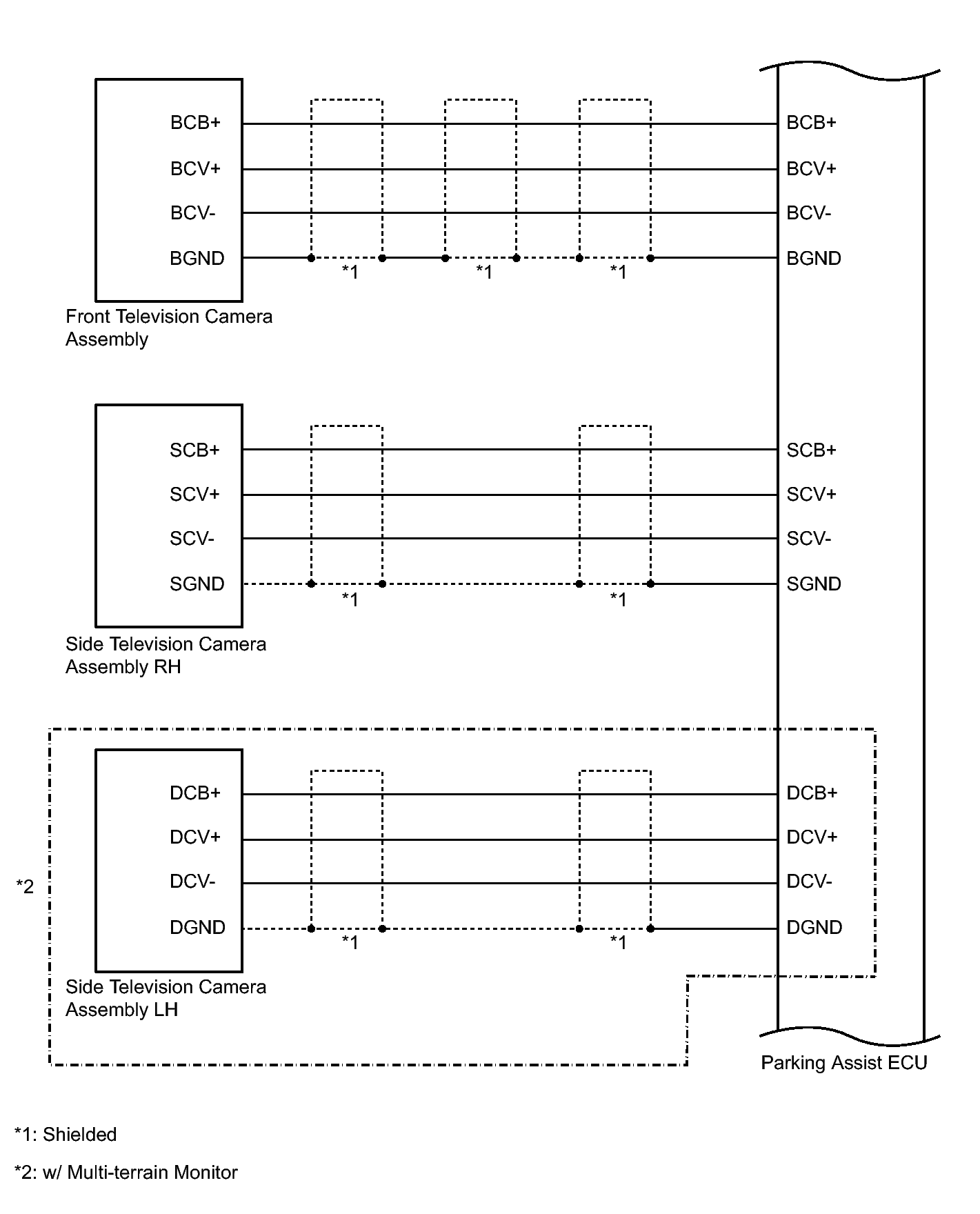

Fig 2: Wide View Front Monitor System Diagram (2 Of 3)
GTY467213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

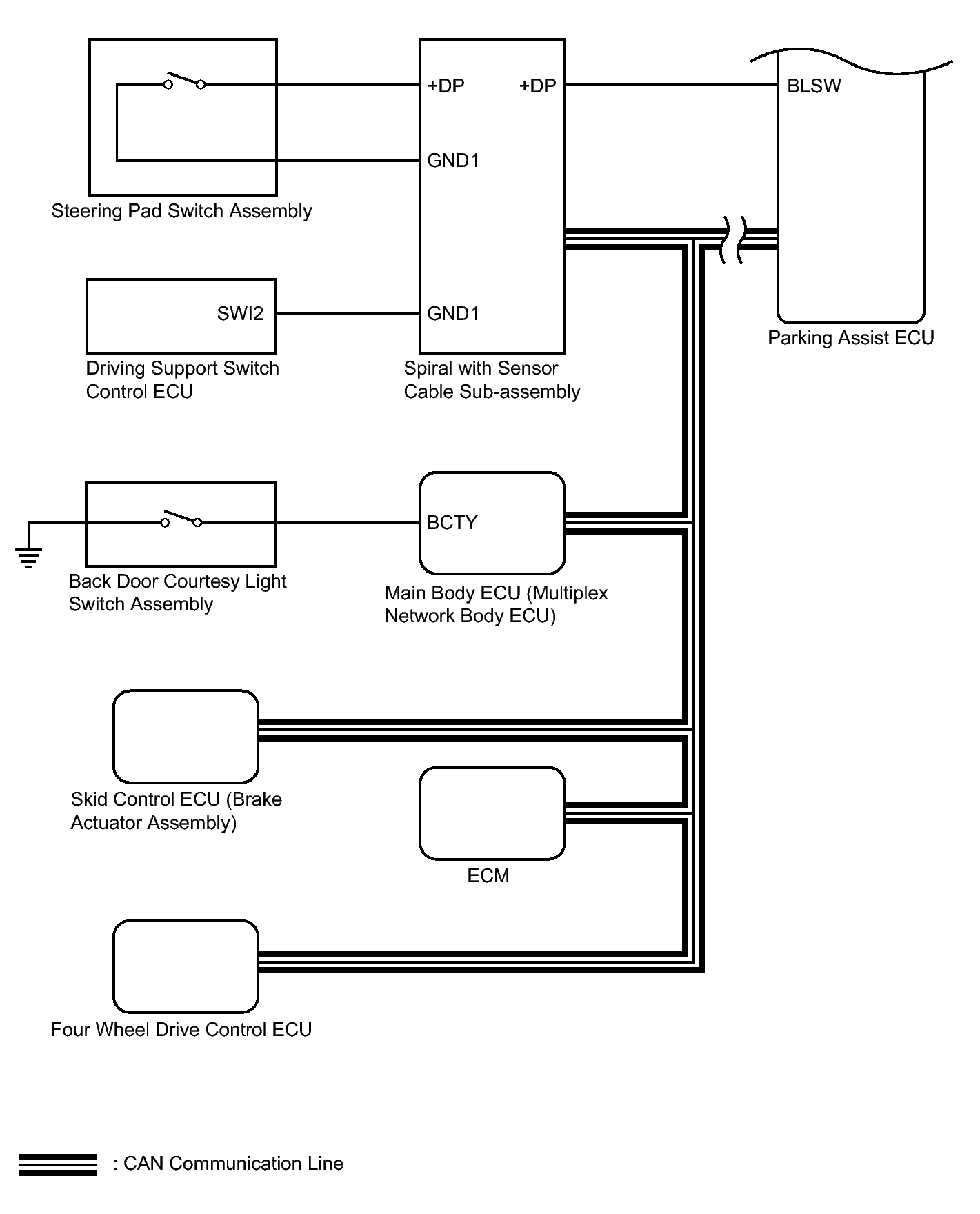

Fig 3: Wide View Front Monitor System Diagram (3 Of 3)
GTY456329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
Multi-media Module Receiver Assembly Parking Assist ECU Display AVC-LAN
Parking Assist ECU Multi-display Assembly Display GVIF cable
Multi-media Module Receiver Assembly Multi-display Assembly Display GVIF cable
Spiral with Sensor Cable Sub-assembly Parking Assist ECU Steering angle CAN
Skid Control ECU (Brake Actuator Assembly) Parking Assist ECU
  • Inner brake information
  • ABS ACT information
 CAN
Four Wheel Drive Control ECU Parking Assist ECU L4 Condition signal CAN
ECM Parking Assist ECU
  • Shift position information
  • 2WD/4WD information
  • Vehicle information
 CAN
Main Body ECU (Multiplex Network Body ECU) Parking Assist ECU
  • Vehicle information
  • Back door courtesy light switch signal
  • Mirror retract information
 CAN
