Components [04/2013 - 08/2015]

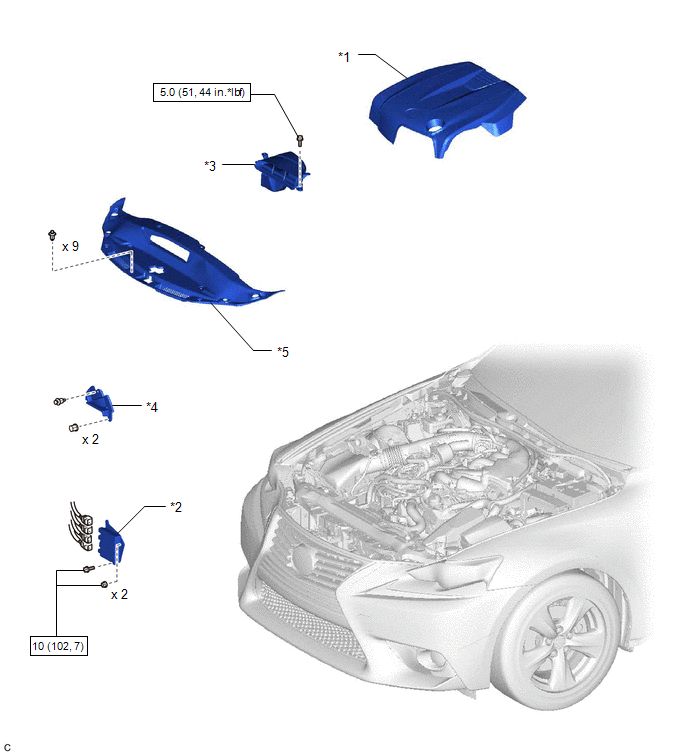

Fig 1: Injector Driver Replacement Components With Torque Specifications [04/2013 - 08/2015]
GTY468524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 V-BANK COVER SUB-ASSEMBLY *2 INJECTOR DRIVER
*3 INLET NO. 1 AIR CLEANER *4 NO. 1 ENGINE COVER
*5 COOL AIR INTAKE DUCT SEAL - -
N.m (kgf/cm, ft.lbf): Specified torque - -
