DTC P0087: Fuel Rail / System Pressure - Too Low [04/2013 - 08/2015]: Procedure

  1. CHECK FUEL LEAK (HIGH PRESSURE SIDE)
    1. Check around and beneath the vehicle for fuel leaks, fumes, etc.

      OK

      No fuel leaks present.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE FUEL LEAK POINT

    Result:

    OK

    See step  2

  2. CHECK OTHER DTCS OUTPUT (IN ADDITION TO DTC P0087)
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG) and turn the Techstream on.
    3. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
    4. Read the DTCs.

      Powertrain > Engine > Trouble Codes

      Result

      Result Proceed to
      DTC P0087 is output A
      DTC P0087 and other DTCs are output B

      HINT:

      If any DTCs other than P0087 are output, troubleshoot those DTCs first.

    Result:

    B

    GO TO DTC CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [04/2013 - 06/2014]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [06/2014 - 08/2015]

    Result:

    A

    See step  3

  3. CONFIRM IF VEHICLE HAS RUN OUT OF FUEL IN PAST
    1. Has the vehicle run out of fuel in the past?

      Result

      Proceed to
      YES
      NO

    Result:

    YES

    DTC CAUSED BY RUNNING OUT OF FUEL

    Result:

    NO

    See step  4

  4. CHECK MISFIRE COUNT (CYLINDER #1 (TO #6) MISFIRE COUNT)
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG) and turn the Techstream on.
    3. Start the engine and warm it up.
    4. Enter the following menus: Powertrain / Engine and ECT / Data List / Misfire / Cylinder #1 Misfire Count to Cylinder #6 Misfire Count.

      Powertrain > Engine > Data List

      Tester Display
      Cylinder #1 Misfire Count
      Cylinder #2 Misfire Count
      Cylinder #3 Misfire Count
      Cylinder #4 Misfire Count
      Cylinder #5 Misfire Count
      Cylinder #6 Misfire Count
    5. All on the engine to idle.
    6. Read each value of Cylinder #1 (to #6) Misfire Count displayed on the Techstream.
    7. Check if there is a particular cylinder that the misfire count is concentrated on.

      Result

      Result Proceed to
      No misfire counts, or misfire counts occur randomly in all cylinders A
      Misfire counts occur in a particular cylinder B

      HINT:

      Perform "Inspection After Repair" after replacing the fuel injector assembly.

      Refer to INITIALIZATION [04/2013 - 08/2015]

    Result:

    B

    REPLACE FUEL INJECTOR ASSEMBLY. Refer to  REMOVAL [04/2013 - 08/2015]

    Result:

    A

    See step  5

  5. CHECK FUEL DELIVERY PIPE SUB-ASSEMBLY (FUEL PRESSURE SENSOR)
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG) and turn the Techstream on.
    3. Enter the following menus: Powertrain / Engine and ECT / Data List / Gas General / Fuel Press.

      Powertrain > Engine > Data List

      Tester Display
      Fuel Press
    4. Start the engine.
    5. Check that the fuel pressure fluctuates when the engine condition changes from idling to racing.

      Result

      Result Proceed to
      Fuel pressure does not rise A
      Fuel pressure does not fluctuate B
      Fuel pressure fluctuates C

    Result:

    B

    REPLACE FUEL DELIVERY PIPE SUB-ASSEMBLY (FUEL PRESSURE SENSOR). Refer to  REMOVAL [04/2013 - 08/2015]

    Result:

    C

    See step  8

    Result:

    A

    See step  6

  6. CHECK FUEL PUMP OPERATION (LOW PRESSURE SIDE)
    1. Check the fuel pump operation.

      Refer to PROCEDURE - Step 1

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    GO TO FUEL PUMP CONTROL CIRCUIT. Refer to  Fuel Pump Control Circuit [04/2013 - 08/2015]

    Result:

    OK

    See step  7

  7. CHECK FUEL PRESSURE (LOW PRESSURE SIDE)
    1. Check the fuel pressure (low pressure side).

      Refer to PROCEDURE - Step 2

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE FUEL SYSTEM (PRESSURE REGULATOR, PIPE LINE AND FILTER)

    Result:

    OK

    See step  8

  8. CHECK FUEL LEAK (HIGH PRESSURE FUEL LINE)
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG) and turn the Techstream on.
    3. Enter the following menus: Powertrain / Engine and ECT / Data List / Gas General / Fuel Press.

      Powertrain > Engine > Data List

      Tester Display
      Fuel Press
    4. Start the engine.
    5. Check if the fuel pressure fluctuates when the engine switch is turned off.

      HINT:

      Turn the engine switch off and on (IG) before checking the fuel pressure.

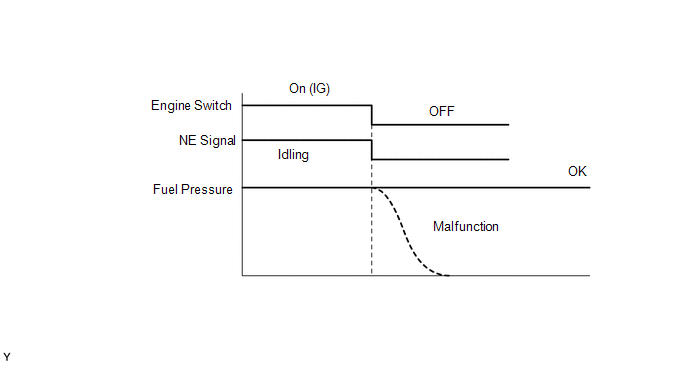

      GTY466741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      Result Proceed to
      Fuel pressure is almost constant, or fluctuations are gradual A
      Fuel pressure drops suddenly B

    Result:

    B

    See step  13

    Result:

    A

    See step  9

  9. REPLACE INJECTOR DRIVER (EDU)
    1. Replace the injector driver (EDU).

      Refer to REMOVAL [04/2013 - 08/2015]

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  10

  10. CHECK IF DTC OUTPUT RECURS (SEE IF DTC P0087 IS OUTPUT AGAIN)
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG) and turn the Techstream on.
    3. Clear the DTCs.

      Powertrain > Engine > Clear DTCs

    4. Turn the engine switch off and wait for at least 30 seconds.
    5. Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.
    6. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
    7. Read the DTCs.

      Powertrain > Engine > Trouble Codes

      Result

      Result Proceed to
      DTC P0087 is output A
      DTCs are not output B

    Result:

    B

    END

    Result:

    A

    See step  11

  11. REPLACE FUEL PUMP (FOR HIGH PRESSURE)
    1. Replace the fuel pump (for high pressure).

      Refer to REMOVAL [04/2013 - 08/2015]

      HINT:

      Perform "Inspection After Repair" after replacing the fuel pump (for high pressure).

      Refer to INITIALIZATION [04/2013 - 08/2015]

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  12

  12. CHECK IF DTC OUTPUT RECURS (SEE IF DTC P0087 IS OUTPUT AGAIN)
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG) and turn the Techstream on.
    3. Clear the DTCs.

      Powertrain > Engine > Clear DTCs

    4. Turn the engine switch off and wait for at least 30 seconds.
    5. Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.
    6. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
    7. Read the DTCs.

      Powertrain > Engine > Trouble Codes

      Result

      Result Proceed to
      DTC P0087 is output A
      DTCs are not output B

    Result:

    A

    REPLACE ECM. Refer to  REMOVAL [04/2013 - 08/2015]

    Result:

    B

    END

  13. CHECK FUEL RELIEF VALVE ASSEMBLY
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG) and turn the Techstream on.
    3. Enter the following menus: Powertrain / Engine and ECT / Data List / Gas General / Fuel Press.

      Powertrain > Engine > Data List

      Tester Display
      Fuel Press
    4. Start the engine.
    5. Check if the fuel pressure fluctuates when the fuel hose is pressed with your fingers.

      Result

      Result Proceed to
      Pressing the hose raises the fuel pressure slightly A
      Fuel pressure does not fluctuate B

    Result:

    A

    See step  9

    Result:

    B

    REPLACE FUEL RELIEF VALVE ASSEMBLY. Refer to  REMOVAL [04/2013 - 08/2015]
