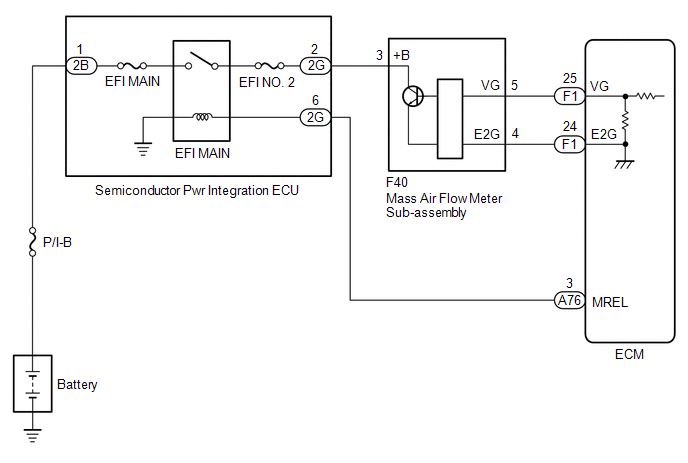

DTC P0102: Mass or Volume Air Flow Circuit Low Input; DTC P0103: Mass or Volume Air Flow Circuit High Input [04/2013 - 06/2014]: Wiring Diagram

GTY499779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
