Components [04/2013 - 08/2015]

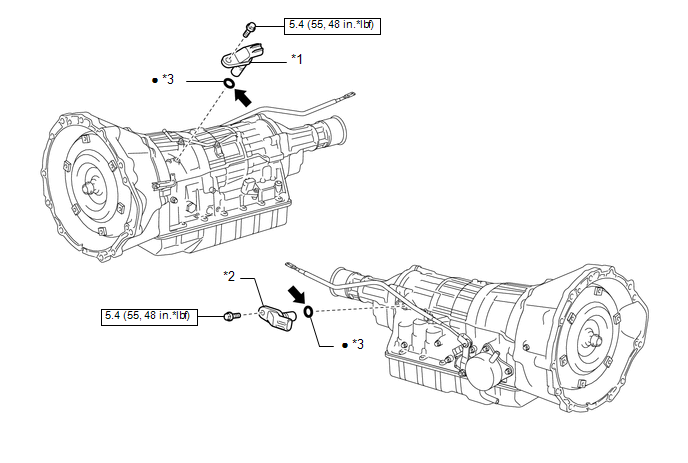

Fig 1: Speed Sensor Replacement Components With Torque Specifications [04/2013 - 08/2015]
GTY461379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TRANSMISSION REVOLUTION SENSOR (NT) *2 TRANSMISSION REVOLUTION SENSOR (SP2)
*3 O-RING - -
N.m (kgf/cm, ft.lbf) : Specified torque • Non-reusable part
Toyota Genuine ATF WS - -
