System Diagram [04/2013 - 06/2014]

WARNING: This page is about a different car, the 2014 Lexus IS 350 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

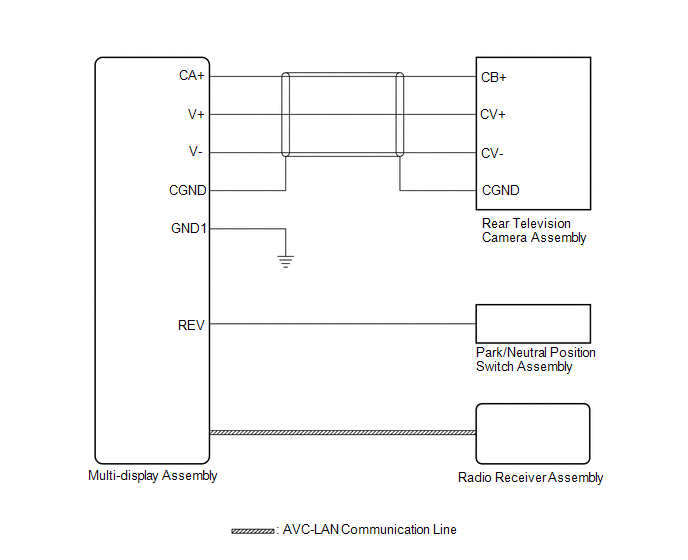

    Fig 1: Rear View Monitor System Wiring Diagram
    GTY467928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
