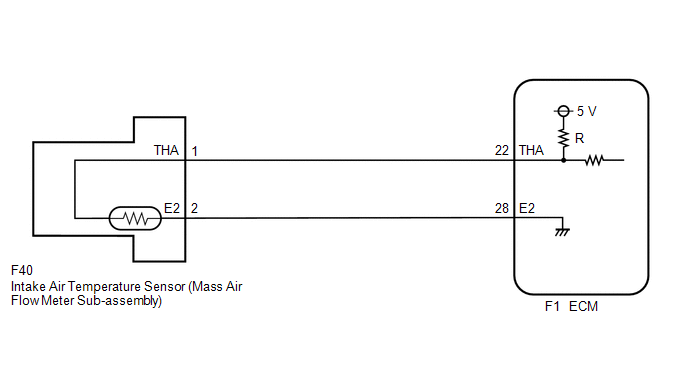

DTC P0112: Intake Air Temperature Circuit Low Input; DTC P0113: Intake Air Temperature Circuit High Input [04/2013 - 10/2017]: Wiring Diagram

GTY469290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
