Power Steering System - Diagnostics - Introduction
>>
Power Steering System
>>
System Diagram [11/2021 - ]
>>
System Diagram [11/2021 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [11/2021 - ]

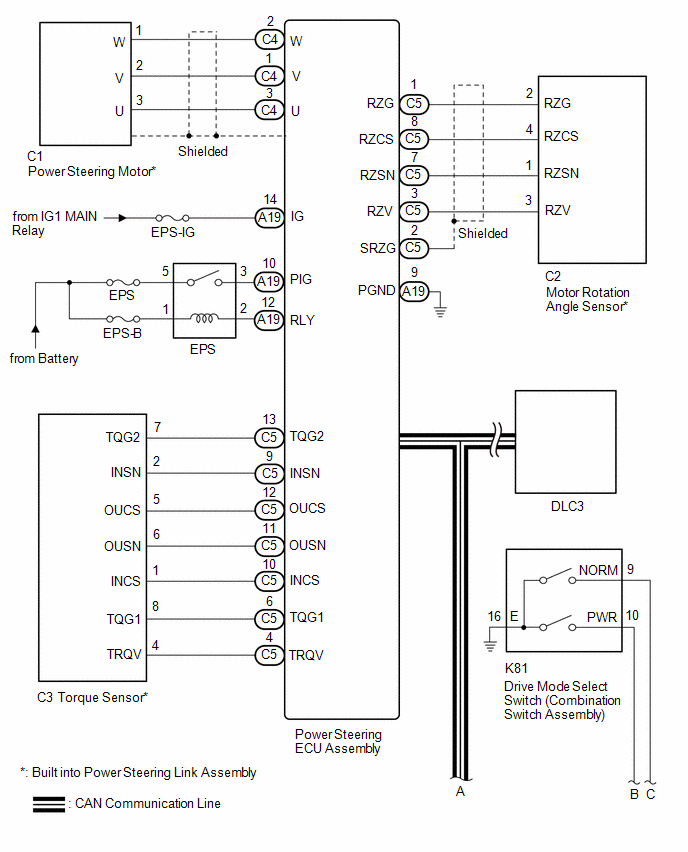

Fig 1: Power Steering System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

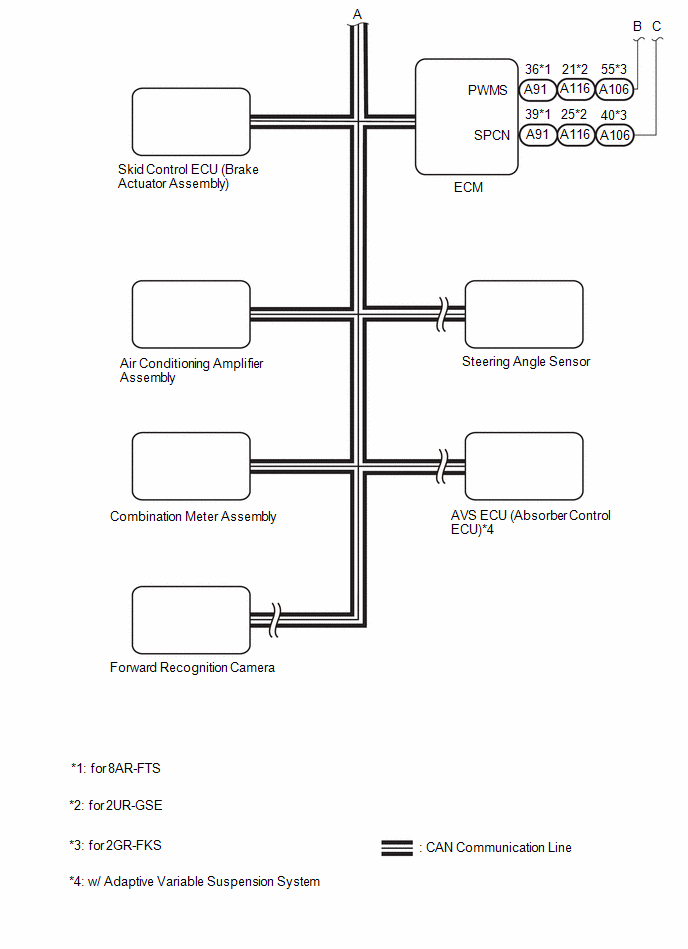

Fig 2: Power Steering System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
