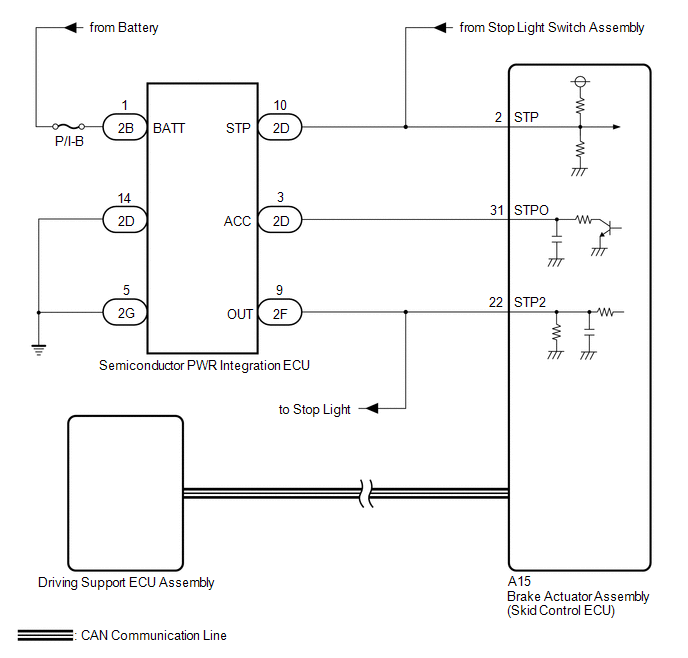

DTC C1A4B: Stop Light Relay Circuit [04/2013 - 08/2015]: Wiring Diagram

GTY643416

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
