Engine Control System (Diagnostic Codes P0340-P1366)
>>
SFI System
>>
DTC P0661: Intake Manifold Tuning Valve Control Circuit Low; DTC P0662: Intake Manifold Tuning Valve Control Circuit High [10/2014 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P0661: Intake Manifold Tuning Valve Control Circuit Low; DTC P0662: Intake Manifold Tuning Valve Control Circuit High [10/2014 - ]: Wiring Diagram

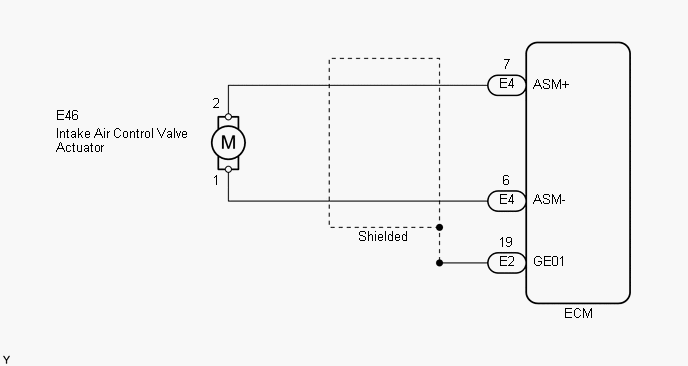

Fig 1: Intake Air Control Valve Actuator Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
