DTC P0705: Transmission Range Sensor Circuit (PRNDL Input) [10/2014 - ]: Wiring Diagram

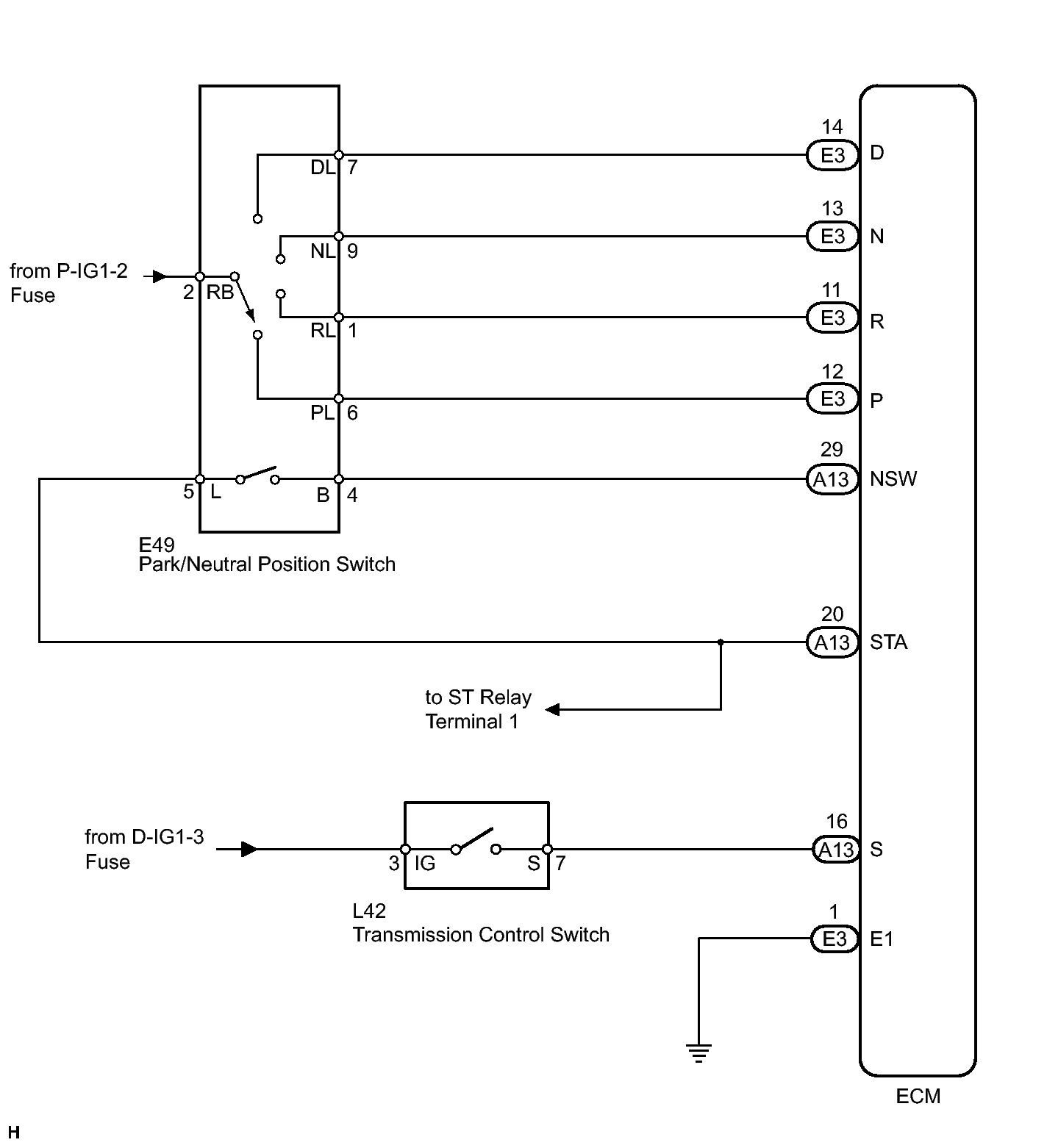

Fig 1: Park/Neutral Position Switch Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
