Rear Power Window RH does not Operate with Rear Power Window Switch RH [10/2014 - ]: Procedure

1. Check for LIN communication system DTCs related to the power window control system.

   OK

   LIN communication system DTCs are not output.

NG → See step   11

OK: Go to next step

1. Check if DTC B2312 is output.

   OK

   DTC B2312 is not output.

NG → See step   9

OK: Go to next step

1. Use the Data List to check if the power window regulator motor is functioning properly.
   RR-DOOR MOTOR:



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   RR Door P/W Up SW	Rear power window RH manual UP switch signal / ON or OFF	ON: Rear power window RH manual UP switch operated OFF: Rear power window switch RH not operated	-
   RR Door P/W Down SW	Rear power window RH manual DOWN switch signal / ON or OFF	ON: Rear power window RH manual DOWN switch operated OFF: Rear power window switch RH not operated	-

   OK

   Techstream display changes normally when rear power window switch RH is operated.

NG → See step   4

OK → See step   8

1. Disconnect the O2 ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the O7 switch connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O2-25 (SGND) - O7-5 (GND)	Always	Below 1 Ω
   O2-25 (SGND) or O7-5 (GND) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the O3 ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the O8 motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O3-5 (BDRJ) - O8-2 (B)	Always	Below 1 Ω
   O3-2 (PWE) - O8-1 (E)	Always	Below 1 Ω
   O3-5 (BDRJ) or O8-2 (B) - Body ground	Always	10 kΩ or higher
   O3-2 (PWE) or O8-1 (E) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

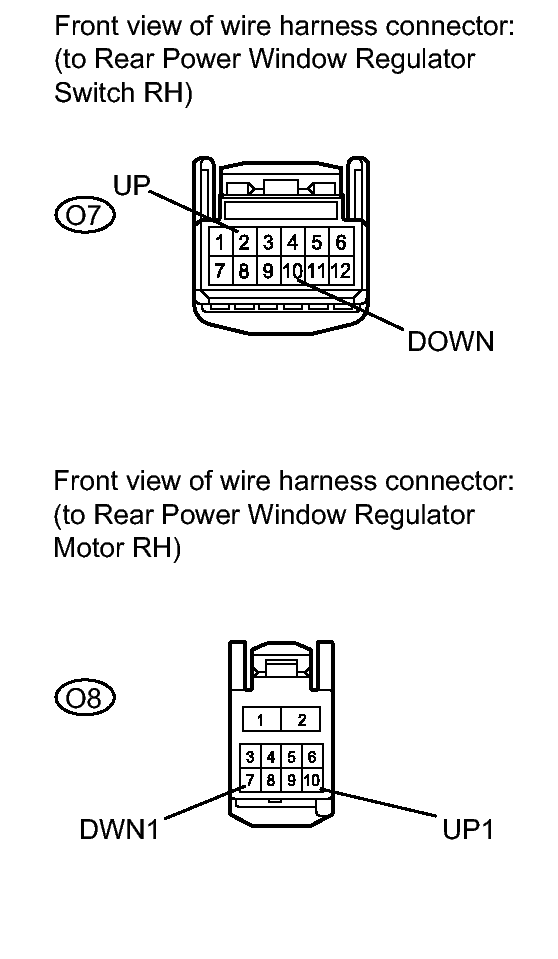

1. Disconnect the O7 switch connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the O8 motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O7-2 (UP) - O8-10 (UP1)	Always	Below 1 Ω
   O7-10 (DOWN) - O8-7 (DWN1)	Always	Below 1 Ω
   O7-2 (UP) or O8-10 (UP1) - Body ground	Always	10 kΩ or higher
   O7-10 (DOWN) or O8-7 (DWN1) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the switch.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   O7-2 (UP) - O7-5 (GND)	Manual UP operation	Below 1 Ω
   O7-10 (DOWN) - O7-5 (GND)	Manual DOWN operation	Below 1 Ω

NG → See step   10

OK → See step   8
