Components [10/2014 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

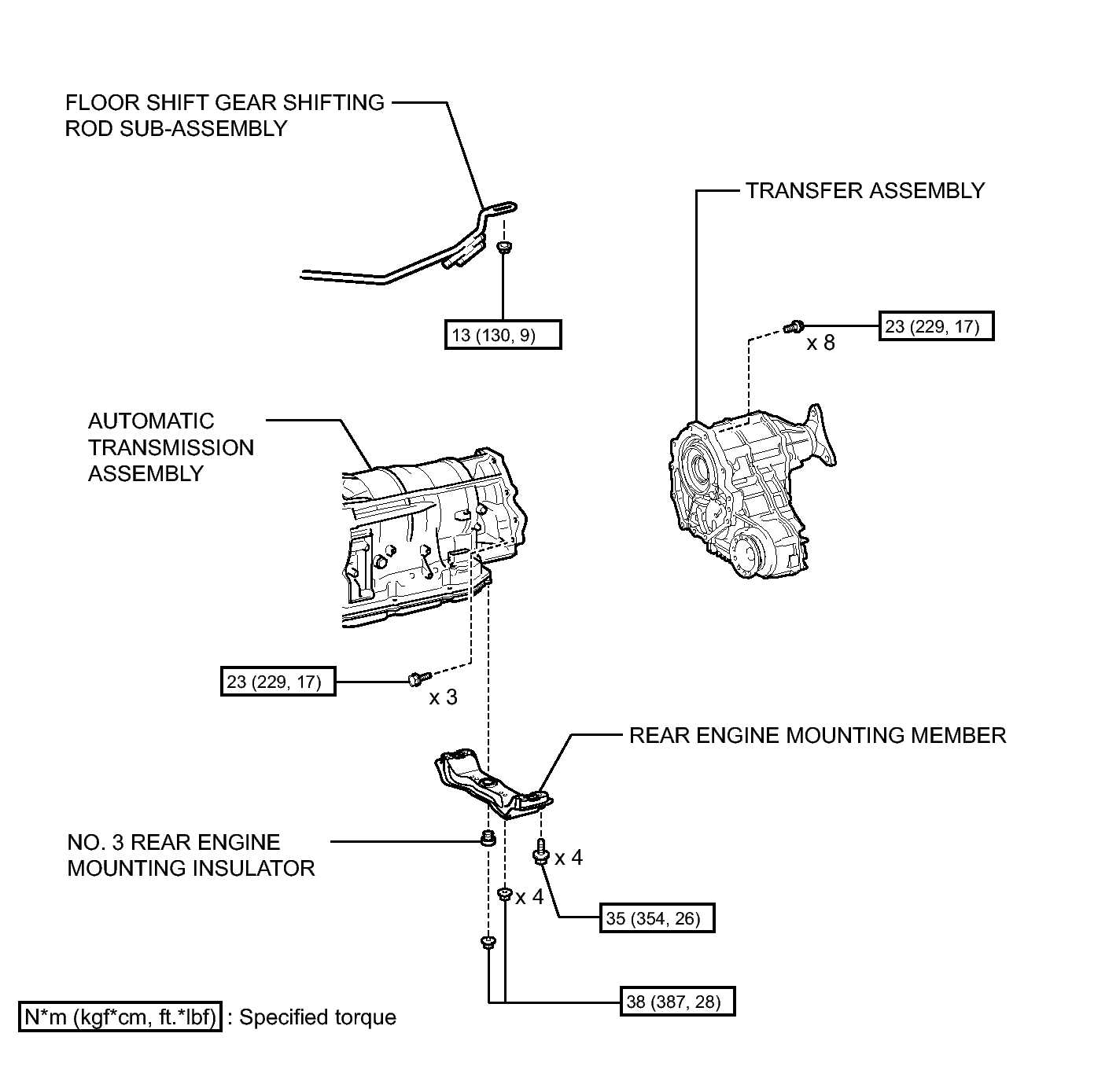

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specifications (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

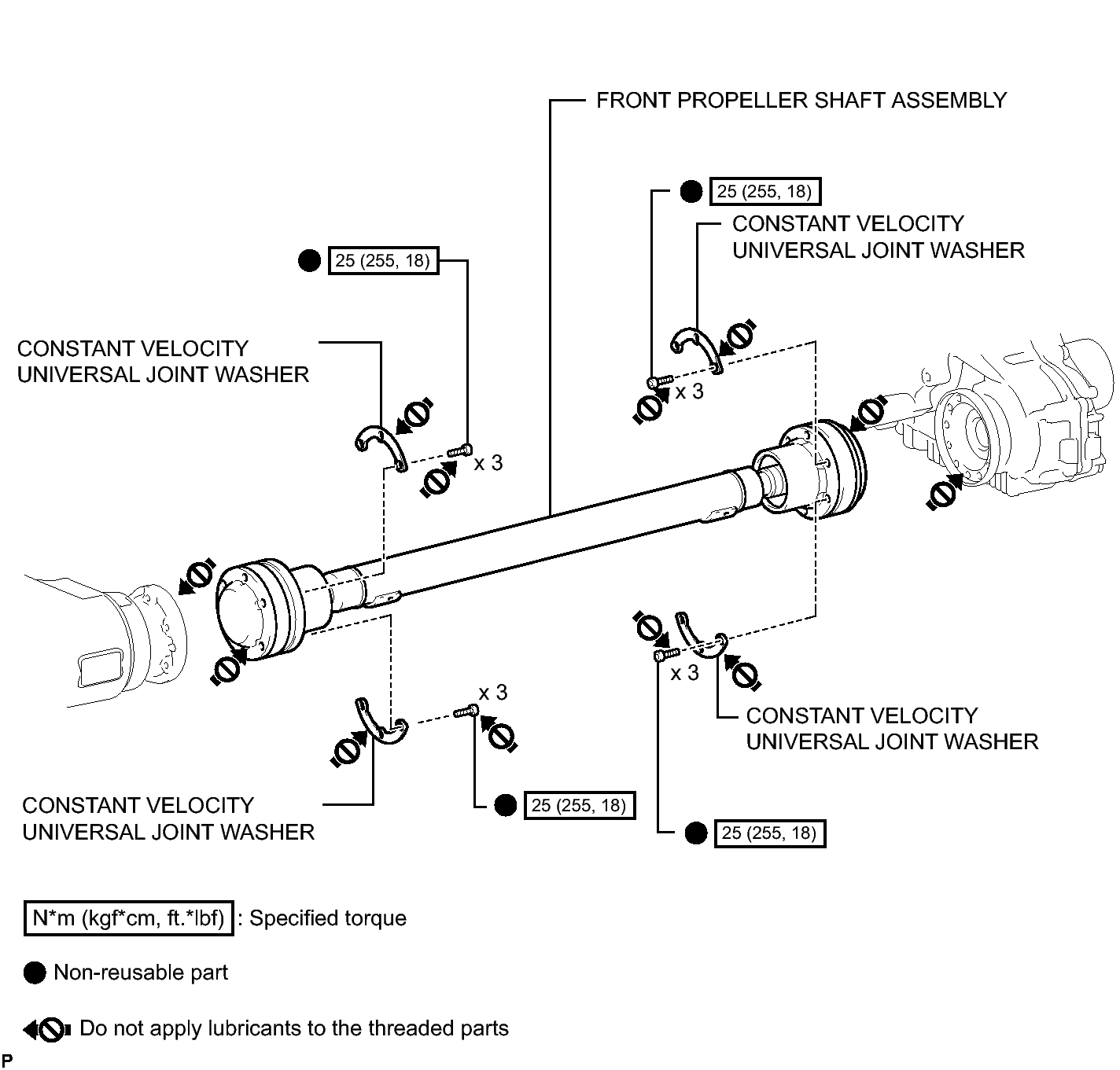

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specifications (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specifications (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specifications (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specifications (6 Of 8)

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specifications (7 Of 8)

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specifications (8 Of 8)
