Components [10/2014 - ]: Illustration

Fig 1: Identifying Seat Belt Control ECU Replacement Components (1 Of 2)
GTY407515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

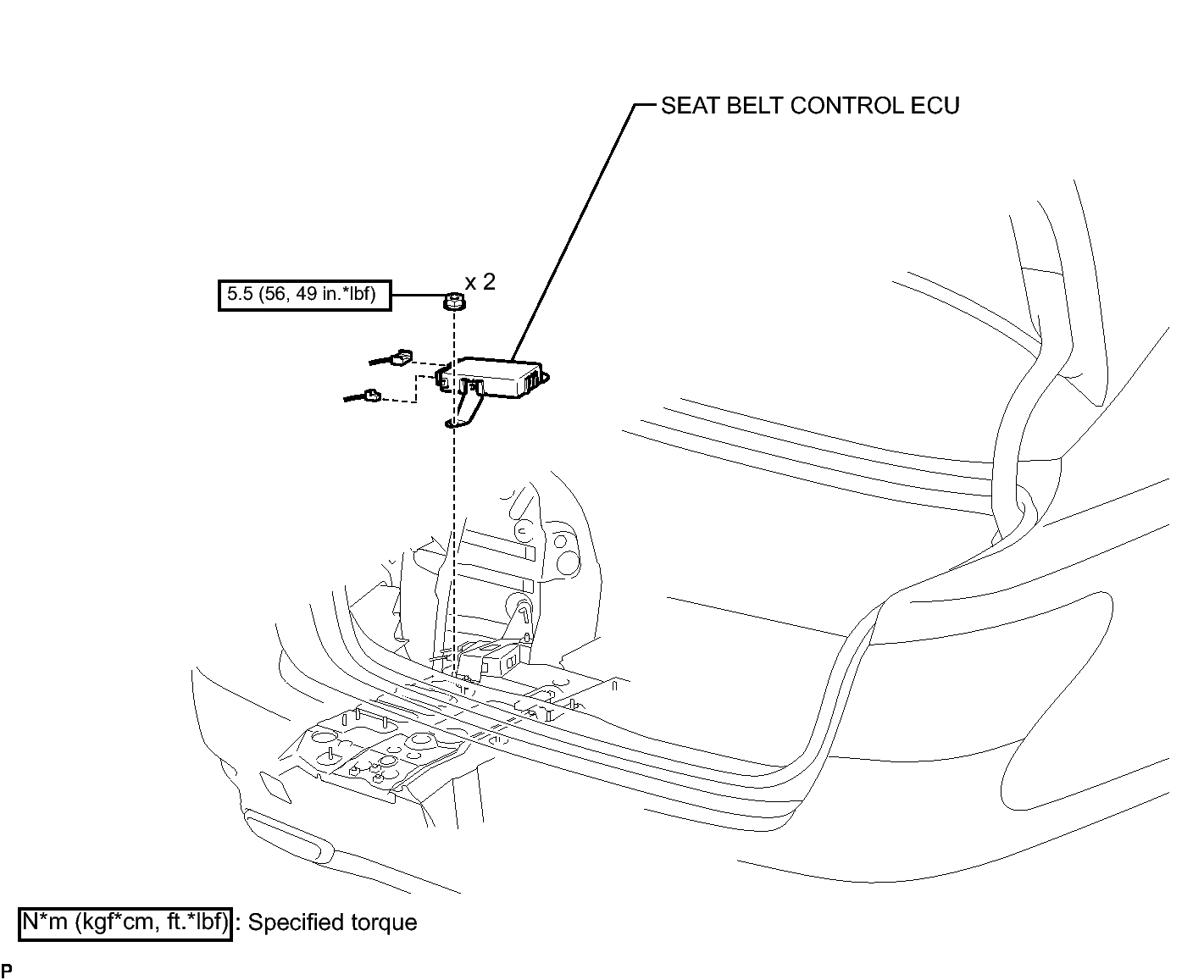

Fig 1: Identifying Seat Belt Control ECU Replacement Components With Torque Specifications (2 Of 2)
GTY403562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
