Parts Location [08/2013 - ]: Illustration

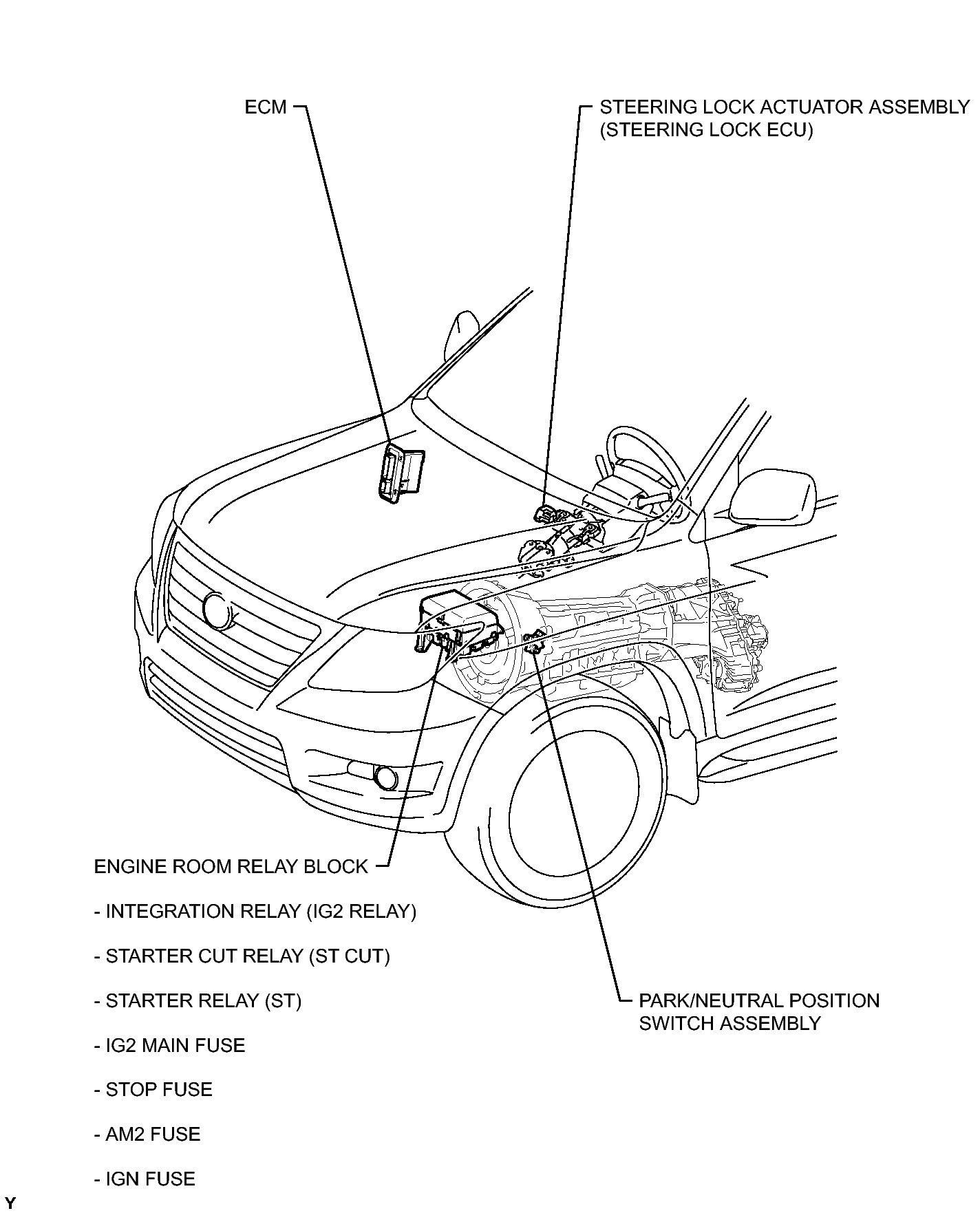

Fig 1: Identifying Smart Access System With Push-Button Start Components Location (For Start Function) (1 Of 2)
GTY149235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

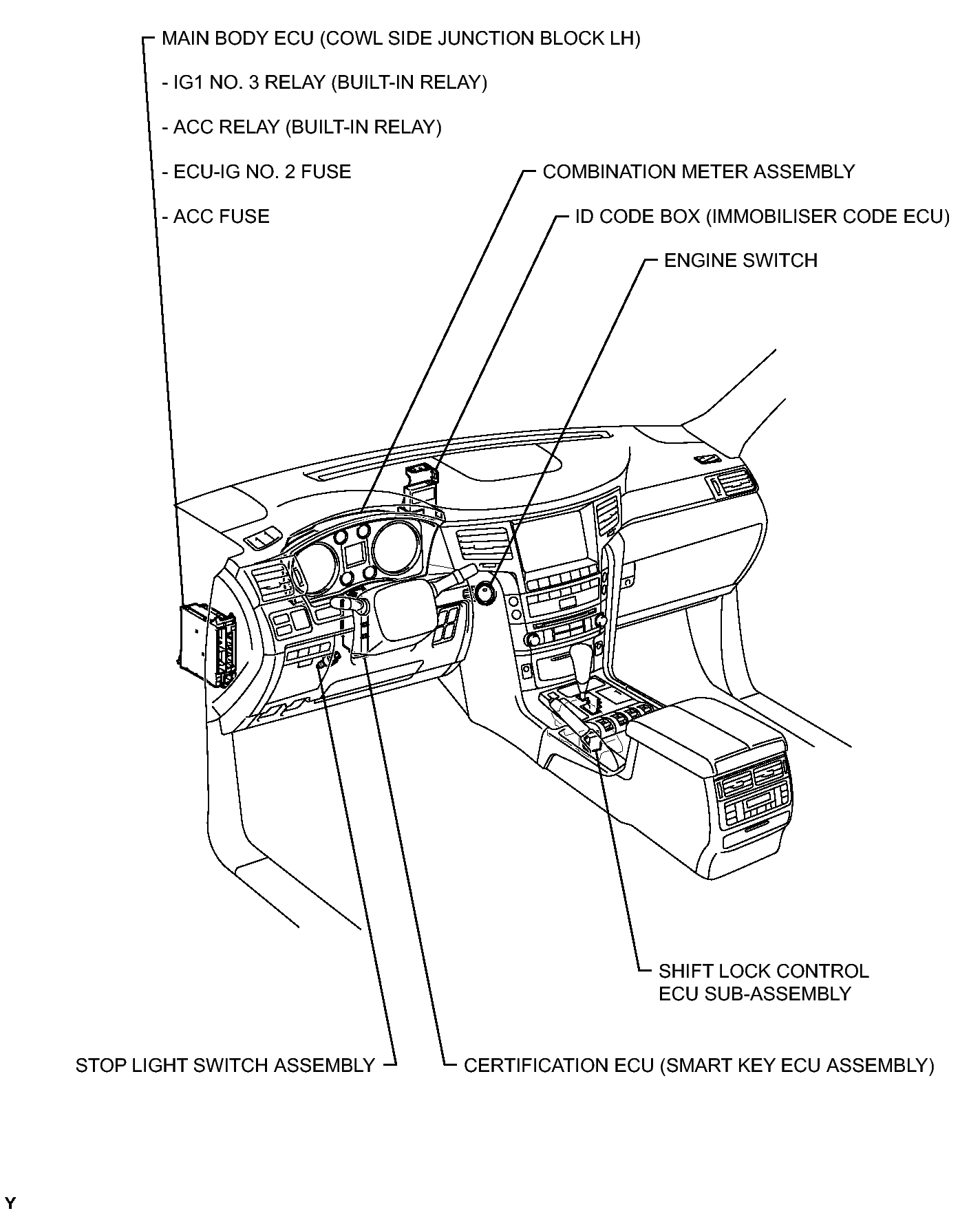

Fig 1: Identifying Smart Access System With Push-Button Start Components Location (For Start Function) (2 Of 2)
GTY149110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
