System Diagram [05/2019 - ]

  1. SYSTEM DIAGRAM

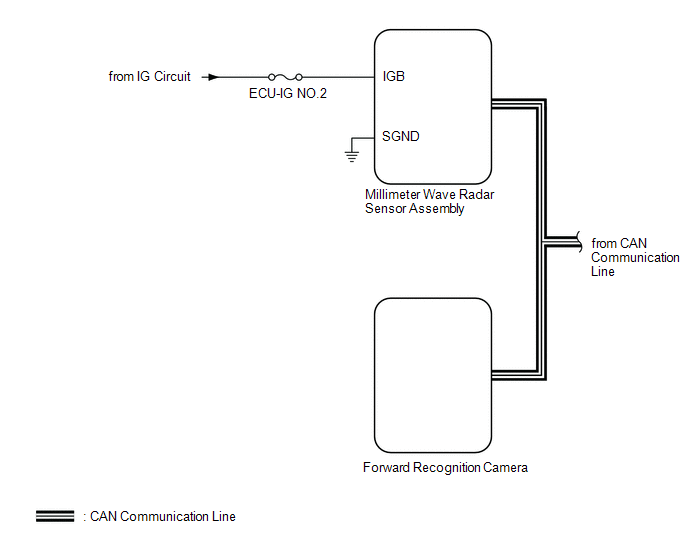

    Fig 1: Front Radar Sensor System Diagram (1 Of 2)
    GTY955621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. LOCAL CAN CIRCUIT
    Fig 2: Front Radar Sensor System Diagram (2 Of 2)
    GTY890077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
