In-line Connector End View (AI5)

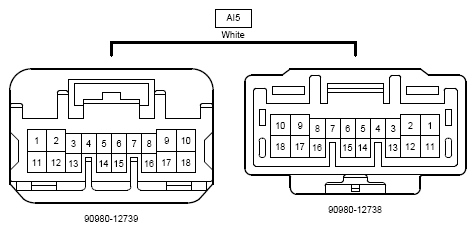

Fig 1: In-line Connector End View (AI5)
G10340795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
