DTC Check / Clear [10/2014 - 05/2019]

NOTE:

When the diagnosis system is changed from normal mode to check mode or vice versa, all DTCs and freeze frame data recorded in normal mode are cleared. Before changing modes, always check and make a note of DTCs and freeze frame data.

HINT:

DTCs which are stored in the ECM can be displayed on the Techstream. The Techstream can display the confirmed, pending and permanent DTCs.
If a malfunction is detected during the current driving cycle, confirmed and permanent DTCs are stored.
Some DTCs are not stored if the ECM does not detect the same malfunction again during a second consecutive driving cycle. However, such malfunctions, detected on only one occasion, are stored as pending DTCs.
confirmed and pending DTCs can be cleared by using the Techstream or by disconnecting the cable from the negative (-) battery terminal. However, permanent DTCs cannot be cleared using either of these two methods.
After clearing current DTCs using the Techstream (or by disconnecting the cable from the negative (-) battery terminal), permanent DTCs can be cleared when the universal trip is performed and then the system is determined to be normal for the relevant DTCs. The driving pattern to obtain a normal judgment is described under the "Confirmation Driving Pattern" for the respective DTC.
To clear permanent DTCs, all of the following conditions must be are met:
- There is a history that universal trip driving was performed.
- The vehicle has been judged as normal for 2 trips. (Normal judgment does not have to be performed in 2 consecutive trip, but normal judgment should occur in the latest trip.) (not for misfire and fuel system DTCs)
- No malfunctions are detected.

2 TRIP DETECTION EXAMPLES

Pending DTC	Store condition	Malfunction detected
Pending DTC	Clear condition	System determined to be normal or DTCs cleared using Techstream or Cable disconnected from negative (-) battery terminal
Confirmed DTC	Store condition	Malfunction detected (2nd trip)
Confirmed DTC	Clear condition	No malfunctions in 40 driving cycles or DTCs cleared using Techstream or Cable disconnected from negative (-) battery terminal
Permanent DTC	Store condition	Malfunction detected (2nd trip)
Permanent DTC	Clear condition	Engine switch turned on (IG) after normal judgment obtained in 3 consecutive driving cycles or After DTCs cleared using Techstream or cable disconnected from negative (-) battery terminal, universal trip performed and normal judgment obtained for 2 trips (not for misfire and fuel system DTCs) or After DTCs cleared using Techstream or cable disconnected from negative (-) battery terminal, malfunction not detected when universal trip driving performed (misfire and fuel system DTCs)
MIL	ON	Malfunction detected (2nd trip)
MIL	OFF	Engine switch turned on (IG) after normal judgment obtained in 3 consecutive driving cycles or DTCs cleared using Techstream or Cable disconnected from negative (-) battery terminal

Fig 1: Confirmation Driving Pattern (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Confirmation Driving Pattern (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Obtaining a normal judgment and performing a universal trip driving pattern can be done in the same driving cycle or in different driving cycles.
It is unnecessary to obtain a normal judgment if the DTCs are misfire or fuel system DTCs.

CHECK DTC

Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menus: Powertrain / Engine / Trouble Codes.
Powertrain > Engine > Trouble Codes

Check the DTC(s) and freeze frame data, and then write them down.

HINT:

Techstream Display	Description
Test Failed	Shows the malfunction judgment results during the current trip.
Pending	Shows the malfunction judgment results up to now. (Indicates the possibility of a malfunction when no DTC is confirmed.)
Confirmed	Shows the DTCs confirmed up to now. (The number of current trips differs for each DTC.)

Check the details of the DTC(s).
Refer to DIAGNOSTIC TROUBLE CODE CHART [10/2014 - 09/2015] , or refer to DIAGNOSTIC TROUBLE CODE CHART [09/2015 - 09/2016] , or refer to DIAGNOSTIC TROUBLE CODE CHART [09/2016 - 09/2017] , or refer to DIAGNOSTIC TROUBLE CODE CHART [09/2017 - 05/2018] , or refer to DIAGNOSTIC TROUBLE CODE CHART [05/2018 - 05/2019]

CLEAR DTC (Pending and Confirmed DTC)
1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine / Trouble Codes.
5. Clear the DTCs.
  Powertrain > Engine > Clear DTCs
CLEAR DTC (Pending and Confirmed DTC without using Techstream)
1. Perform either of the following operations:
  NOTE:
  After turning engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

  Refer to PRECAUTION [10/2014 - 09/2017] , or refer to PRECAUTION [09/2017 - 05/2019]
  1. Disconnect the cable from the negative (-) battery terminal for more than 1 minute.
  2. Remove the EFI-MAIN NO. 1 and ETCS fuses from the No. 1 engine room relay block and junction block assembly located inside the engine compartment for more than 1 minute.
CLEAR PERMANENT DTC
OUTLINE
1. After clearing current DTCs using the Techstream (or by disconnecting the cable from the negative (-) battery terminal), permanent DTCs can be cleared when the universal trip is performed and then the system is determined to be normal for the relevant DTCs. The driving pattern to obtain a normal judgment is described under the "Confirmation Driving Pattern" for the respective DTC.
  To clear permanent DTCs, all of the following conditions must be are met:
  - There is a history that universal trip driving was performed.
  - The vehicle has been judged as normal for 2 trips. (Normal judgment does not have to be performed in 2 consecutive trip, but normal judgment should occur in the latest trip.) (not for misfire and fuel system DTCs)
  - No malfunctions are detected.
1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine / Trouble Codes.
  Powertrain > Engine > Trouble Codes

  HINT:

  If "PERMANENT" in the top right of the screen displays "YES", permanent DTCs are stored.
5. Select the "Generic" tab.
6. Check if permanent DTCs are stored.
  HINT:

  If permanent DTCs are not output, it is not necessary to continue this procedure.
7. Clear the DTCs.
  Powertrain > Engine > Clear DTCs

  NOTE:
  Do not clear the DTCs or disconnect the cable from the battery terminal after performing this step.
8. Perform the universal trip.
  HINT:

  The driving pattern to obtain a normal judgment and the universal trip driving can be performed consecutively in the same driving cycle.

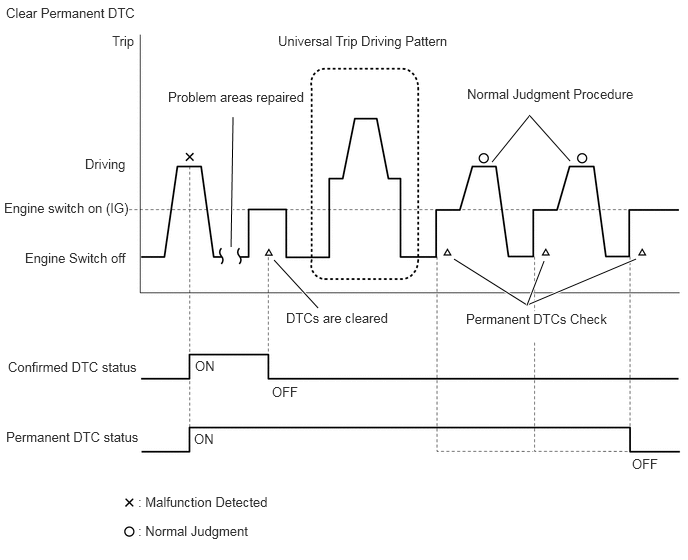

  Fig 3: Clear Permanent DTC Driving Pattern
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 4: Universal Trip Driving Pattern
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Start the engine and wait for 30 seconds or more.
  2. Drive the vehicle at 40 km/h (25 mph) or more for a total of 5 minutes or more.
    NOTE:
    When performing a driving pattern, obey all speed limits and traffic laws.

    HINT:

    It is possible to complete the drive pattern even if the vehicle decelerates to less than 40 km/h (25 mph) during the driving cycle provided that the vehicle is driven at 40 km/h (25 mph) or more for a total of 5 minutes.
  3. Allow 10 minutes or more to elapse from the time the engine started.
9. Turn the engine switch off and wait for 2 minutes or more.
10. Turn the engine switch on (IG).
11. Enter the following menus: Powertrain / Engine / Trouble Codes.
  Powertrain > Engine > Trouble Codes
12. Check that the permanent DTCs have been cleared.
  HINT:

  If permanent DTCs are not output, it is not necessary to continue this procedure.
13. Perform the normal judgment procedure in the respective confirmation driving pattern of each output DTC.
  HINT:
  - Confirmation driving patterns do not need to be performed for misfire and fuel system DTCs.
  - Do not turn the engine switch off by mistake during this step.
14. Start the engine and wait for 5 seconds or more.
15. Turn the engine switch off and wait for 2 minutes or more.
16. Turn the engine switch on (IG).
17. Enter the following menus: Powertrain / Engine / Trouble Codes.
  Powertrain > Engine > Trouble Codes
18. Check that the permanent DTCs have been cleared.
  HINT:

  If permanent DTCs are not output, it is not necessary to continue this procedure.
19. Perform the normal judgment procedure in the respective confirmation driving pattern of each output DTC.
  HINT:
  - Confirmation driving patterns do not need to be performed for misfire and fuel system DTCs.
  - Do not turn the engine switch off by mistake during this step.
20. Start the engine and wait for 5 seconds or more.
21. Turn the engine switch off and wait for 2 minutes or more.
22. Turn the engine switch on (IG).
23. Enter the following menus: Powertrain / Engine / Trouble Codes.
  Powertrain > Engine > Trouble Codes
24. Check that the permanent DTCs have been cleared.
