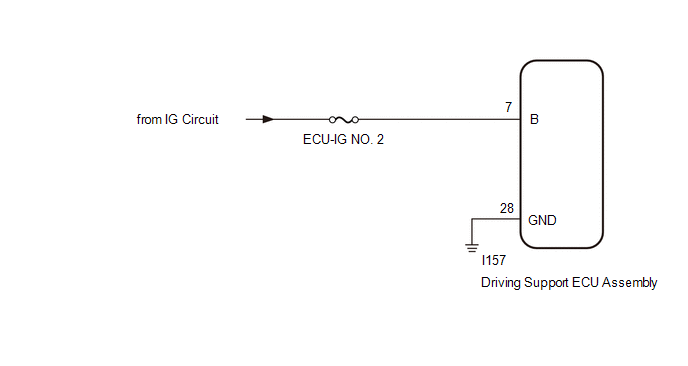

ECU Power Source Circuit [09/2017 - 05/2019]: Wiring Diagram

GTY831897

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
