System Description [05/2018 - ]

WARNING: This page is about a different car, the 2021 Lexus NX 300h, 2020 Lexus NX 300h, 2019 Lexus NX 300h, 2018 Lexus NX 300h, and 2017 Lexus NX 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. GENERAL
    1. This system has front, passenger side, driver side and rear television camera assemblies mounted around the vehicle to display around the vehicle on the multi-display assembly. The display panel also shows a composite view consisting of the area behind the vehicle and parking guidelines to assist the driver in parking the vehicle by monitoring the area around the vehicle.
    2. This system consists of the following components:
      1. *: w/ Blind Spot Monitor System
      1. Parking assist ECU
      2. No. 2 combination switch assembly (panoramic view monitor main switch)
      3. Rear television camera assembly
      4. Front television camera assembly
      5. Side television camera assembly LH
      6. Side television camera assembly RH
      7. Radio receiver assembly
      8. Multi-display assembly
      9. Steering sensor
      10. Brake booster with master cylinder assembly (skid control ECU)
      11. Main body ECU (multiplex network body ECU)
      12. Clearance warning ECU assembly
      13. Hybrid vehicle control ECU
      14. Blind spot monitor sensor LH*
      15. Park/neutral position switch assembly
    3. This system is equipped with a self-diagnosis system, which is operated from a designated window that appears on the display panel, just as in the audio and visual system*1 or navigation system*2.
      1. *1: w/ Audio and Visual System
      2. *2: w/ Navigation System
  2. FUNCTION OF COMPONENTS
    1. The parking assist ECU controls the system by using information from the following components.

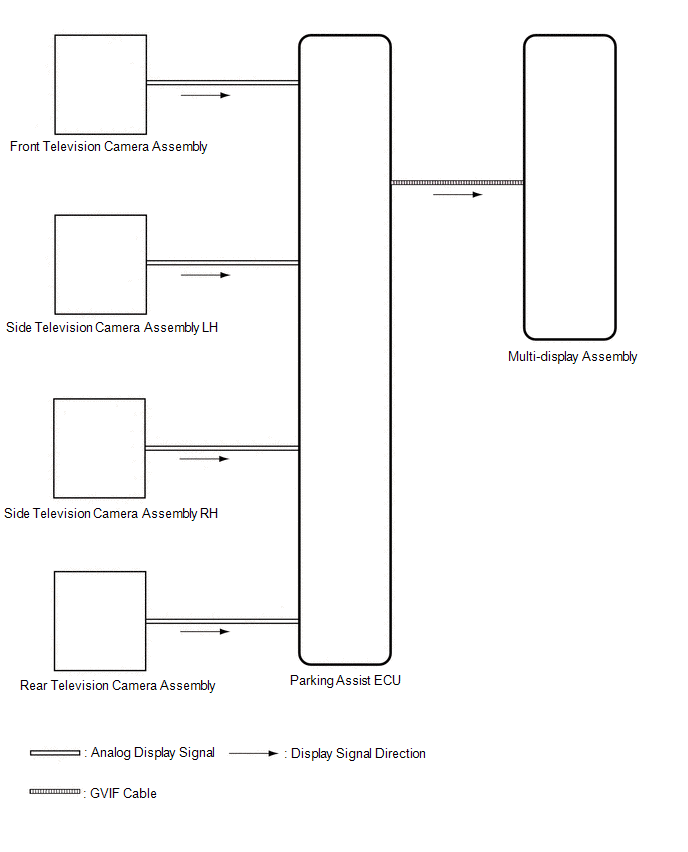

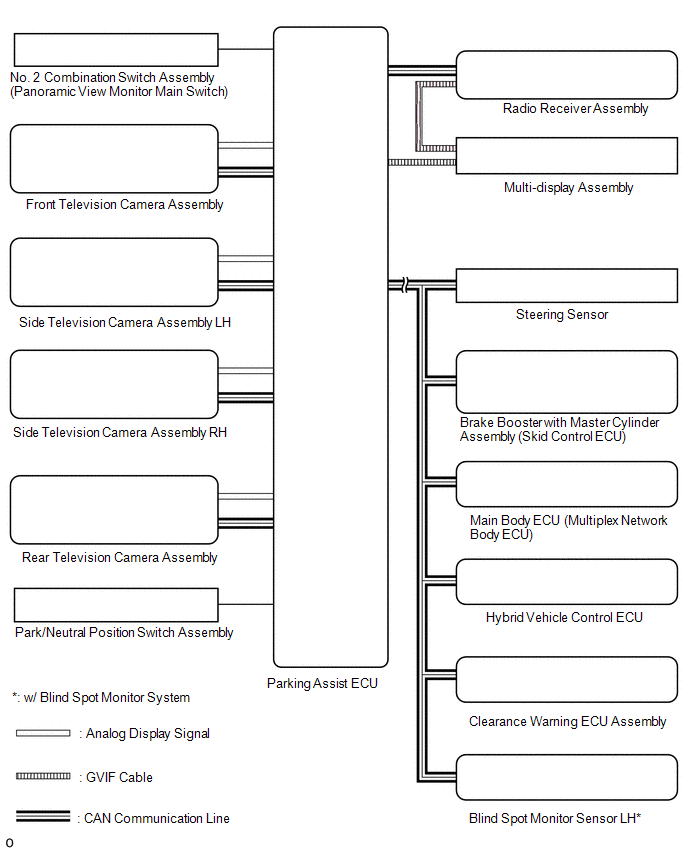

      Fig 1: Panoramic View Monitor System Operating Diagram
      GTY959949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Item Function
      Rear Television Camera Assembly
      • Mounted on the back door to transmit the rear view of the vehicle to the parking assist ECU.
      • Has a color video camera that uses a Complementary Metal Oxide Semiconductor (CMOS) and a wide-angle lens
      Front Television Camera Assembly Generates a video feed showing the front side of the vehicle and transmits the video to the parking assist ECU
      Side Television Camera Assembly LH Generates a video feed showing the left side of the vehicle and transmits the video to the parking assist ECU
      Side Television Camera Assembly RH Generates a video feed showing the right side of the vehicle and transmits the video to the parking assist ECU
      Parking Assist ECU
      • Turns the panoramic view monitor system ON and OFF according to the display conditions, based on the received panoramic view monitor main switch signals, shift position signals, and vehicle speed signals
      • Sends the display request signals for the panoramic view and wide front view screen, panoramic view and side clearance view screen, panoramic view and cornering view screen, panoramic view and rear view screen, panoramic view and wide rear view screen, see through view screen, or moving view screen to the multi-display assembly according to the display conditions, based on the received panoramic view monitor main switch signals, shift position signals, and vehicle speed signals
      • Sends the display switching request signals for the panoramic view and wide front view screen, panoramic view and side clearance view screen, panoramic view and cornering view screen, panoramic view and rear view screen, panoramic view and wide rear view screen, see through view screen, or moving view screen to the multi-display assembly according to the display conditions, based on the received outer mirror retraction signals
      • Displays the composite image of the surrounding area images taken by each camera and the image calculated from vehicle status information such as the steering angle signals on the multi-display assembly screen
      • Renders each configuration page in the diagnosis window and outputs the screen to the multi-display assembly
      • Stops displaying the buttons and guidelines on the panoramic view and rear view monitor screen, or panoramic view and wide back view monitor screen when the screen is being displayed and a back door open status signal is received
      • Stores each configuration setting from the diagnosis window
      No. 2 Combination Switch Assembly (panoramic view monitor main switch) Sends switch operation signals to the parking assist ECU
      Radio Receiver Assembly Allows remote touch panel operations when the panoramic view monitor screen or diagnosis screen is displayed
      Steering Sensor Sends the steering angle signals and sensor status signals to the parking assist ECU via the CAN communication system
      Brake Booster with Master Cylinder Assembly (Skid Control ECU) Sends the vehicle speed signals, drive type signals, and system status signals to the parking assist ECU via the CAN communication system
      Hybrid Vehicle Control ECU
      • Sends the engine model signals, and system status signals to the parking assist ECU via the CAN communication system
      • Sends the shift position signals to the parking assist ECU via the CAN communication system
      Main Body ECU (Multiplex Network Body ECU)
      • Sends the back door courtesy light switch signal to the parking assist ECU via the CAN communication system.
      • Sends the mirror retract request signal to the parking assist ECU via the CAN communication system
      Clearance Warning ECU Assembly Sends information from each sonar via the CAN communication system
  3. Panoramic View Screen Display
    1. See-through view screen
      1. The entire area surrounding the vehicle is displayed.

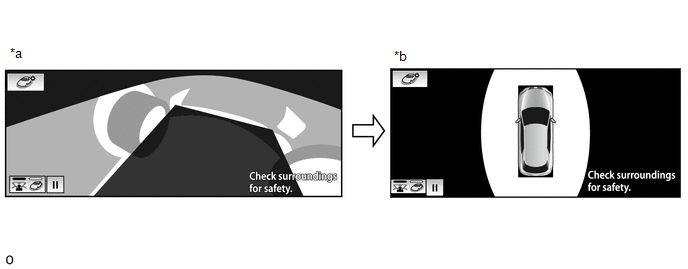

        Fig 2: See-Through View Screen Display
        GTY818247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Vehicle interior view *b Upper view
    2. Moving view screen
      1. The entire area surrounding the vehicle is displayed.

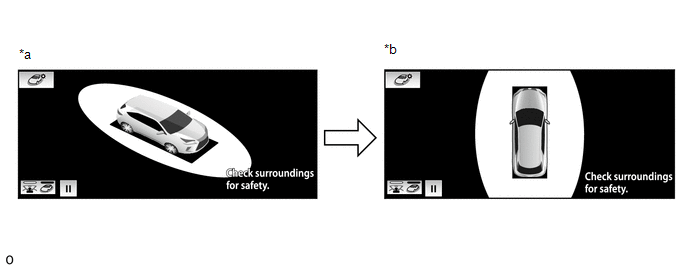

        Fig 3: Screen Display - Moving View Screen
        GTY817237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Slant upper view *b Upper view
    3. Panoramic view and cornering view screen
      1. If the steering wheel is turned approximately 180° or more from the straight condition, the system automatically changes from the side clearance view to the cornering view.

        The cornering view is displayed until the steering wheel is turned back within 90° of the straight condition.

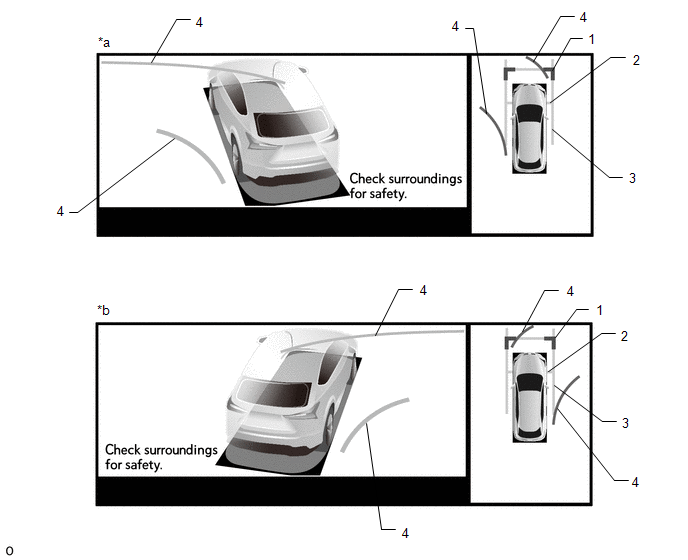

        Fig 4: Panoramic View And Cornering View Screen Display
        GTY819969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a When turning left *b When turning right

        HINT:

        Cornering view does not display when the vehicle speed is 12 km/h (7 mph) or more.

        PANORAMIC VIEW AND CORNERING VIEW SCREEN DESCRIPTION

        Signal Name Color
        (1) Front distance guide line Blue
        (2) Front wheel ground contact line Gray
        (3) Vehicle width parallel line Gray
        (4) Forward estimated course line Yellow
    4. Panoramic view and wide front view screen

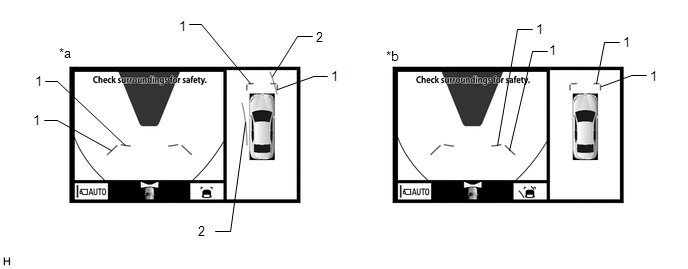

      Fig 5: Screen Display - Panoramic View And Wide Front View
      GTY765901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Estimated course line display mode *b Distance guide line display mode
      PANORAMIC VIEW AND WIDE FRONT VIEW SCREEN DESCRIPTION

      Signal Name Color Panoramic View and Wide Front View Screen
      Estimated course line display mode Distance guide line display mode
      (1) Front distance guide line Blue Displayed Displayed
      (2) Front wheel ground contact line Yellow Displayed Not displayed
    5. Panoramic View and Side Clearance View Screen

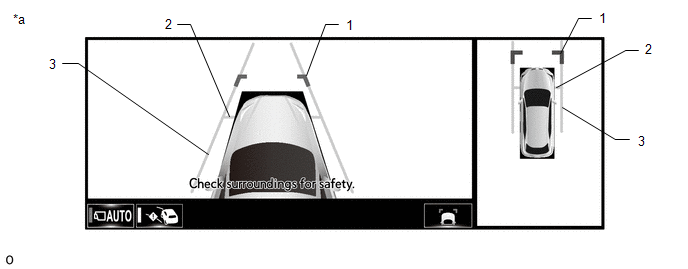

      Fig 6: Panoramic View And Side Clearance View Screen Display
      GTY787533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a When the outer rear view mirror assembly is deployed. - -
      PANORAMIC VIEW AND SIDE CLEARANCE VIEW SCREEN DESCRIPTION

      Signal Name Color
      (1) Front distance guide line Blue
      (2) Front wheel ground contact line Gray
      (3) Vehicle width parallel line Gray
    6. Panoramic view and wide rear view screen

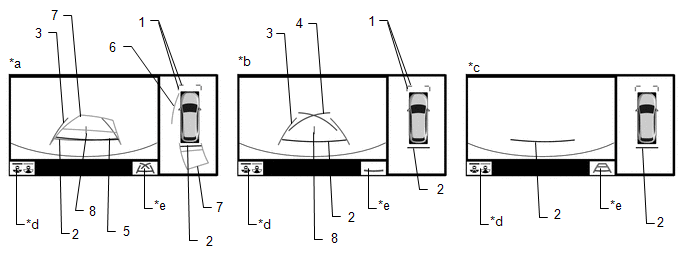

      Fig 7: Panoramic View And Wide Rear View Screen Display
      GTY774785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Estimated course line display mode *b Parking guide line display mode
      *c Distance guide line display mode *d Display mode switching button
      *e Guide line display mode switching button - -

      HINT:

      The screen changes to the panoramic view and rear view screen when the display mode switch button or rear view screen is selected.

      PANORAMIC VIEW AND WIDE REAR VIEW SCREEN DESCRIPTION

      Signal Name Color Panoramic View and Wide Rear View Screen
      Estimated course line display mode Parking guide line display mode Distance guide line display mode
      (1) Front distance guide line Blue Displayed Displayed Displayed
      (2) Rear distance guide line Red/Black Displayed Displayed Displayed
      (3) Rear vehicle width extension line Blue Displayed Displayed Not displayed
      (4) Parking guide line Blue Not displayed Displayed Not displayed
      (5) Rear distance guide line Blue Displayed Not displayed Not displayed
      (6) Side estimated course line Yellow Displayed Not displayed Not displayed
      (7) Rear estimated course line Yellow Displayed Not displayed Not displayed
      (8) Vehicle center line Blue Displayed Displayed Not displayed
    7. Panoramic view and rear view screen

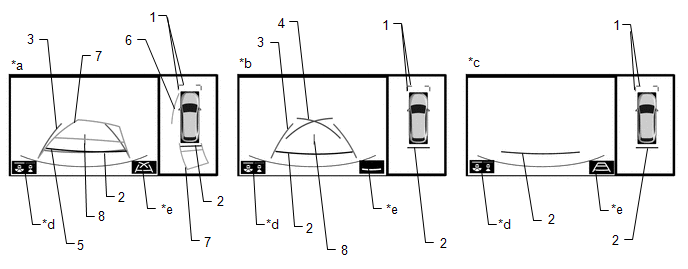

      Fig 8: Panoramic View And Rear View Screen Display
      GTY794355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Estimated course line display mode *b Parking guide line display mode
      *c Distance guide line display mode *d Guide line display mode switching button
      *e Guide line display mode switching button - -

      HINT:

      In the rear view screen, the screen display mode can be switched by pressing the guide line display mode switching button or rear view screen on the screen.

      PANORAMIC VIEW AND REAR VIEW SCREEN DESCRIPTION

      Signal Name Color Panoramic View and Rear View Screen
      Estimated course line display mode Parking guide line display mode Distance guide line display mode
      (1) Front distance guide line Blue Displayed Displayed Displayed
      (2) Rear distance guide line Red/Black Displayed Displayed Displayed
      (3) Rear vehicle width extension line Blue Displayed Displayed Not displayed
      (4) Parking guide line Blue Not displayed Displayed Not displayed
      (5) Rear distance guide line Blue Displayed Not displayed Not displayed
      (6) Side estimated course line Yellow Displayed Not displayed Not displayed
      (7) Rear estimated course line Yellow Displayed Not displayed Not displayed
      (8) Vehicle center line Blue Displayed Displayed Not displayed
    8. Side view screen

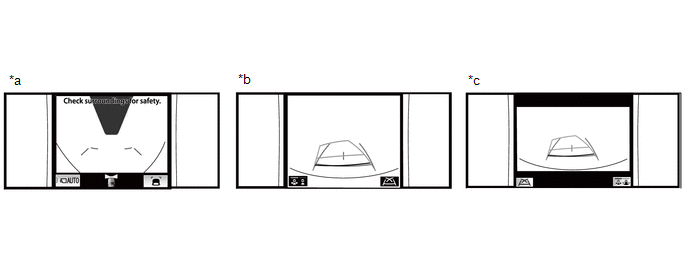

      Fig 9: Side View Screen Display
      GTY837453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Side view and wide front view screen *b Side view and rear view screen
      *c Side view and wide rear view screen - -

      HINT:

      Refer to the content of panoramic view and rear view screen and panoramic view and wide front view screen for information about the rear view and wide front view screens.

  4. Panoramic View Screen Description
    1. Manual display mode
      1. When the No. 2 combination switch assembly (panoramic view monitor main switch) is pressed with the power switch on (IG) or (READY), the panoramic view monitor system switches to a screen shown below according to the shift lever position.

        Screen Transition Chart (Manual Display Mode)

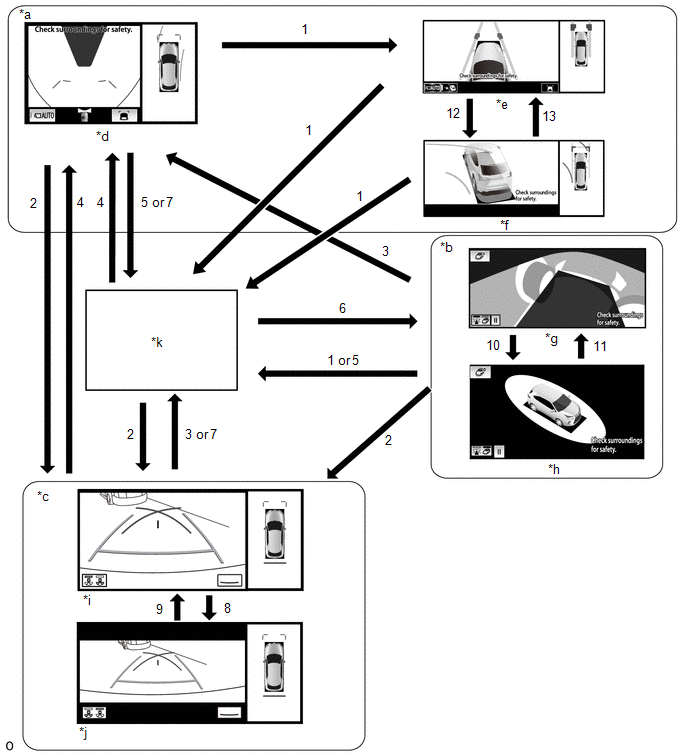

        Fig 10: Screen Transition Chart (Manual Display Mode)
        GTY822872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Shift lever not in P or R *b Shift lever in P and Intuitive parking assist system on
        *c Shift lever in R *d Panoramic view and wide front view screen
        *e Panoramic view and side clearance view screen *f Panoramic view and cornering view screen
        *g See-through view screen *h Moving view screen
        *i Panoramic view and rear view screen *j Panoramic view and wide rear view screen
        *k Navigation screen, etc. - -
        SCREEN TRANSITION CONDITIONS (MANUAL DISPLAY MODE)

        No. Screen Transition Conditions
        (1) Panoramic view monitor main switch is pressed
        (2) Shift lever is moved to R
        (3) Shift lever is moved to other than P or R
        (4) Shift lever is moved to other than P or R and operation (1) is performed
        (5) "MAP/VOICE" switches, etc. on the multi-display assembly are pressed
        (6) Operation (1) is performed with the shift lever in P
        (7) Shift lever is moved to P
        (8) Switch image mode button or rear view screen is selected
        (9) Switch image mode button or wide rear view screen is selected
        (10) Moving view switch button is selected
        (11) See through view switch button is selected
        (12) When the steering wheel is moved to the approximately 180° or more from the straight condition
        (13) The steering wheel is moved approximately 90° or less from the straight condition

        HINT:

        If the panoramic view monitor main switch is pressed at a vehicle speed of approximately 12 km/h (7 mph) or lower, the panoramic view monitor system screen is displayed. If the vehicle speed exceeds approximately 12 km/h (7 mph), the display switches to the navigation screen or information settings screen.

    2. Screen transition chart (automatic display mode)
      1. When the shift lever is not in P or R, in addition to switching screens by pressing the No. 2 combination switch assembly (panoramic view monitor main switch), the automatic display mode can be selected by pressing the automatic display mode switching button.

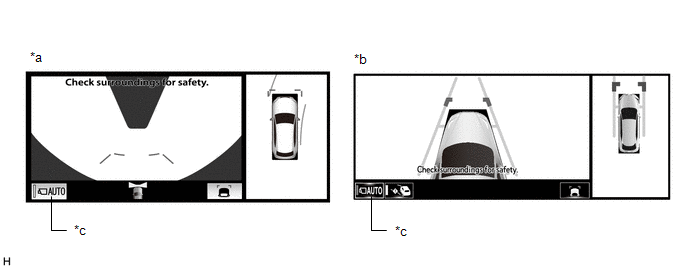

        Fig 11: Automatic Display Mode Switching Button
        GTY804079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Panoramic view and wide front view screen *b Panoramic view and side clearance view screen
        *c Automatic display mode - -
        Automatic Display Mode Switching Button
        (Indicator in Button)        		 Screen Switching Mode
        ON
        (Illuminated)        		 Automatic display mode
        OFF
        (Not illuminated)        		 Manual display mode

        HINT:

        • In the automatic display mode, press the No. 2 combination switch assembly (panoramic view monitor main switch) or panel switch to switch screens in the same way as the manual display mode.
        • When switching to the navigation screen, etc. in the automatic display mode, the display switches to the screen that was displayed last. However, the display switches to the panoramic view and wide front view screen if the shift lever is not in P or R after the power switch is turned from off to on (IG).
      2. The automatic display mode automatically switches the display according to the vehicle status.

        Screen Transition Chart (Automatic Display Mode)

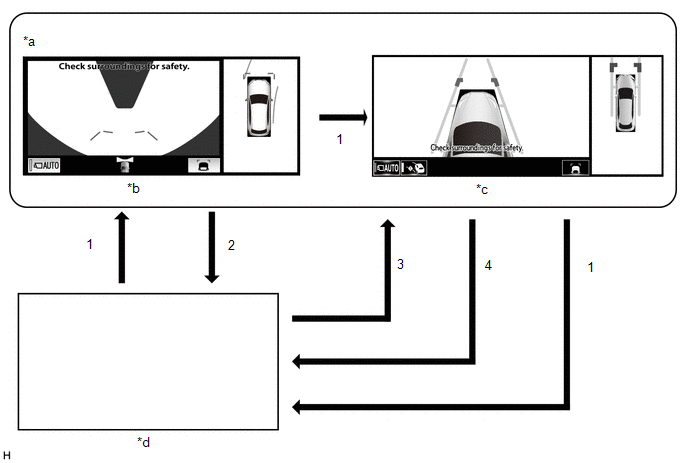

        Fig 12: Screen Transition Chart (Automatic Display Mode)
        GTY822535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Shift lever not in P or R *b Panoramic view and wide front view screen
        *c Panoramic view and side clearance view screen *d Navigation screen, etc.
        SCREEN TRANSITION CONDITIONS (AUTOMATIC DISPLAY MODE)

        No. Screen Transition Conditions
        (1) No. 2 combination switch assembly (panoramic view monitor main switch) is pressed
        (2) Current location switches, etc. on the multi-display are pressed
        (3) Vehicle speed changes from above approximately 10 km/h (6 mph) to approximately 10 km/h (6 mph) or lower. The screen that was last displayed is displayed on the multi-display assembly.*
        (4) Vehicle speed changes from approximately 10 km/h (6 mph) or lower to above approximately 10 km/h (6 mph)

        () *: The panoramic view and wide front view screen is the first screen displayed after the power switch was turned off.

    3. Panoramic View Zoom Function
      1. When detail within the image on the panoramic view screen is too small and difficult to see, the user can magnify the image by selecting one of the 4 areas on the panoramic view screen.

        Screen Transition

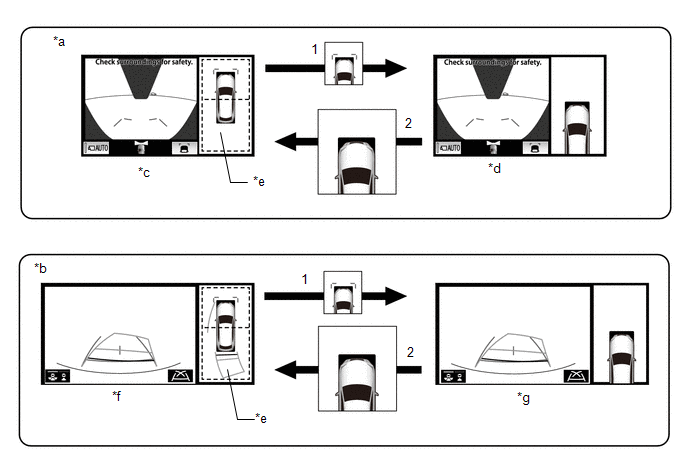

        Fig 13: Panoramic View Zoom Function Screen Transitions
        GTY829745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Panoramic view and wide front view screen displayed while shift lever is not in P or R *b Panoramic view and rear view screen displayed
        *c Panoramic view and wide front view screen *d Panoramic view and wide front view screen (Front left view magnified)
        *e Panoramic view screen *f Panoramic view and rear view screen
        *g Panoramic view and rear view screen (Front left view magnified) - -
        SCREEN TRANSITION CONDITIONS

        No. Screen Transition Conditions
        (1) Any of the 2 areas on the panoramic view screen is selected while the vehicle speed is approximately 12 km/h (7 mph) or less and the Intuitive parking assist system is turned on.
        (2) The remote touch switch is pressed on the panoramic view zoom screen, or either of the following conditions is met:
        • The vehicle speed changes from approximately 12 km/h (7 mph) or less to over approximately 12 km/h (7 mph).
        • The Intuitive parking assist system is turned off.
    4. When the outer rear view mirror assembly is retracted
      1. When the outer rear view mirrors are retracted, the screen changes according to the current screen display, as follows.

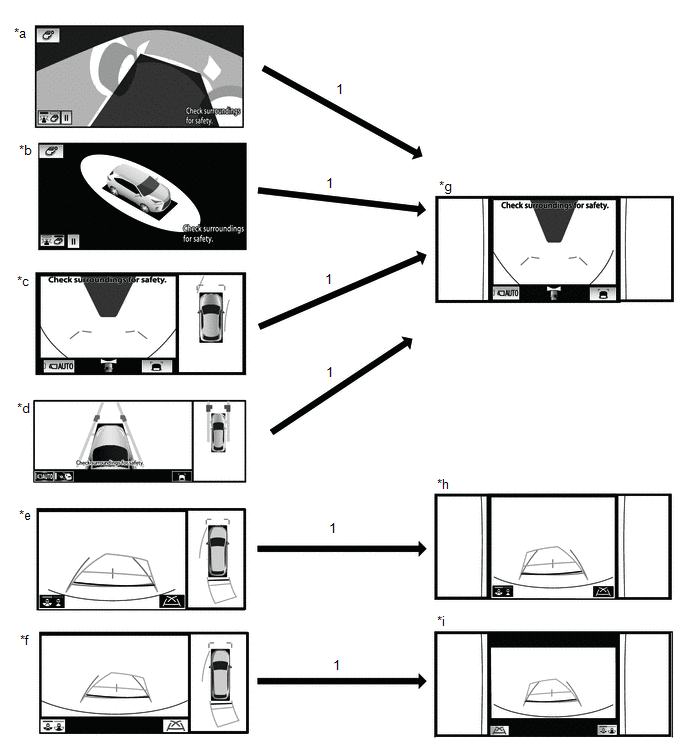

        Screen Transition

        Fig 14: Screen Transition Description
        GTY777320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a See through view screen *b Moving view screen
        *c Panoramic view and wide front view screen *d Panoramic view and side clearance view screen
        *e Panoramic view and rear view screen *f Panoramic view and wide rear view screen
        *g Side view and wide front view screen *h Side view and rear view screen
        *i Side view and wide rear view screen - -
        SCREEN TRANSITION CONDITIONS

        No. Screen Transition Conditions
        (1) When outer rear view mirror assembly is retracted
  5. OPERATION EXPLANATION
    1. The reverse position signal is sent from the shift lever position switch to the parking assist ECU when the shift lever is moved to R.
    2. An appropriate steering angle and timing information can be provided for the driver. This is based on the information from the steering angle sensor signal and the vehicle angle data signal that are sent to the parking assist ECU.

      HINT:

      The steering angle sensor signal is used to control parking assist only for estimated guide line mode.

  6. COMMUNICATION SYSTEM OUTLINE
    1. CAN communication system
      1. The panoramic view monitor system uses CAN communication for data communications between the parking assist ECU and each ECU.
      2. If a problem occurs in the CAN communication line, the parking assist ECU outputs a CAN communication malfunction DTC. (To check, use the Techstream.)

        Refer to DTC CHECK / CLEAR [09/2017 - ]

      3. If a problem occurs in the CAN communication line, the parking assist ECU outputs a CAN communication malfunction DTC. (To check, use the multi-display assembly diagnosis screen.)

        Refer to DIAGNOSIS SYSTEM [09/2017 - ]

      4. If a CAN communication line malfunction DTC is output, repair the malfunction in the communication line and troubleshoot the panoramic view monitor system when data communication is normal.
      5. Since the CAN communication line has its own length and route, it cannot be repaired temporarily with a bypass wire, etc.
  7. VIDEO SIGNALS
    1. Video signal circuit
      Fig 15: Video Signal Circuit
      GTY796574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Video signals from the front television camera assembly are input into the parking assist ECU via analog communication lines (vehicle wire harness).
      2. Video signals from the side television camera assembly LH are input into the parking assist ECU via analog communication lines (vehicle wire harness).
      3. Video signals from the side television camera assembly RH are input into the parking assist ECU via analog communication lines (vehicle wire harness).
      4. Video signals from the rear television camera assembly are input into the parking assist ECU via analog communication lines (vehicle wire harness).
      5. Video signals from the parking assist ECU are input into the multi-display assemly via GVIF cable.
    2. Screen display
      1. Video signals input from each camera are processed in the parking assist ECU and displayed on the multi-display assembly as the panoramic view monitor system screen.
  8. DIAGNOSTIC FUNCTION OUTLINE
    1. This panoramic view monitor system has a diagnostic function displayed in the multi-display assembly. This function enables the calibration (adjustment and verification) of the panoramic view monitor system.

      Refer to DIAGNOSIS SYSTEM [09/2017 - ]

    2. The panoramic view monitor system can check the following items by using the Techstream.
      Item Proceed to
      DTC Refer to DTC CHECK / CLEAR [09/2017 - ]
      Data List / Active Test Refer to DATA LIST / ACTIVE TEST [09/2017 - ]
  9. CALIBRATION
    1. Use the panoramic view monitor system diagnosis screen for calibration and checking of the panoramic view monitor system.

      Refer to DIAGNOSIS SYSTEM [09/2017 - ]

      NOTE:

      Part replacement and work performed during servicing may require calibration of the panoramic view monitor system and other systems.

      Refer to CALIBRATION [09/2017 - 05/2019] , or refer to CALIBRATION [05/2019 - ]

scientia non olet · About LEMON Manuals
