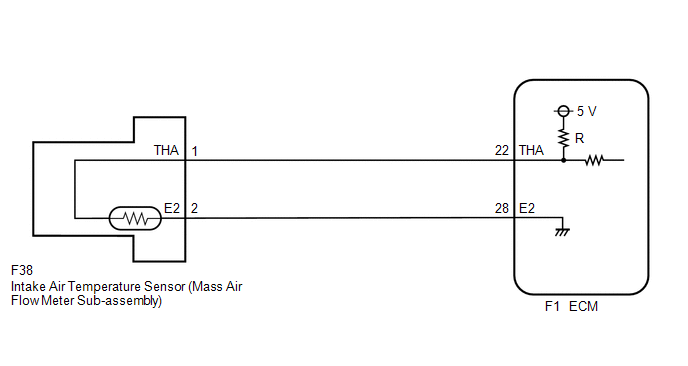

DTC P0112: Intake Air Temperature Circuit Low Input; DTC P0113: Intake Air Temperature Circuit High Input [09/2014 - 11/2017]: Wiring Diagram

GTY501393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
