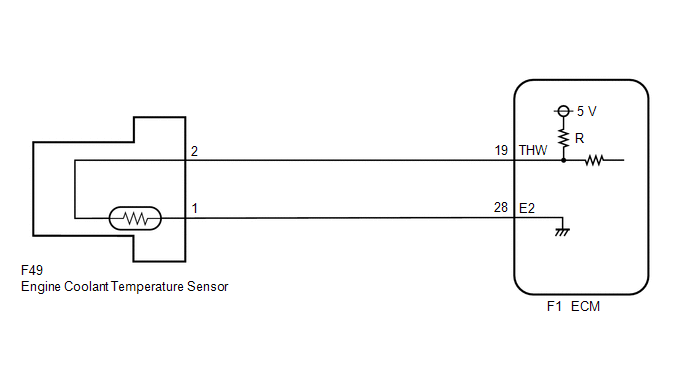

DTC P0115: Engine Coolant Temperature Circuit; DTC P0117: Engine Coolant Temperature Circuit Low Input; DTC P0118: Engine Coolant Temperature Circuit High Input [09/2014 - 11/2017]: Wiring Diagram

GTY518357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
