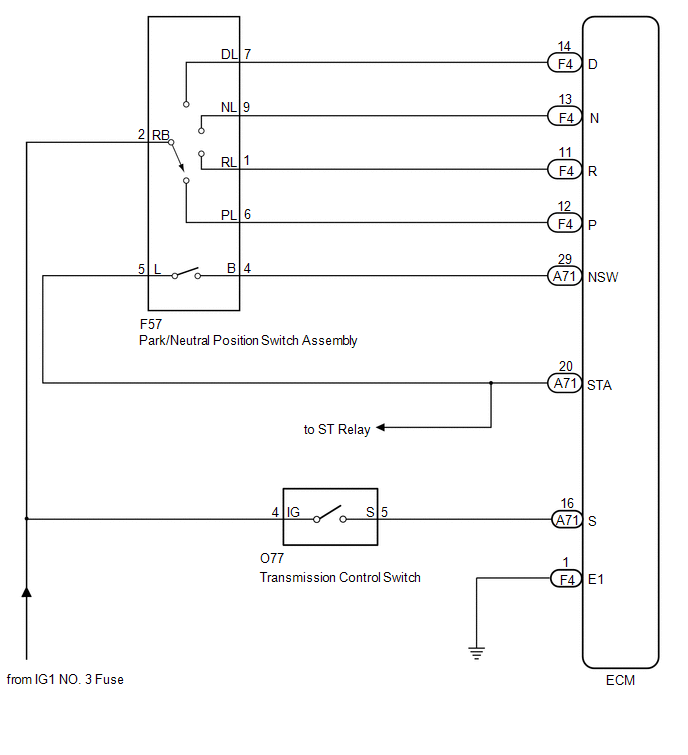

DTC P0705: Transmission Range Sensor Circuit (PRNDL Input) [09/2014 - 10/2015]: Wiring Diagram

GTY514503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
