Removal [09/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. DRAIN AUTOMATIC TRANSMISSION FLUID

    Refer to PROCEDURE - Step 1

  2. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    Refer to REMOVAL [09/2014 - 11/2017] , or refer to REMOVAL [11/2017 - ]

  3. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR

    Refer to PROCEDURE - Step 2

  4. SUPPORT AUTOMATIC TRANSMISSION WITH TRANSFER ASSEMBLY

    Refer to PROCEDURE - Step 12 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 13 [11/2017 - 11/2021] , or refer to PROCEDURE - Step 13 [11/2021 - ]

  5. REMOVE REAR ENGINE MOUNTING MEMBER
    1. Remove the 4 bolts and separate the rear engine mounting member from the vehicle body.

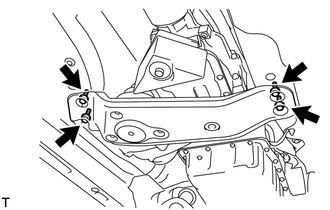

      GTY457565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 nuts and rear engine mounting member from the automatic transmission with transfer assembly.

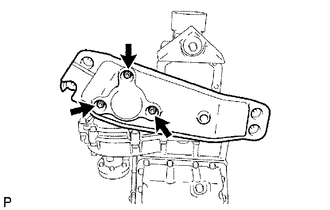

      GTY457564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE TRANSFER DYNAMIC DAMPER
    1. Remove the 2 bolts and transfer dynamic damper from the transfer case sub-assembly.

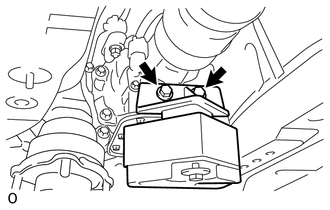

      GTY415996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE TRANSFER OIL PAN SUB-ASSEMBLY
    1. Remove the 9 bolts from the transfer case sub-assembly.

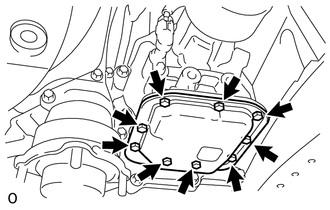

      GTY395611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Insert the blade of an oil pan seal cutter between the transfer oil pan sub-assembly and transfer case sub-assembly. Cut through the sealer and remove the transfer oil pan sub-assembly.

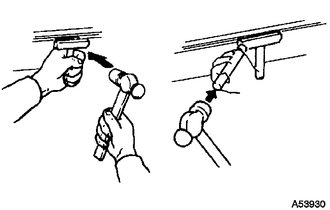

      GTY417166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the contact surface of the transfer oil pan sub-assembly.

    3. Remove the transfer oil cleaner magnet from the transfer oil pan sub-assembly.
      NOTE:
      • Clean the inside of the transfer oil pan sub-assembly thoroughly. Remove all metal shavings, sludge and any other foreign objects.
      • Remove any metal shavings from the transfer oil cleaner magnet.
      GTY466192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transfer Oil Cleaner Magnet
  8. REMOVE TRANSFER CONTROL VALVE BODY ASSEMBLY
    1. Remove the 4 bolts from the transfer control valve body assembly.

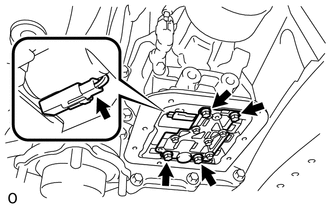

      GTY467352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the transfer control solenoid assembly connector and remove the transfer control valve body assembly from the transfer case sub-assembly.
  9. REMOVE TRANSFER CONTROL SOLENOID ASSEMBLY
    1. Remove the bolt, solenoid lock plate and transfer control solenoid assembly from the transfer control valve body assembly.

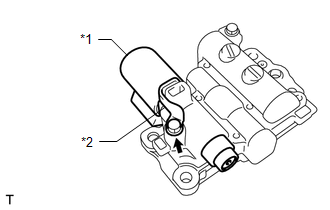

      GTY497593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transfer Control Solenoid Assembly
      *2 Solenoid Lock Plate
