Power Steering System - Diagnostics - Introduction
>>
Power Steering System
>>

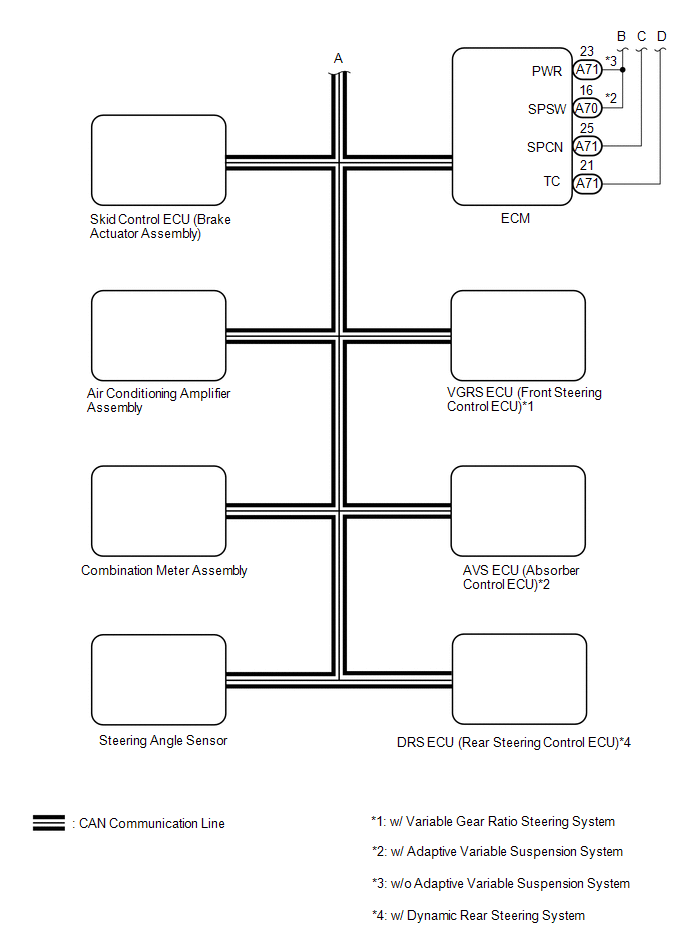

System Diagram [09/2014 - 10/2015]
>>
System Diagram [09/2014 - 10/2015]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [09/2014 - 10/2015]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
