Safety Connect System - Diagnostics - Introduction
>>
Safety Connect System
>>
System Diagram [09/2014 - 11/2017]
>>
System Diagram [09/2014 - 11/2017]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [09/2014 - 11/2017]

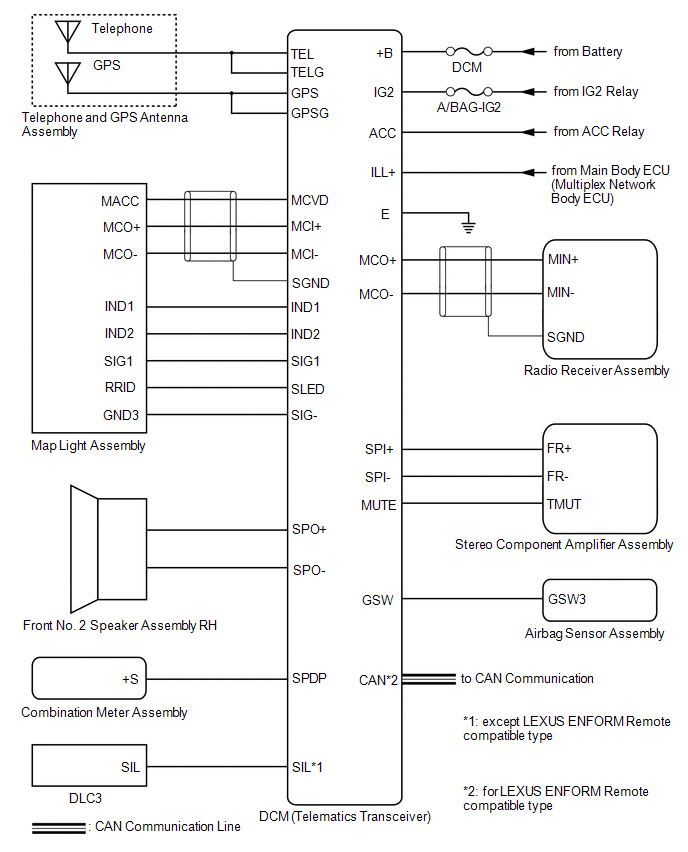

Fig 1: Safety Connect System Diagram
