Rear Power Window RH does not Operate with Rear Power Window Switch RH [03/2014 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Main Body / Data List.
5. Read the Data List according to the display on the Techstream.
   MAIN BODY (MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU))



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Communication RR-Door Motor	Connection status between power window regulator motor (for rear RH) and main body ECU (multiplex network body ECU) / OK or STOP	OK: Normal communication STOP: Communication stopped	-

   OK

   On the Techstream screen, OK is displayed.

NG → See step   8

OK: Go to next step

1. Enter the following menus: Body Electrical / RR-Door Motor / Data List.
2. Read the Data List according to the display on the Techstream.
   RR-DOOR MOTOR (POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR REAR RH SIDE))



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   RR Door P/W Up SW	Rear RH side power window manual up switch signal / ON or OFF	ON: Rear RH door power window manual up switch operated OFF: Rear RH door power window manual up switch not operated	-
   RR Door P/W Down SW	Rear RH side power window manual down switch signal / ON or OFF	ON: Rear RH door power window manual down switch operated OFF: Rear RH door power window manual down switch not operated	-

   OK

   On the Techstream screen, ON or OFF is displayed accordingly.

NG → See step   4

OK: Go to next step

1. Enter the following menus: Body Electrical / RR-Door Motor / Active Test.
2. Perform the Active Test according to the display on the Techstream.
   RR-DOOR MOTOR (POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR REAR LH SIDE))



   Tester Display	Test Part	Control Range	Diagnostic Note
   Power Window	Power window	OFF / UP / DOWN	-

   OK

   Rear RH power window operates normally.

   WARNING:

   Be careful to avoid injuries as this test causes vehicle parts to move. During the Active Test, the jam protection function will not operate.

NG → See step   7

OK → See step   9

1. Remove the power window regulator switch assembly (for rear RH side). Refer to REMOVAL [03/2014 - ] .

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   2 (U) - 5 (GND)	Auto up or up position	Below 1 Ω
   10 (D) - 5 (GND)	Auto down or down position	Below 1 Ω

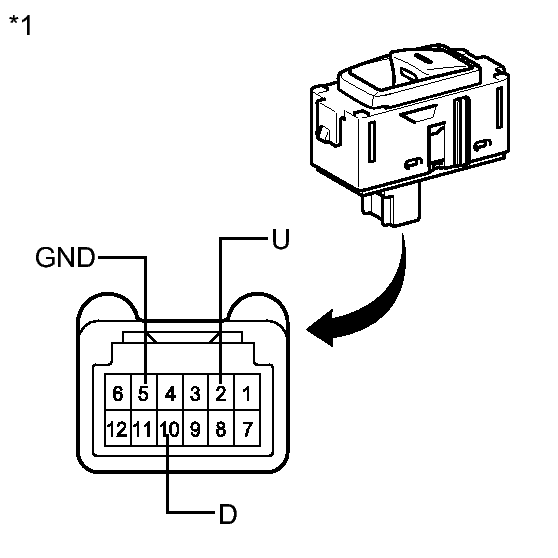

   TEXT IN ILLUSTRATION



   *1	Component without harness connected (Power Window Regulator Switch Assembly (for Rear RH Side))

NG → See step   6

OK: Go to next step

1. Disconnect the power window regulator motor assembly (for rear RH side) connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K3-2 (U) - K2-10 (UP1)	Always	Below 1 Ω
   K3-10 (D) - K2-7 (DWN1)	Always	Below 1 Ω
   K3-5 (GND) - Body ground	Always	Below 1 Ω
   K3-2 (U) - Body ground	Always	10 kΩ or higher
   K3-10 (D) - Body ground	Always	10 kΩ or higher
   K2-10 (UP1) - Body ground	Always	10 kΩ or higher
   K2-7 (DWN1) - Body ground	Always	10 kΩ or higher

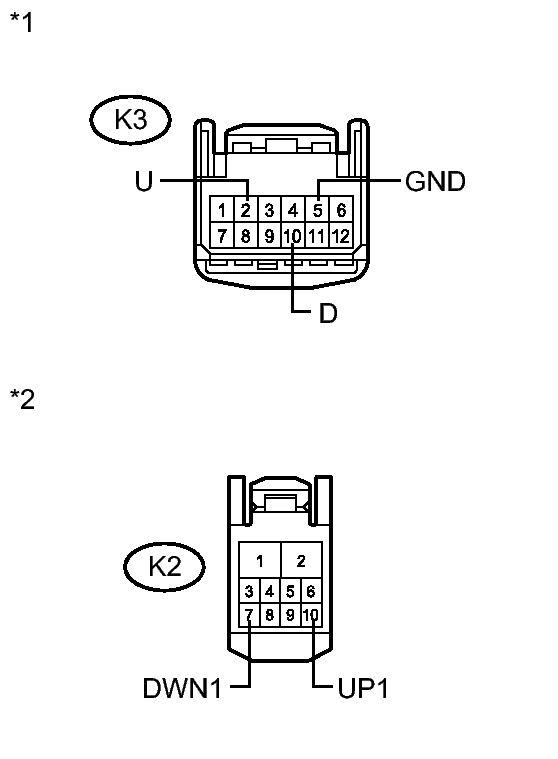

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Power Window Regulator Switch Assembly (for Rear RH Side))
   *2	Front view of wire harness connector (to Power Window Regulator Motor Assembly (for Rear RH Side))

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   7
