Diagnosis System [03/2014 - ]

WARNING: This page is about a different variant/trim than selected.
  1. DESCRIPTION

    Active torque control 4WD system data can be read in the Data Link Connector 3 (DLC3) of the vehicle. When the system seems to be malfunctioning, use the Techstream to check for malfunctions and perform repairs. Therefore when there seems to be a problem with the active torque control 4WD, use the Techstream or SST to check and troubleshoot it.

  2. CHECK DATA LINK CONNECTOR 3 (DLC3)
    1. Check the DLC3. Refer to GENERAL INFORMATION [03/2014 - ]
  3. WARNING LIGHT
    1. Furthermore, the master warning light in the combination meter assembly will illuminate and a warning message will be displayed on the multi-information display to inform the driver.
      Condition Master Warning Light Multi-information Display
      AWD system malfunction Illuminates CHECK AWD SYSTEM

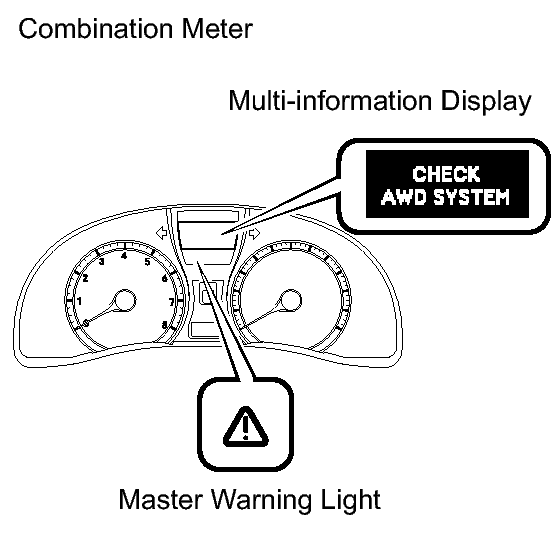

      Fig 1: Identifying Multi-information Display
      GTY269443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
