DTC C1A4B: Stop Light Relay Circuit [03/2014 - ]: Wiring Diagram

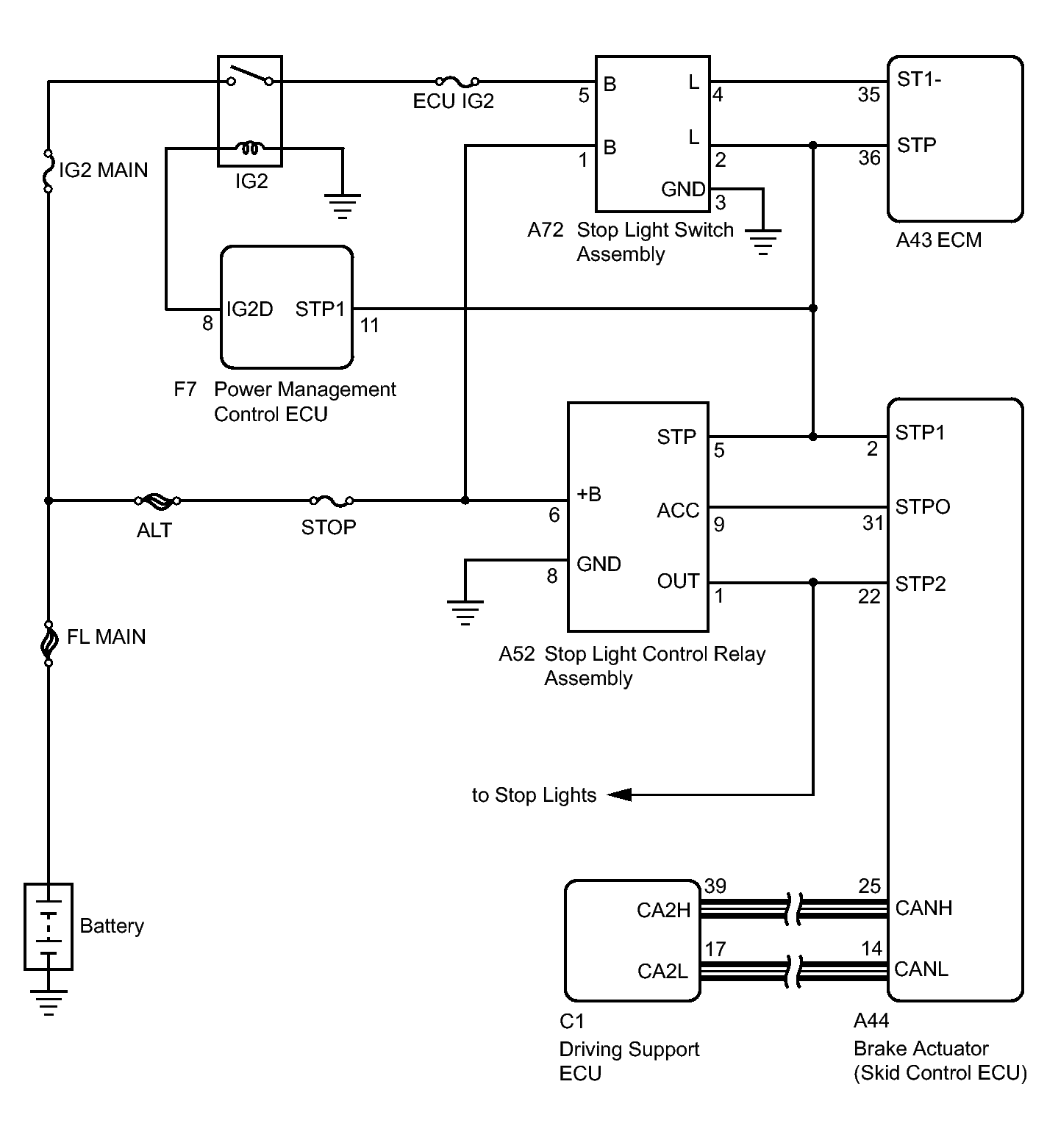

Fig 1: Skid Control ECU Wiring Diagram
GTY468846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
