Conditioning For Sensor Testing
HINT:
Perform the operation with the engine speeds and time durations described below prior to checking the waveforms of the air fuel ratio sensor and heated oxygen sensor. This is in order to activate the sensors sufficiently to obtain the appropriate inspection results.

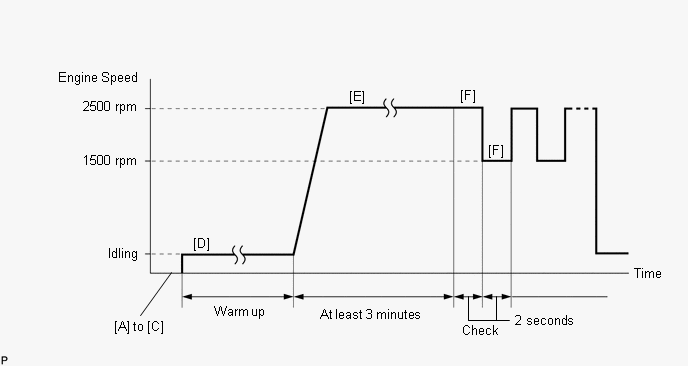

- (a) Connect the Techstream to the DLC3 [A].
- (b) Turn the power switch on (IG) and turn the Techstream on [B].
- (c) Put the engine in inspection mode (maintenance mode) (See article. Refer to INSPECTION MODE PROCEDURE [08/2014 - ] ) [C].
- (d) Start the engine and warm it up with all the accessories switched off until the engine coolant temperature stabilizes [D].
- (e) Enter the following menus: Powertrain / Engine and ECT / Data List / Gas AF Control / AFS Voltage B1S1 and O2S B1S2.
- (f) Run the engine at an engine speed of 2500 rpm for at least 3 minutes [E].
HINT:
During charging control, the engine speed is set at idle. Therefore, the engine speed does not increase when depressing the accelerator pedal. In this case, perform step [E] after charging control has completed.
- (g) While running the engine at 2500 rpm for 2 seconds and 1500 rpm for 2 seconds, check the waveforms of the air fuel ratio and heated oxygen sensors using the Techstream [F].
HINT:
- If either of the voltage outputs of the air fuel ratio or heated oxygen sensor does not fluctuate, or there is noise in the waveform of either sensor, the sensor may be malfunctioning.
- If the voltage outputs of both the sensors remain lean or rich, the air fuel ratio may be extremely lean or rich. In such cases, perform the Control the Injection Volume Active Test using the Techstream.

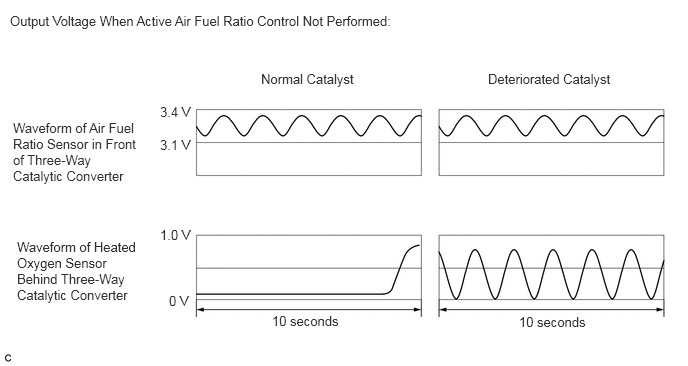

- If the three-way catalytic converter has deteriorated, the heated oxygen sensor (located behind the three-way catalytic converter) output voltage fluctuates up and down frequently, even under normal driving conditions (active air fuel ratio control is not performed).
